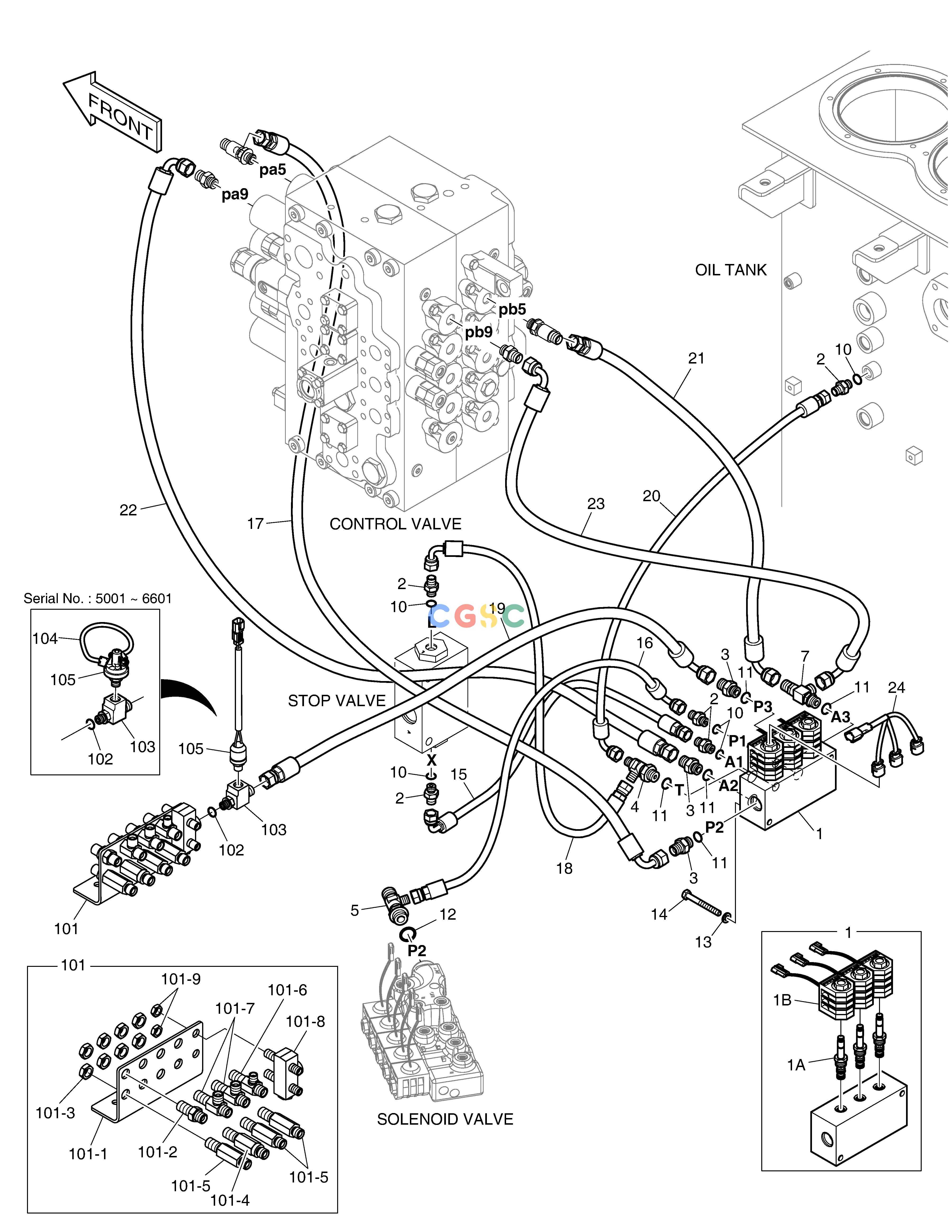

斗山零件查询PILOT PIPING - TWO PUMP DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
796 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-00824
|
[-] |
|
|
| 1. |
426-00246A
|
[1] |
VALVE;SOLENOID
|
|
| 10. |
S8000111
|
[5] |
O-RING
|
|
| 101. |
430216-00006
|
[1] |
|
|
| 101-1. |
K1000354
|
[1] |
PLATE
|
|
| 101-2. |
181-00078D1
|
[1] |
ADAPTER
|
|
| 101-3. |
121-00010D1
|
[8] |
NUT
|
|
| 101-4. |
420-00352D1
|
[1] |
VALVE,SHOCKLESS
|
|
| 101-5. |
DS2410009
|
[3] |
ADAPTER
|
|
| 101-6. |
181-00086D1
|
[1] |
TEE
|
|
| 101-7. |
181-00086D2
|
[2] |
TEE
|
|
| 101-8. |
420-00476
|
[1] |
VALVE;SHUTTLE
|
|
| 101-9. |
121-00010D7
|
[2] |
NUT
|
|
| 102. |
S8000111
|
[1] |
O-RING
|
|
| 103. |
181-00760
|
[1] |
TEE
|
|
| 104. |
530-00067
|
[1] |
HARNESS
|
|
| 105. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
| 105. |
301413-00340
|
[1] |
|
|
| 11. |
S8000141
|
[5] |
O-RING
|
|
| 12. |
S8000181
|
[1] |
O-RING
|
|
| 13. |
S5102503
|
[2] |
. WASHER
|
|
| 14. |
S0556766
|
[2] |
O-RING
|
|
| 15. |
DS2093341
|
[1] |
HOSE
|
|
| 16. |
DS2093161
|
[1] |
HOSE
|
|
| 17. |
DS2093097
|
[1] |
HOSE
|
|
| 18. |
DS2093028
|
[1] |
HOSE
|
|
| 19. |
DS2093019
|
[1] |
HOSE
|
|
| 1A. |
K9001354
|
[3] |
SOLENOID VALVE
|
|
| 1B. |
1.519-00001
|
[3] |
COIL
|
|
| 2. |
2181-1126D14
|
[5] |
ADAPTER
|
|
| 20. |
DS2093074
|
[1] |
HOSE
|
|
| 21. |
DS2093184
|
[1] |
HOSE
|
|
| 22. |
DS2093155
|
[1] |
HOSE
|
|
| 23. |
DS2091070
|
[1] |
HOSE
|
|
| 23. |
DS2091326
|
[1] |
|
|
| 24. |
310207-00234
|
[1] |
|
|
| 3. |
2181-1126D7
|
[3] |
ADAPTER
|
|
| 4. |
2181-1951D7
|
[1] |
TEE
|
|
| 5. |
2181-1951D19
|
[1] |
TEE
|
|
| 7. |
181-00811
|
[1] |
TEE;SHUTTLE
|
|
