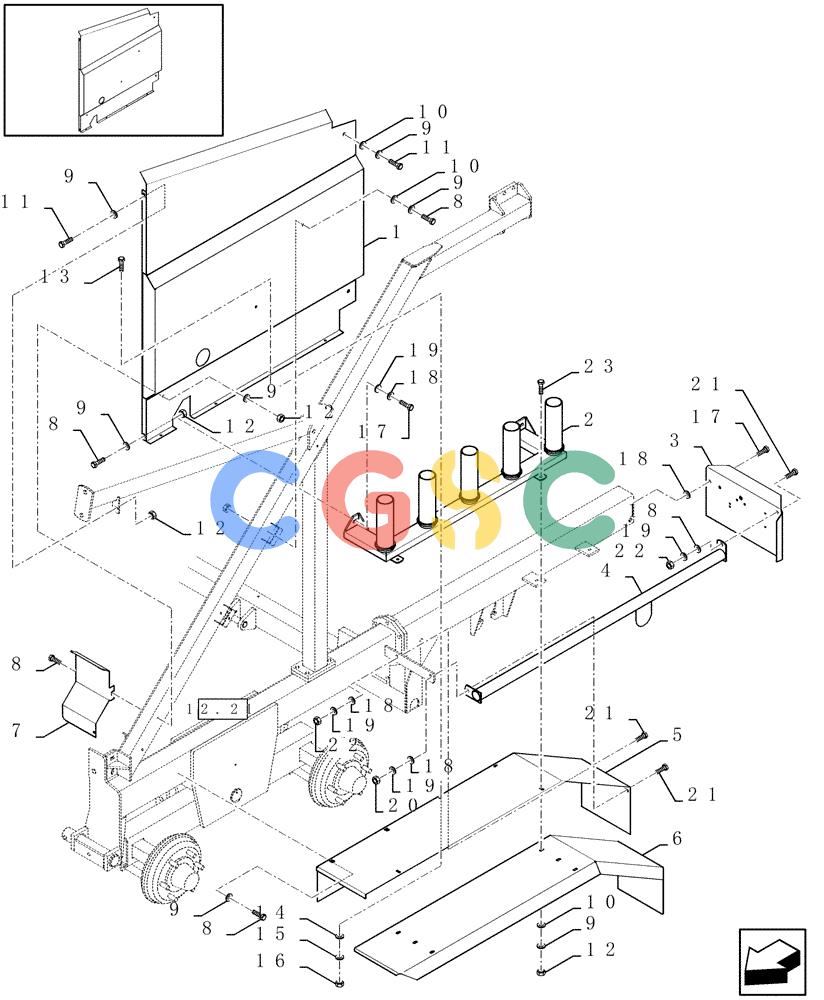

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (08.22[01]) - SHIELDS, LH Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
268 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84820560
|
[1] |
SHIELD
|
PLO
|
| 2. |
84820541
|
[1] |
HOLDER
|
PLO
, Serial Range: -C667
|
| 2. |
84820595
|
[1] |
HOLDER
|
PLO
, Start Serial: D668
|
| 3. |
84821119
|
[1] |
SUPPORT
|
PLO
|
| 4. |
84821122
|
[1] |
ARM
|
PLO
|
| 5. |
84820555
|
[1] |
FENDER
|
PLO
|
| 6. |
84820553
|
[1] |
FENDER
|
PLO
|
| 7. |
84820557
|
[1] |
SHIELD
|
PLO
|
| 8. |
80120103
|
[12] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
ZED
M8x16 Superseded by part number: 16043224
|
| 9. |
80322358
|
[18] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 10. |
80140041
|
[7] |
WASHER
|
ZED
9MM Superseded by part number: 87033737
|
| 11. |
120104
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 13. |
86508568
|
[4] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 14. |
80140040
|
[4] |
WASHER
|
ZED
6.5MM Superseded by part number: 140040
|
| 15. |
80322357
|
[4] |
LOCK WASHER,Belleville, M6
|
ZED
6MM Superseded by part number: 322357
|
| 16. |
15896221
|
[4] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
| 17. |
43138
|
[5] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 18. |
80140045
|
[8] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 19. |
80378244
|
[6] |
LOCK WASHER
|
ZED
10.5MM Superseded by part number: 378244
|
| 20. |
80043140
|
[1] |
BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
ZED
Superseded by part number: 43140
|
| 21. |
100016
|
[3] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 22. |
80043139
|
[2] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 23. |
80043127
|
[2] |
SCREW,M8 x 25mm
|
ZED
M8x24 Superseded by part number: 43127
|
| 12. |
89706690
|
[5] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
