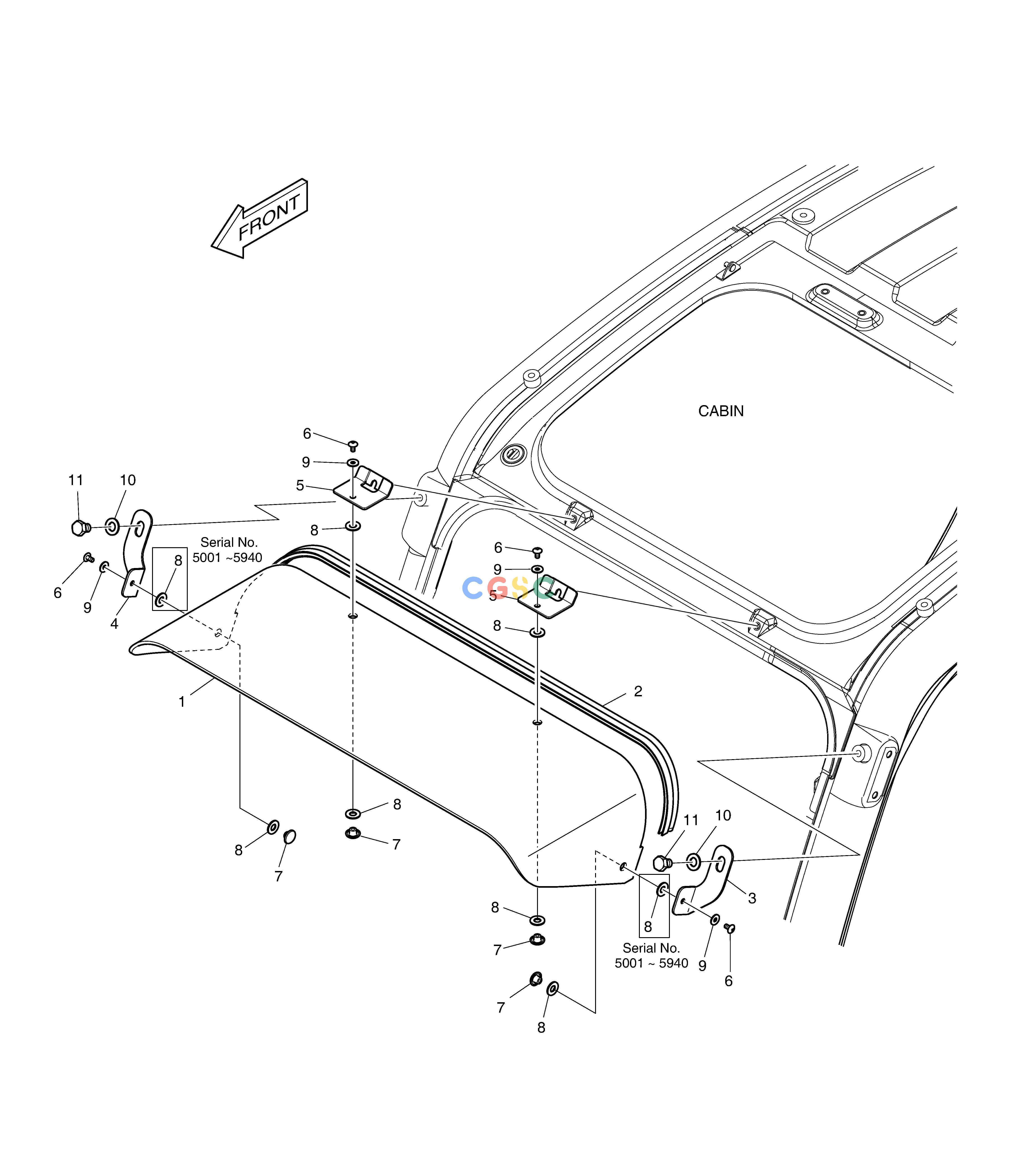

斗山零件查询RAIN SHIELD DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
181 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002561B
|
[-] |
RAIN SHIELD
|
|
| 1. |
159-00294B
|
[1] |
COVER;RAIN SHIELD
|
159-00294C
|
| 1. |
159-00294C
|
[1] |
COVER;RAIN SHIELD
|
|
| 10. |
2114-1898D6
|
[2] |
WASHER
|
|
| 11. |
2120-2166D37
|
[2] |
BOLT
|
|
| 2. |
162-00040A
|
[1] |
STRIP;WEATHER
|
|
| 3. |
K1002574A
|
[1] |
BRACKET(L.H)
|
|
| 4. |
K1002575A
|
[1] |
BRACKET(R.H)
|
|
| 5. |
195-03374B
|
[2] |
BRACKET;RAIN SHIELD
|
195-03374C
|
| 5. |
195-03374C
|
[2] |
BRACKET;RAIN SHIELD
|
|
| 6. |
2120-2166D52
|
[4] |
. BOLT
|
|
| 7. |
621-03103
|
[4] |
COVER;ROOF HANDLE
|
|
| 8. |
161-00639
|
[8] |
RUBBER;ROOF HANDLE
|
|
| 8. |
161-00639
|
[6] |
RUBBER;ROOF HANDLE
|
|
| 9. |
2114-1898D5
|
[4] |
WASHER
|
|
