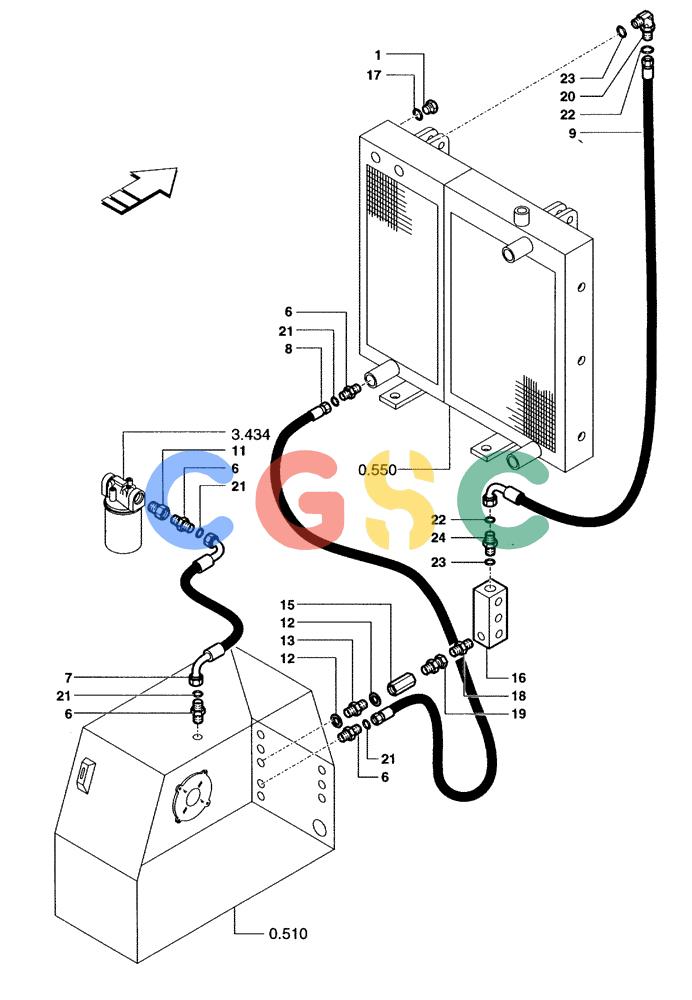

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (2.330[01B]) - HYDROSTATIC DRIVE COOLING PIPE DC80 - DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
996 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76598434 | [1] | PLUG | MAC |
| 6. | 76591006 | [4] | HYD CONNECTOR | MAC |
| 7. | 76598435 | [1] | FLEXIBLE HOSE | MAC |
| 8. | 76605493 | [1] | FLEXIBLE HOSE | MACDC80 |
| 8. | 76605903 | [1] | FLEXIBLE HOSE | MACDC100 |
| 9. | 76598436 | [1] | FLEXIBLE HOSE | MACDC80 |
| 9. | 76605904 | [1] | FLEXIBLE HOSE | MACDC100 |
| 11. | 76591011 | [1] | HYD CONNECTOR | MAC |
| 12. | 76591012 | [2] | GASKET | MAC |
| 13. | 76591013 | [1] | HYD CONNECTOR | MAC |
| 15. | 76591015 | [1] | HYDRAULIC VALVE | MAC |
| 16. | 76598437 | [1] | HYD CONNECTOR | MAC |
| 17. | 76590768 | [1] | GASKET | NH Superseded by part number: 79023516 |
| 18. | 76590992 | [1] | HYD CONNECTOR | MAC |
| 19. | 76598438 | [1] | HYD CONNECTOR | MAC |
| 20. | 76605491 | [1] | HYD CONNECTOR | MAC |
| 21. | 76596049 | [4] | SEAL | MAC- O'RING |
| 22. | 76596050 | [2] | SEAL | MAC- O'RING |
| 23. | 76590776 | [2] | O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro | MAC Superseded by part number: 14457780 |
