沃尔沃零件查询L220D EngineSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
364 次

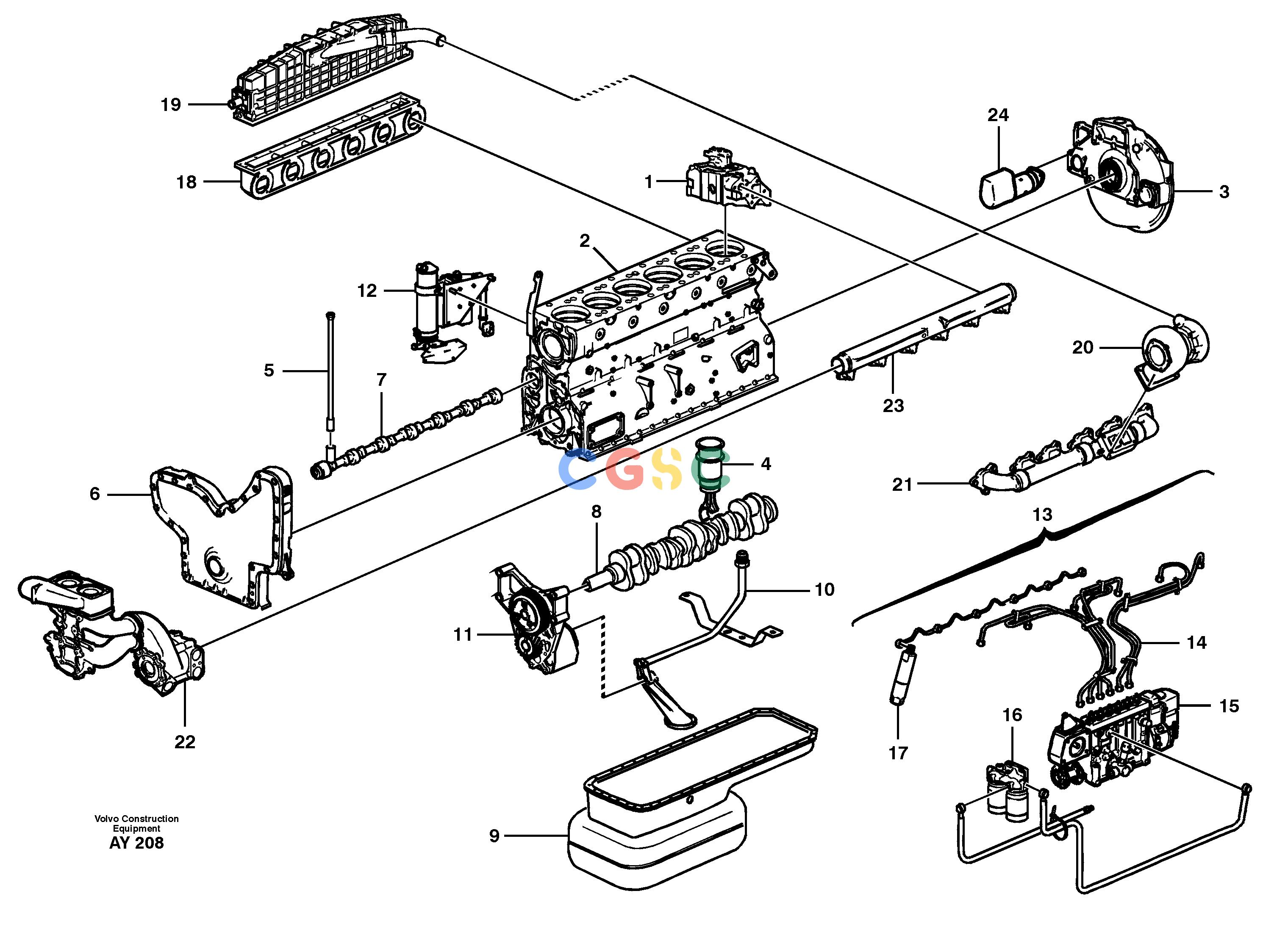

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE15004350
|
[1] |
Engine
|
TD122KLE
|
| 1. |
|
[1] |
Cylinder head
|
|
| 2. |
|
[1] |
Cylinder block
|
|
| 3. |
|
[1] |
Flywheel housing
|
|
| 4. |
|
[1] |
Cylinder liner
|
|
| 5. |
|
[1] |
Valve mechanism
|
|
| 6. |
|
[1] |
Timing gear casing
|
|
| 7. |
|
[1] |
Camshaft
|
|
| 8. |
|
[1] |
Crankshaft
|
|
| 9. |
|
[1] |
Oil sump
|
|
| 10. |
|
[1] |
Lubricating system
|
|
| 11. |
|
[1] |
Oil pump
|
|
| 12. |
|
[1] |
Oil-cooler and filter
|
|
| 13. |
|
[1] |
Fuel pipes
|
|
| 14. |
|
[1] |
Delivery pipe
|
|
| 15. |
|
[1] |
Injection pump
|
|
| 16. |
|
[1] |
Fuel filter
|
|
| 17. |
|
[1] |
Injector
|
|
| 18. |
|
[1] |
Inlet manifold
|
|
| 19. |
|
[1] |
Intercooler
|
|
| 20. |
|
[1] |
Turbocharger
|
|
| 21. |
|
[1] |
Exhaust manifold
|
|
| 22. |
|
[1] |
Water pump and
|
|
| |
|
[1] |
Thermostat Housing
|
|
| 23. |
|
[1] |
Water pipe
|
|
| 24. |
|
[1] |
Starter motor
|
|
