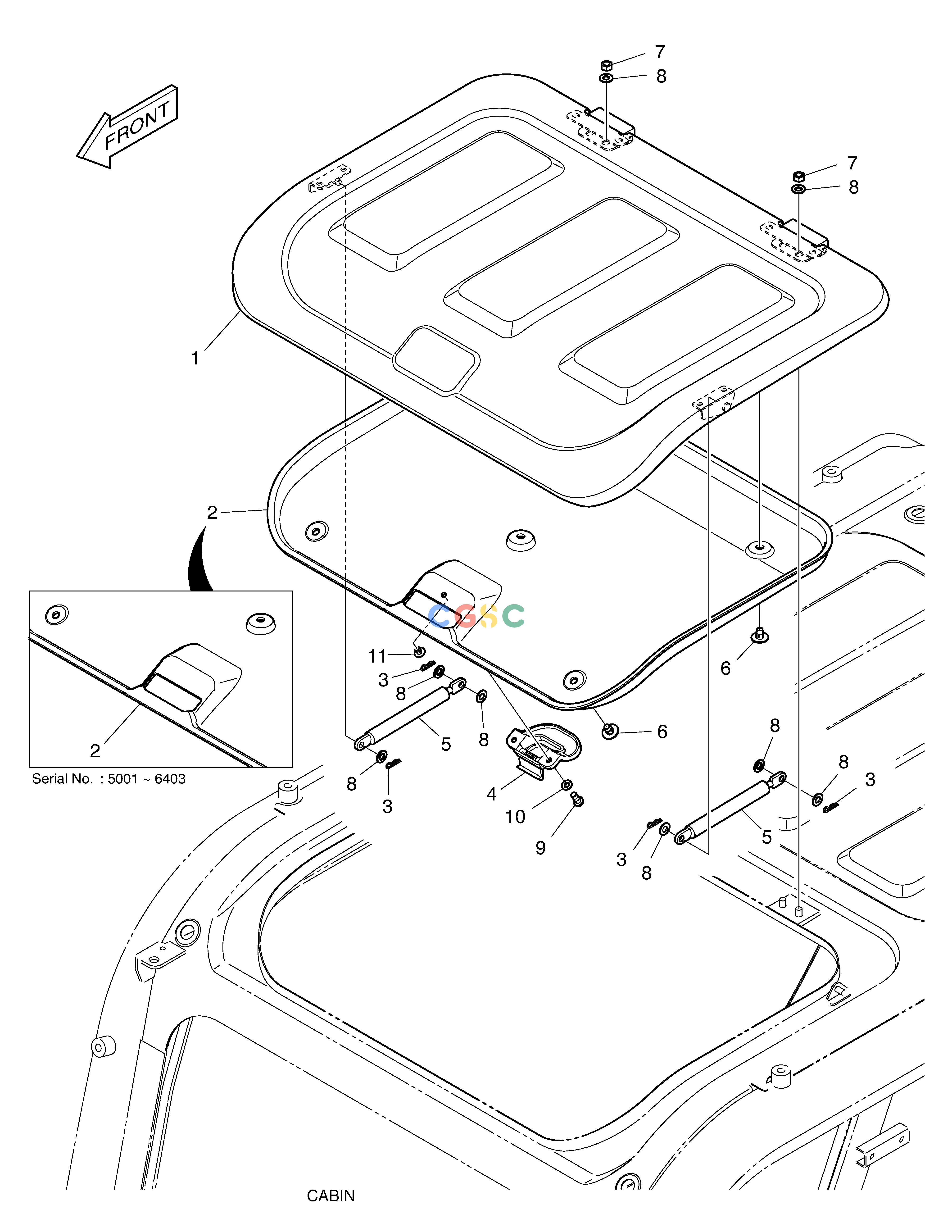

斗山零件查询ROOF COVER - STEEL(ROPS) DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
411 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220204-00048A
|
[-] |
|
|
| -. |
220204-00048
|
[-] |
|
|
| 1. |
220204-00155
|
[1] |
|
|
| 1. |
K1057196
|
[1] |
|
220204-00155
|
| 10. |
2114-1898D3
|
[2] |
WASHER
|
|
| 11. |
S3456813
|
[1] |
SCREW
|
|
| 2. |
220204-00031A
|
[1] |
|
|
| 2. |
220204-00031
|
[1] |
|
220204-00031A
|
| 3. |
123-00523
|
[4] |
PIN,GAS-SPRING
|
|
| 4. |
123-00516B
|
[1] |
LOCK ASSY
|
|
| 5. |
DS1003010
|
[2] |
|
|
| 6. |
K1006933
|
[5] |
SCRIVET
|
|
| 7. |
2121-1311D2
|
[4] |
NUT
|
|
| 8. |
2114-1898D14
|
[10] |
WASHER
|
|
| 9. |
2120-2166D9
|
[2] |
SCREW
|
|
