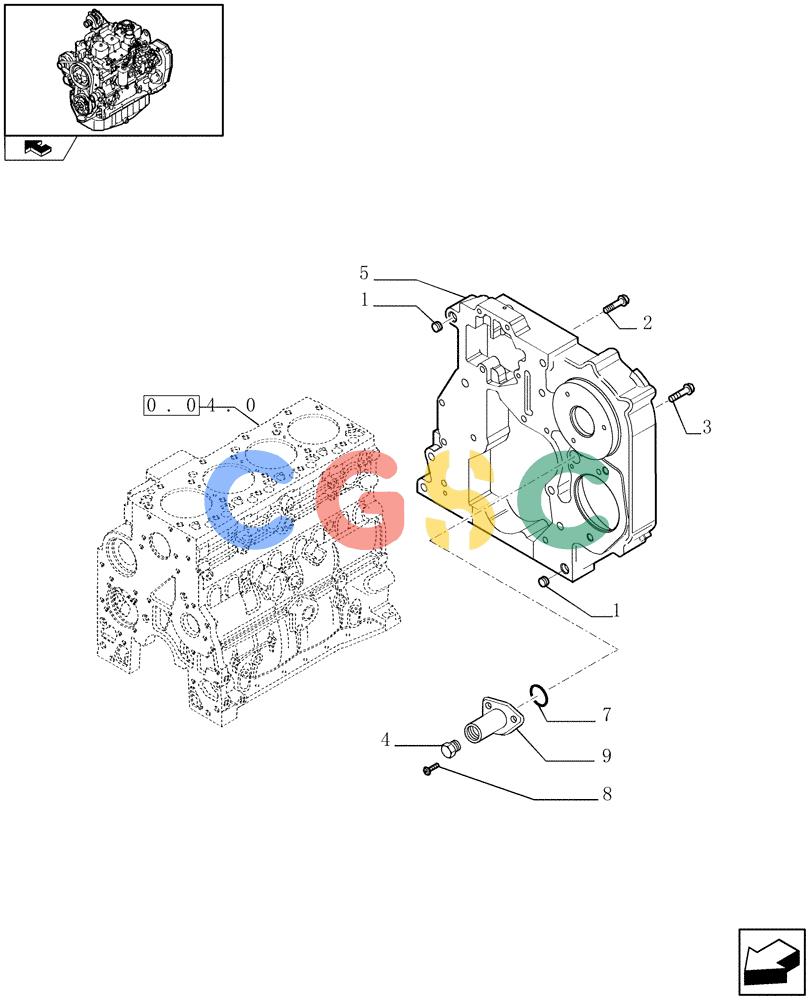

神钢零件查询(F4GE9484A J600) - ENGINE 504120790 - 87052264 (1/07-12/10) (0.04.3[01]) - CRANKCASE COVERS (2852682) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
358 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899026 | [2] | DOWEL,M18 x 10 | TOR |
| 2. | 4899091 | [4] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BAS |
| 3. | 4899093 | [5] | BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC | BAS Superseded by part number: 87778358 |
| 3. | 4899073 | [2] | SCREW,Hex Flg, M12 x 1.75 x 30 | TOR |
| 7. | 2852519 | [1] | O-RING,M21.95 ID x 1.78 Thk | TOR Superseded by part number: 17278781 |
| 8. | 4895355 | [2] | SCREW,M5 x 0.8 x 17mm, Cl 8.8 | TOR |
| 9. | 2855287 | [1] | HOUSING | TORTiming Pin |
