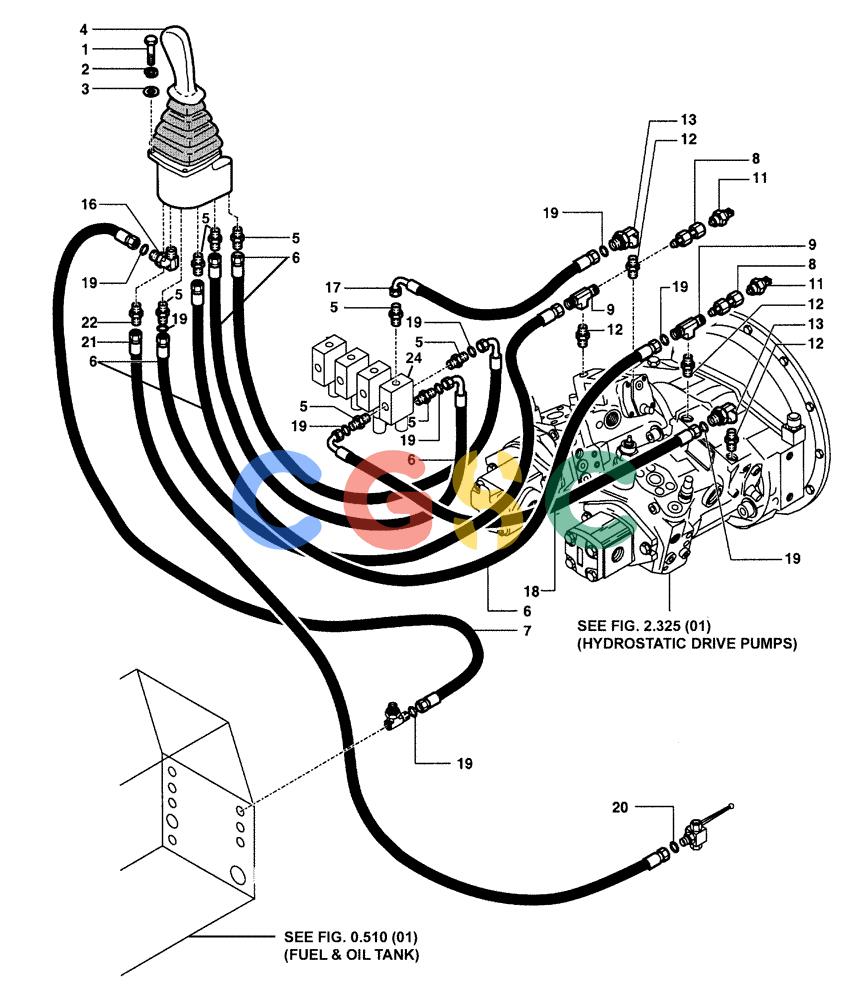

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (2.339[01F]) - HYDROSTATIC TRANSMISSION CONTROL LINES - DC100 STD. S/N 13111094 & UP; LGP S/N 13115017 & UP New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
698 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76591088 | [4] | SCREW | MAC |
| 2. | 76590750 | [4] | LOCK WASHER | MAC Superseded by part number: 86517328 |
| 3. | 76590873 | [4] | WASHER | MAC Superseded by part number: 10519404 |
| 4. | 76605906 | [1] | MANIPULATOR | MACASSY. - SEE FIG. 2.339 (02) |
| 5. | 76591032 | [8] | HYD CONNECTOR | MAC |
| 6. | 76591102 | [4] | FLEXIBLE HOSE | MAC |
| 7. | 76591103 | [1] | HOSE | MAC |
| 8. | 76593067 | [2] | HYD CONNECTOR | MAC |
| 9. | 76591038 | [2] | HYD CONNECTOR | MAC |
| 11. | 76591107 | [2] | SENSOR | MACBACK-UP ALARM |
| 12. | 76591108 | [4] | HYD CONNECTOR | MAC |
| 13. | 76591029 | [2] | HYD CONNECTOR | MAC |
| 16. | 76591048 | [1] | HYD CONNECTOR | MAC |
| 17. | 76591061 | [1] | HOSE | MAC |
| 18. | 76591052 | [1] | HOSE | MAC |
| 19. | 76596047 | [14] | SEAL | MACO-RING |
| 20. | 76596048 | [2] | SEAL | MACO-RING |
| 21. | 76609971 | [1] | FLEXIBLE HOSE | MAC |
| 22. | 76591023 | [1] | HYD CONNECTOR | MAC |
| 24. | 76594900 | [1] | ELECTRO-VALVE | MACASSY. - SEE FIG. 2.332 (03) |
