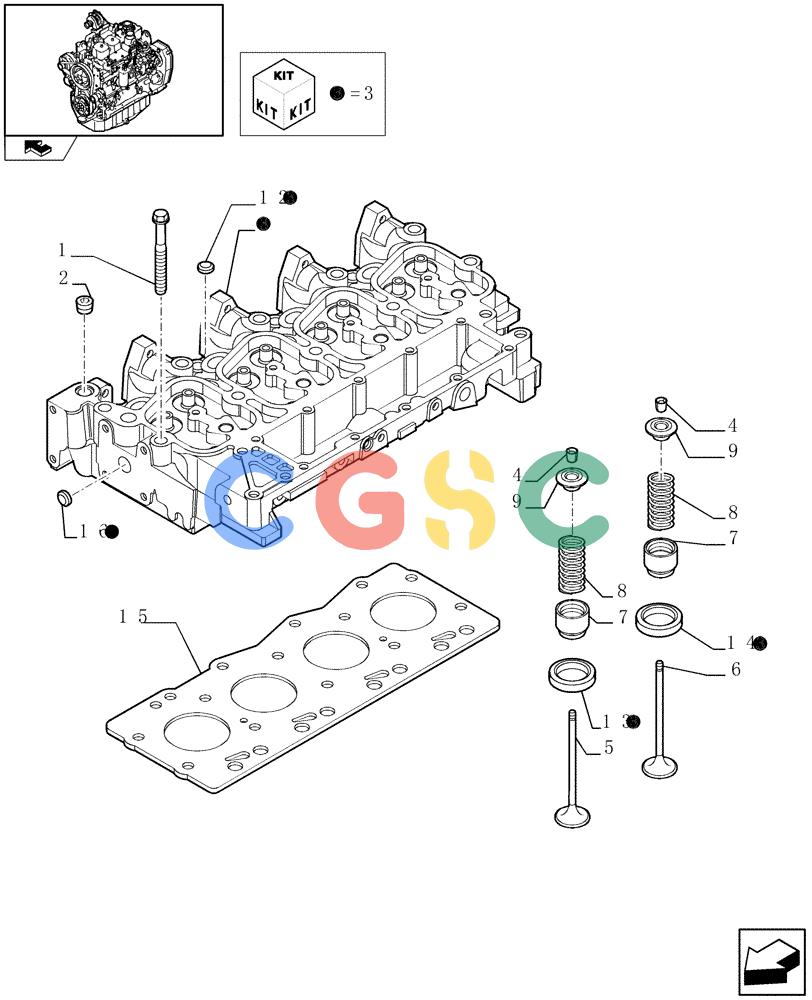

神钢零件查询(F4GE9484A J600) - ENGINE 504120790 - 87052264 (1/07-12/10) (0.06.0) - CYLINDER HEAD (2856258 - 2856050) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
324 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4892861 | [4] | CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73 | TOR |
| 1. | 4892859 | [10] | BOLT,Flng, M12 x 1.75 x 143mm | TOR |
| 2. | 4895078 | [5] | PIPE PLUG,1/2"-14 | TOR |
| 3. | 2856017 | [1] | CYLINDER HEAD,4 Cylinders | TOR- ASSY Superseded by part number: |
| . . | 2856017R | [1] | REMAN-CYLINDER HEAD | TORF4GE9484A J600 ENGINE 504120790 - 87052264 Superseded by part number: 47511182R |
| . . | 2856017C | [1] | CORE-CYLINDER HEAD | TORReturn Number |
| 4. | 4895183 | [16] | COLLET | TOR |
| 5. | 4899632 | [4] | STD EXHAUST VALVE | TORSTD ENGINE EXHAUST VALVE |
| 6. | 4895187 | [4] | STD INLET VALVE | TORSTD ENGINE INLET VALVE |
| 7. | 4895347 | [8] | SEAL | TOR |
| 8. | 4895215 | [8] | VALVE SPRING,Compression, 32.8mm OD x 63.5 mmL | TOR |
| 9. | 4895184 | [8] | RETAINER,34mm OD, 10.63mm ID, 14.5mm L | TOR |
| 12. | 4895179 | [3] | EXPANSION PLUG,M20.93 | TOR |
| 13. | 4897178 | [4] | VALVE SEAT,36mm ID x 43mm OD x 6.7mm L | TORExhaust |
| 14. | 4897179 | [4] | VALVE SEAT,38 mmID x 47mm OD x 6.9mm L | TORIntake |
| 15. | 2830919 | [1] | CYLINDER HEAD GASKET,1.4mm Thk | TOR |
| 15. | 2830920 | [1] | CYLINDER HEAD GASKET,1.15mm Thk | TOR |
| 16. | 4895085 | [1] | EXPANSION PLUG,25.74mm | TOROD |
