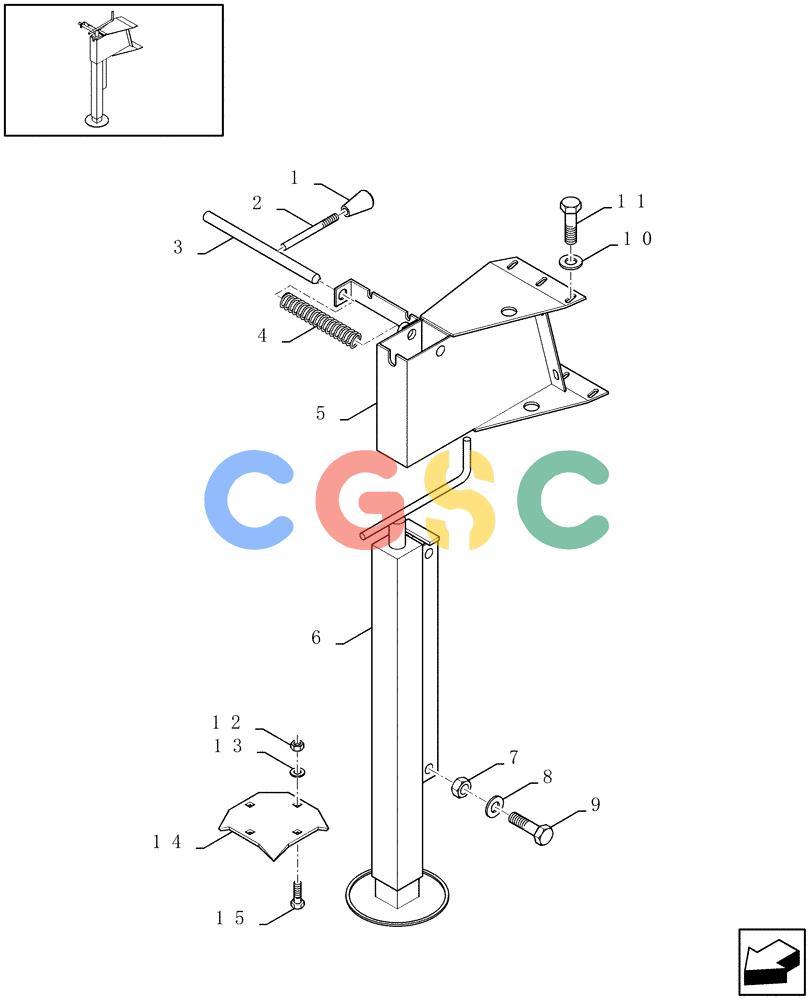

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (12.03[01]) - JACK Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
922 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84025436
|
[1] |
HANDLE GRIP
|
POL
Superseded by part number: 340441109
|
| 2. |
84100998
|
[1] |
STUD
|
PLO
|
| 3. |
84024150
|
[1] |
PIN
|
PLO
|
| 4. |
84024153
|
[1] |
SPRING
|
PLO
|
| 5. |
84822131
|
[1] |
SUPPORT
|
PLO
, Serial Range: -C667 Superseded by part number: 84820184
|
| 5. |
84820184
|
[1] |
SUPPORT
|
PLO
, Start Serial: D668
|
| 6. |
84022494
|
[1] |
, Serial Range: -C667
|
|
| 6. |
84820185
|
[1] |
JACK
|
PLO
, Start Serial: D668
|
| 7. |
15896221
|
[1] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
| 8. |
80322357
|
[1] |
LOCK WASHER,Belleville, M6
|
ZED
6MM Superseded by part number: 322357
|
| 9. |
80120240
|
[1] |
M6x80
|
SCREW
|
| 10. |
80140045
|
[10] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 11. |
80338949
|
[10] |
CARRIAGE BOLT
|
ZED
M10x25 Superseded by part number: 338949
|
| 12. |
43362
|
[4] |
NUT,M8 x 1.25, Cl 10
|
BHB
|
| 13. |
80322358
|
[4] |
LOCK WASHER
|
ZED
M8x25 Superseded by part number: 322358
|
| 14. |
84074685
|
[1] |
BRACKET
|
PLO
|
| 15. |
80308761
|
[4] |
SCREW,M8 x 25mm
|
ZED
M8x25 Superseded by part number: 308761
|
