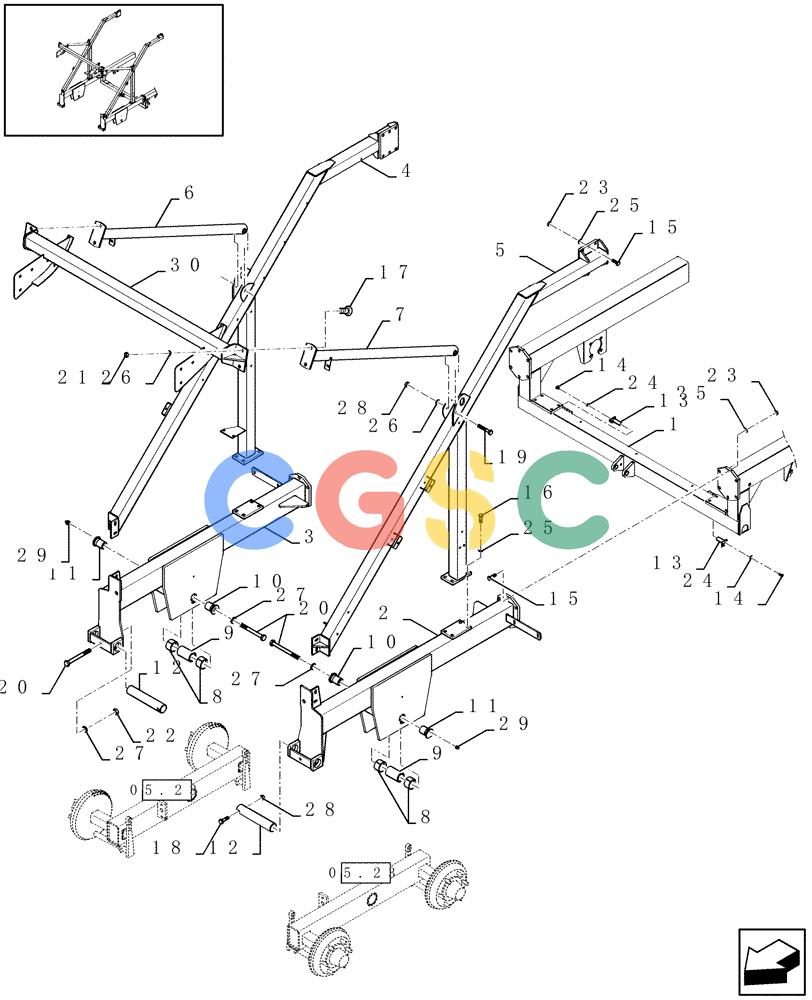

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (12.21[01]) - FRAME Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
959 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84821052
|
[1] |
FRAME
|
PLO
|
| 2. |
84821161
|
[1] |
BEAM
|
PLO
LH
|
| 3. |
84821163
|
[1] |
BEAM
|
PLO
RH
|
| 4. |
84821083
|
[1] |
ARM
|
PLO
RH
|
| 5. |
84821079
|
[1] |
ARM
|
PLO
LH
|
| 6. |
84820547
|
[1] |
SUPPORT
|
PLO
RH
|
| 7. |
84820545
|
[1] |
SUPPORT
|
PLO
LH
|
| 8. |
84817217
|
[4] |
BRONZE BUSHING
|
PLO
|
| 9. |
84817218
|
[2] |
SPACER,45mm ID x 60mm OD x 102mm L
|
PLO
|
| 10. |
84817219
|
[2] |
BUSHING
|
PLO
|
| 11. |
84817220
|
[2] |
BUSHING,20.5mm ID x 60mm OD x 68mm L
|
PLO
|
| 12. |
84817285
|
[2] |
SHAFT
|
PLO
|
| 13. |
84820895
|
[2] |
PIN
|
PLO
|
| 14. |
120104
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 15. |
80280264
|
[24] |
SCREW
|
ZED
M14x50 Superseded by part number: 280264
|
| 16. |
80280854
|
[8] |
SCREW
|
ZED
M14x35 Superseded by part number: 280854
|
| 17. |
80043168
|
[4] |
BOLT
|
ZED
M16x40 Superseded by part number: 43168
|
| 18. |
80350616
|
[2] |
BOLT,M16 x 90mm
|
ZED
M16x90 Superseded by part number: 350616
|
| 19. |
80043874
|
[2] |
SCREW
|
ZED
M16x110 Superseded by part number: 43874
|
| 20. |
80043188
|
[4] |
BOLT,M20 x 2.5 x 120mm, Cl 8.8
|
PA
M20x120
|
| 21. |
100020
|
[4] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 22. |
89706694
|
[2] |
NUT,M20, Cl 8
|
ZED
Superseded by part number: 9706694
|
| 23. |
86508817
|
[24] |
NUT,M14, Cl 8
|
ZED
M14
|
| 24. |
80322358
|
[2] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 25. |
140030
|
[32] |
LOCK WASHER,M14
|
ZED
Superseded by part number: 80140047
|
| 26. |
80140048
|
[4] |
WASHER
|
ZED
16MM Superseded by part number: 140048
|
| 27. |
80322359
|
[6] |
LOCK WASHER
|
ZED
20MM Superseded by part number: 322359
|
| 28. |
80100039
|
[4] |
NUT
|
ZED
M16 Superseded by part number: 86000441
|
| 29. |
321204
|
[2] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 30. |
84820562
|
[1] |
BEAM
|
PLO
|
