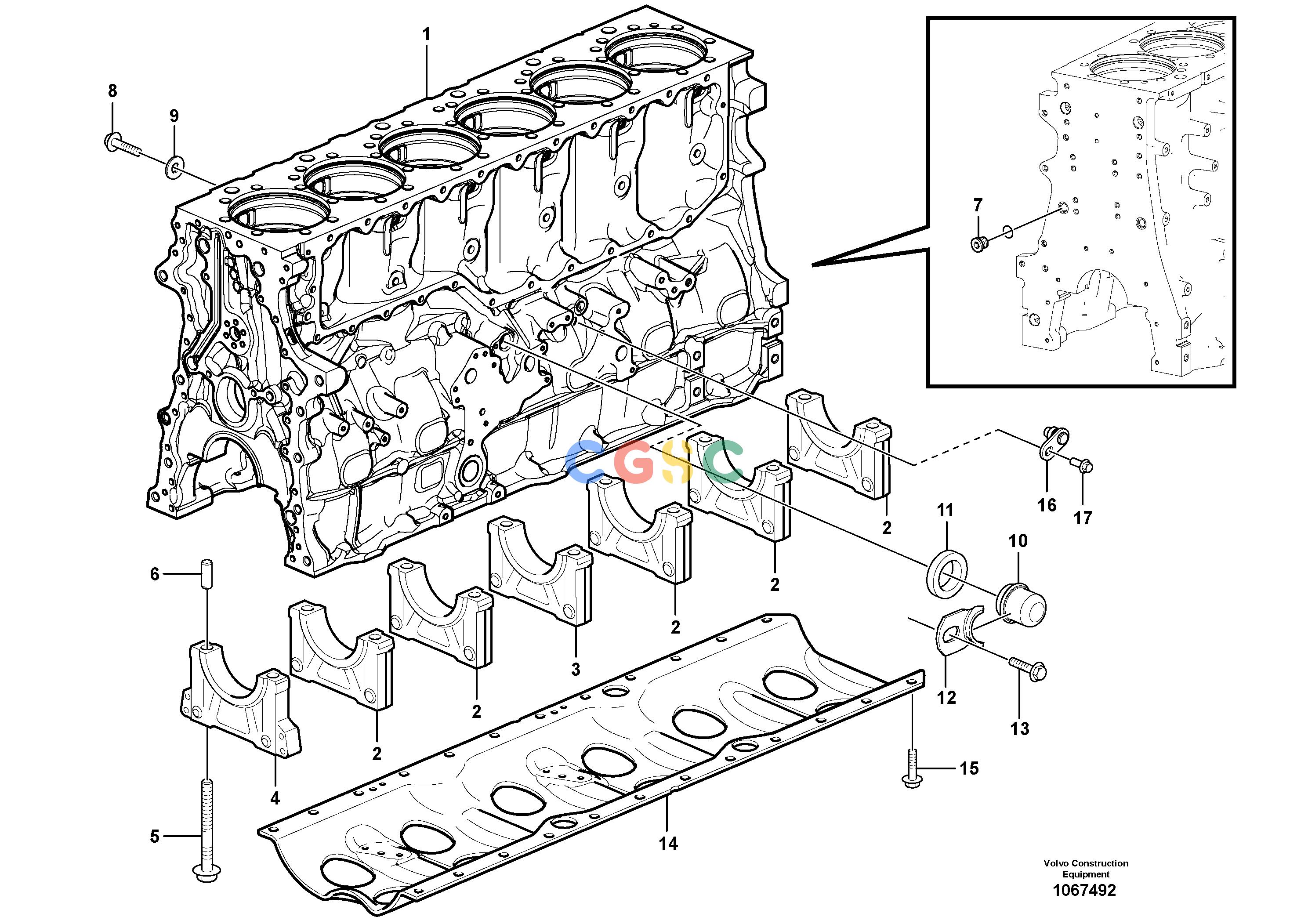

沃尔沃零件查询L220G Cylinder blockNone15049439, 15117870-15049437VOE15049439NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
907 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21048297
|
[1] |
Cylinder block
|
|
| 2. |
VOE8148427
|
[5] |
Main bearing cap
|
1, 2, 3, 5, 6
|
| 3. |
VOE8148428
|
[1] |
Main bearing cap
|
4
|
| 4. |
VOE20511488
|
[1] |
Main bearing cap
|
7
|
| 5. |
VOE21345129
|
[14] |
Flange screw
|
|
| 6. |
VOE422426
|
[1] |
Pin
|
|
| 7. |
VOE984793
|
[3] |
Plug
|
|
| 8. |
VOE946441
|
[2] |
Flange screw
|
|
| 9. |
VOE947541
|
[2] |
Washer
|
|
| 10. |
VOE20567779
|
[1] |
Plug
|
|
| 11. |
VOE21940615
|
[1] |
Sealing ring
|
|
| 12. |
VOE20844430
|
[1] |
Lock brace
|
|
| 13. |
VOE946440
|
[1] |
Flange screw
|
|
| 14. |
VOE21644620
|
[1] |
Frame reinforcement
|
|
| 15. |
VOE60113094
|
[24] |
Flange screw
|
|
| 16. |
VOE22316718
|
[1] |
Plug
|
ENG 382424 -
|
| |
VOE1636309
|
[1] |
Sealing ring
|
|
| 17. |
VOE994446
|
[1] |
Flange screw
|
ENG 382424 -
|
