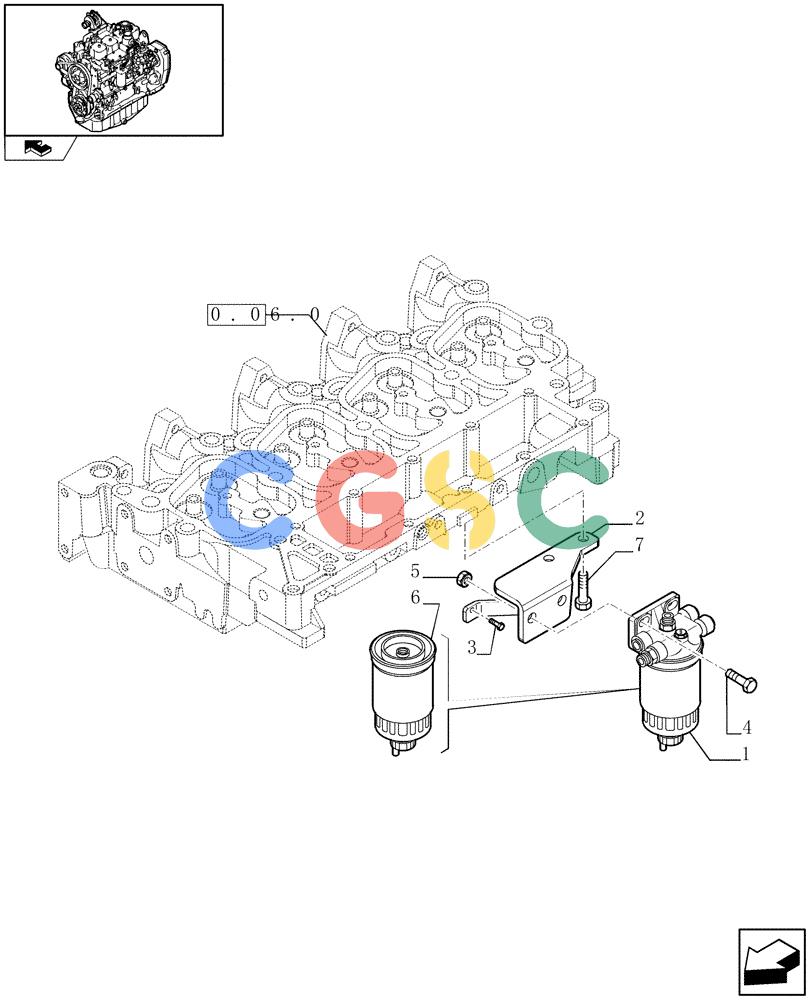

神钢零件查询(F4GE9484A J600) - ENGINE 504120790 - 87052264 (1/07-12/10) (0.20.0) - FUEL FILTER (2852097) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
877 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852098 | [1] | FILTER ASSY | TOR- ASSY |
| 2. | 2855103 | [1] | SUPPORT | TOR Superseded by part number: 504168524 |
| 3. | 4899068 | [1] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| 4. | 4899849 | [2] | SCREW,Hex, M10 x 1.5 x 35mm | TOR Superseded by part number: 16587325 |
| 5. | 4895166 | [2] | FLANGE NUT,M10, 1.50mm Pitch, Cl 10 | BASM10X1.5 mm |
| 6. | 84348882 | [1] | FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns | CASM10 Drain Port |
