纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (0.081[01]) - CONNECTING RODS AND PISTONS DC70 - DC80 - DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
599 次

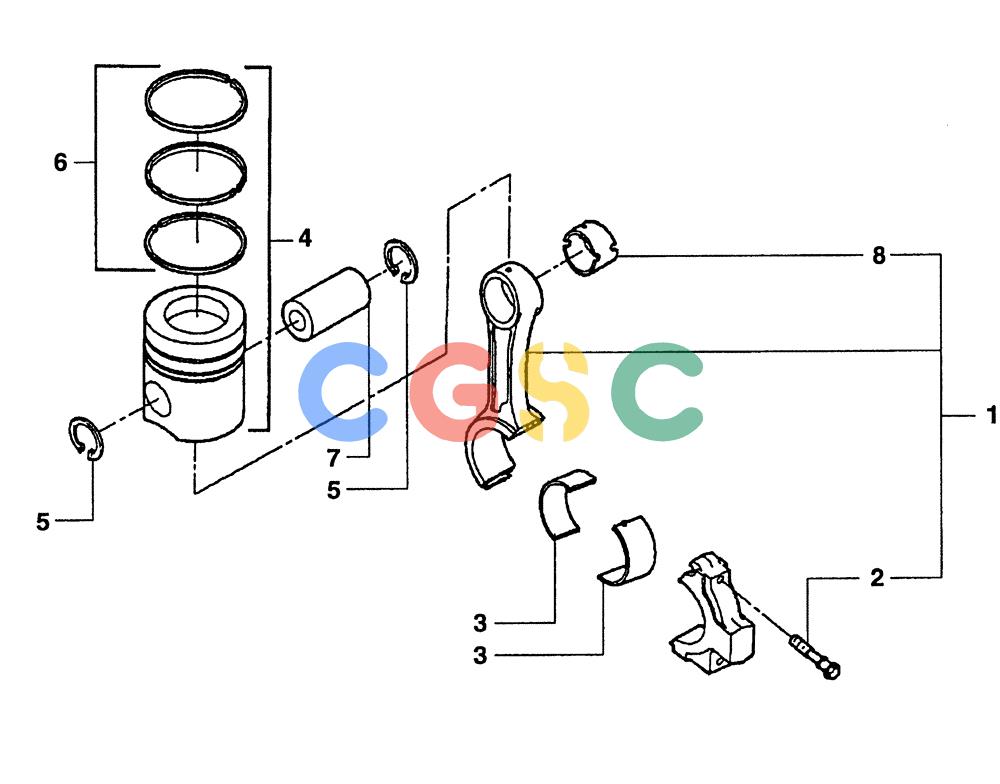

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3925232 | [1] | CONNECTING ROD | LEC Superseded by part number: 84145405 |
| . . | 84145405R | [1] | REMAN-CONNECTING ROD | BRRDC100 (4/00-), DC70 , DC80, BOTH (4/99-), Reman For New P/N 3925232 |
| . . | 84145405C | [1] | Return Number | CORE-ROD CONNECTING |
| 2. | 76191881 | [2] | SCREW | TOR11X1,25X59 Superseded by part number: J900919 |
| 3. | 3901174 | [1] | HALF-BUSHING | L- THICKNESS 1,00 mm |
| 3. | 3901173 | [1] | BEARING HALF | L- THICKNESS 0,75 mm |
| 3. | 76191887 | [1] | BEARING SET | TOR- THICKNESS 0,50 mm |
| 3. | 76191886 | [1] | BEARING SET | TOR- THICKNESS 0,25 mm Superseded by part number: 84292697AM |
| 3. | 76191885 | [2] | BEARING SET | TOR Superseded by part number: 76195420 |
| 4. | 76192545 | [1] | PISTON & RINGS KIT | TOR Superseded by part number: J802747 |
| 5. | 76191896 | [2] | LOCKING RING | TOR Superseded by part number: J920691 |
| 6. | 76193199 | [3] | KIT | TOR Superseded by part number: J802230 |
| 7. | 76193208 | [4] | PIN | TOR Superseded by part number: J934047 |
| 8. | 3901085 | [1] | BUSHING | L Superseded by part number: 87403209 |
