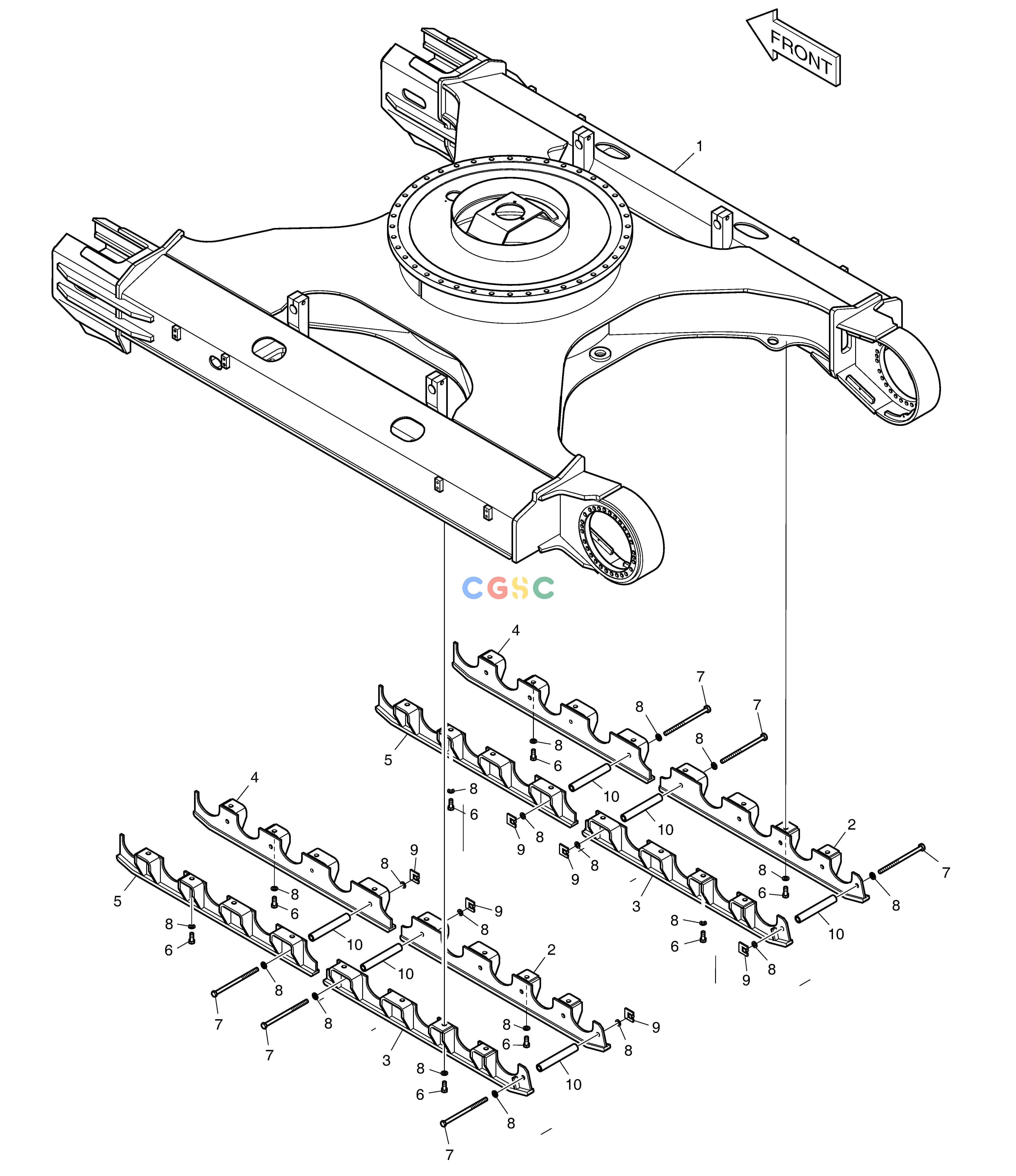

斗山零件查询TRACK FRAME - FULL GUARD DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
514 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1009979G
|
[-] |
TRACK FRAME
|
|
| 1. |
K1009651G
|
[1] |
FRAME;TRACK(FULL GUARD)
|
K1009651H
|
| 1. |
160617-00223
|
[1] |
|
160617-00223A
|
| 1. |
160617-00223A
|
[1] |
|
|
| 1. |
K1009651H
|
[1] |
|
|
| 10. |
K1009982
|
[18] |
SPACER
|
|
| 2. |
K1008761
|
[2] |
GUARD;TRACK(R.H)-REAR
|
|
| 3. |
K1008762
|
[2] |
GUARD;TRACK(L.H)-REAR
|
|
| 4. |
K1008763
|
[2] |
GUARD;TRACK(R.H)-FRONT
|
|
| 5. |
K1008764
|
[2] |
GUARD;TRACK(L.H)-FRONT
|
|
| 6. |
S0527666
|
[32] |
BOLT M20X2.5X50
|
|
| 7. |
K1009981
|
[18] |
BOLT
|
|
| 8. |
2114-9012A
|
[68] |
WASHER
|
|
| 9. |
K1008926
|
[18] |
PLATE;LOCK
|
|
