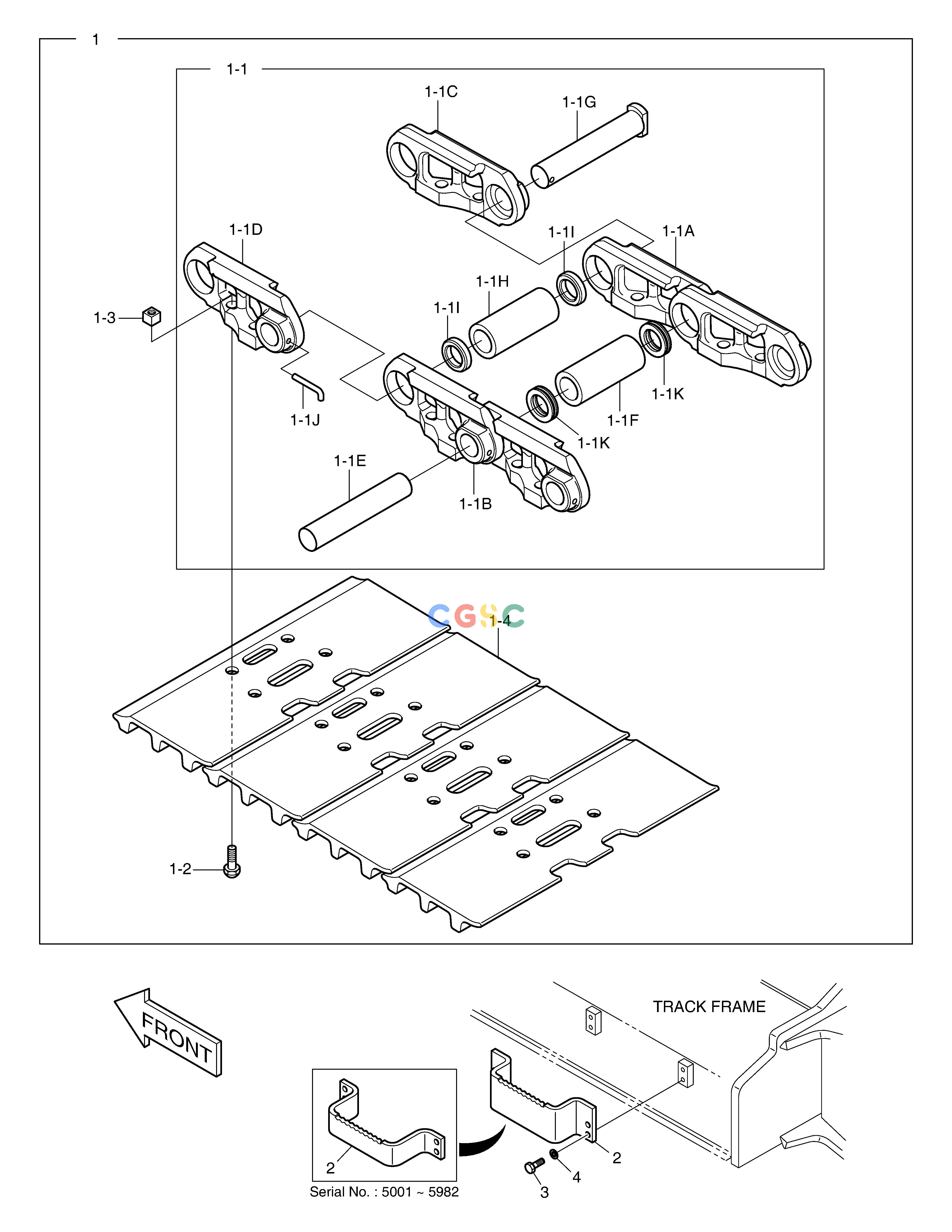

斗山零件查询TRACK SHOE ASS'Y - 700G DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
282 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1009228B
|
[-] |
TRACK SHOE ASS'Y(700MM)
|
|
| 1. |
273-00107A
|
[2] |
TRACK SHOE ASS'Y
|
273-00107B
|
| 1. |
273-00107B
|
[2] |
TRACK SHOE ASS'Y-700G
|
|
| 1-1. |
272-00062A
|
[1] |
TRACK LINK ASS'Y
|
272-00062B
|
| 1-1. |
272-00062B
|
[1] |
TRACK LINK ASS'Y
|
|
| 1-1A. |
272-00056
|
[47] |
LINK;TRACK(R.H.)
|
|
| 1-1B. |
272-00057
|
[47] |
LINK;TRACK(L.H.)
|
|
| 1-1C. |
272-00058
|
[1] |
LINK;MASTER(R.H.)
|
|
| 1-1D. |
272-00059
|
[1] |
LINK;MASTER(L.H.)
|
|
| 1-1E. |
123-00510
|
[47] |
PIN;TRACK(REGULAR)
|
|
| 1-1F. |
110-00238
|
[47] |
BUSH;TRACK(REGULAR)
|
110-00238A
|
| 1-1F. |
110-00238A
|
[47] |
BUSH;TRACK(REGULAR)
|
|
| 1-1G. |
123-00511
|
[1] |
PIN;TRACK(MASTER)
|
|
| 1-1H. |
110-00239
|
[1] |
BUSH;TRACK(MASTER)
|
110-00239A
|
| 1-1H. |
110-00239A
|
[1] |
BUSH;TRACK(MASTER)
|
|
| 1-1I. |
114-00566
|
[2] |
SPACER
|
|
| 1-1J. |
2123-1629
|
[1] |
PIN
|
|
| 1-1K. |
180-00454
|
[94] |
SEAL;DUST
|
|
| 1-2. |
120-00314
|
[192] |
BOLT;TRACK
|
|
| 1-3. |
121-00084
|
[192] |
NUT;TRACK
|
|
| 1-4. |
273-00110
|
[48] |
SHOE;TRACK(700MM)
|
|
| 2. |
K1004859D1
|
[4] |
STEP
|
K1050393
|
| 2. |
K1050393
|
[4] |
STEP
|
|
| 3. |
S0565066
|
[16] |
BOLT M16X2.0X40
|
|
| 4. |
S5102903
|
[16] |
WASHER
|
|
