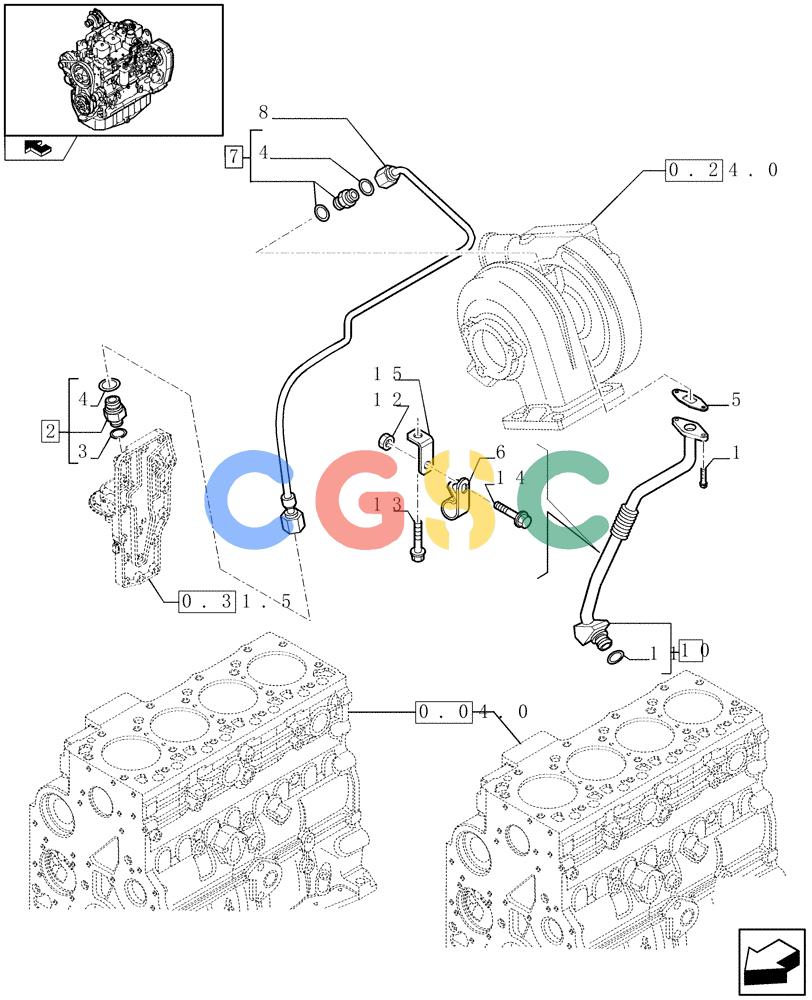

神钢零件查询(F4GE9484A J600) - ENGINE 504120790 - 87052264 (1/07-12/10) (0.30.5) - PIPING - ENGINE OIL (2853119) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
812 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4895164 | [2] | SCREW,Hex, Flg Hd, M6 x 16 | TOR |
| 2. | 4895107 | [1] | HYD CONNECTOR,11/16"-16 x M12 | TOR- Assy Superseded by part number: |
| 3. | 4899107 | [1] | O-RING,1.8mm Thk x 10.52mm ID | TOR |
| 4. | 4899108 | [2] | O-RING,0.364mm ID x 0.07mm Width | TOR Superseded by part number: 17277981 |
| 5. | 4899467 | [1] | GASKET | TOR |
| 6. | 4899519 | [1] | CLAMP,M16, M6 Bolt | TOR |
| 7. | 4899106 | [1] | HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB | TOR- Assy |
| 8. | 2853124 | [1] | RIGID TUBE | TOR |
| 10. | 2853120 | [1] | RIGID TUBE | TOR- ASSY Superseded by part number: |
| 11. | 4899058 | [1] | O-RING,0.674" ID x 0.88" OD x 0.103" | TOR Superseded by part number: 17281881 |
| 12. | 2852197 | [1] | FLANGE NUT,M6 x 1 | TOR Superseded by part number: 17044625 |
| 13. | 4899068 | [1] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| 14. | 2852101 | [1] | FLANGE BOLT,Hex, M6 x 16mm | TOR Superseded by part number: 18137825 |
| 15. | 2852196 | [1] | BRACKET | TOR Superseded by part number: 504053894 |
