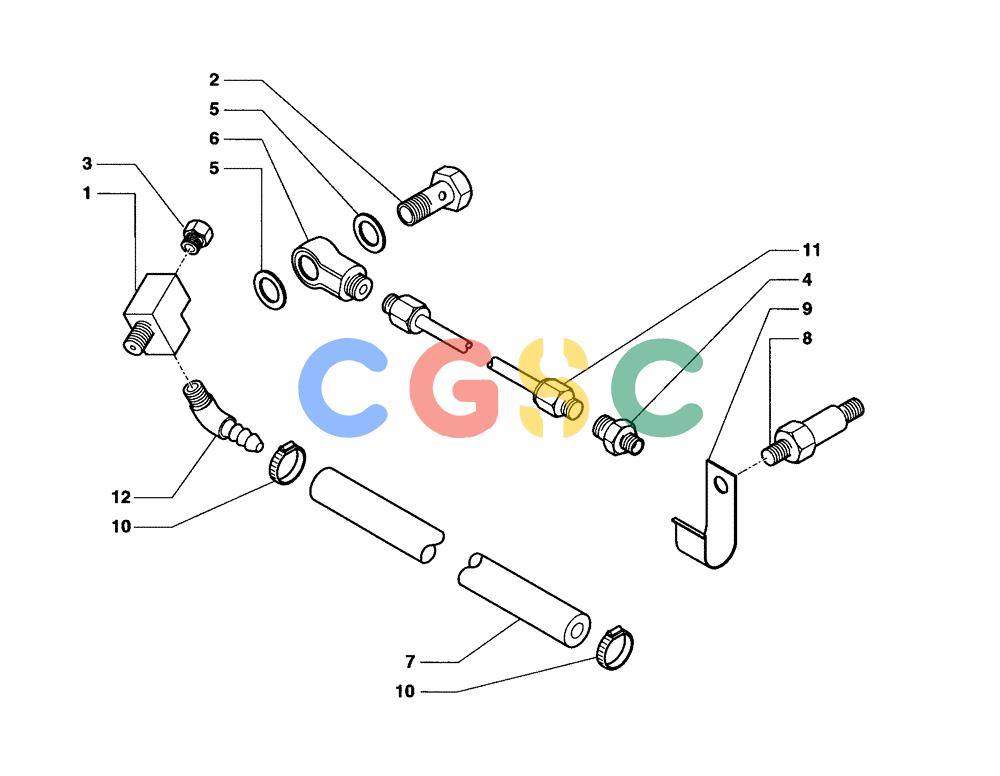

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (0.203[01B]) - PIPING - FUEL DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
860 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76191876 | [1] | NUT | LEC8X1,25 Superseded by part number: 86507066 |
| 2. | 76192057 | [1] | HYD CONNECTOR | TOR Superseded by part number: 222-41 |
| 3. | 76193249 | [1] | TUBE | TOR Superseded by part number: J991047 |
| 4. | 76193209 | [1] | SCREW | TOR8X1,25X21 Superseded by part number: J920344 |
| 5. | 76193210 | [1] | CLIP | TOR Superseded by part number: J920348AM |
| 6. | 76192453 | [2] | HOSE CLAMP | LEC Superseded by part number: 86625022 |
| 7. | 76193211 | [1] | HYD CONNECTOR | TOR Superseded by part number: J920803AM |
| 8. | 76193241 | [1] | ELBOW | LEC Superseded by part number: REFERENCE |
| 9. | 76193246 | [1] | TUBE | TOR Superseded by part number: J991517 |
| 10. | 76193273 | [1] | HYD CONNECTOR | MAC Superseded by part number: J931798 |
