纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (0.240[02A]) - TURBOCHARGER DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
762 次

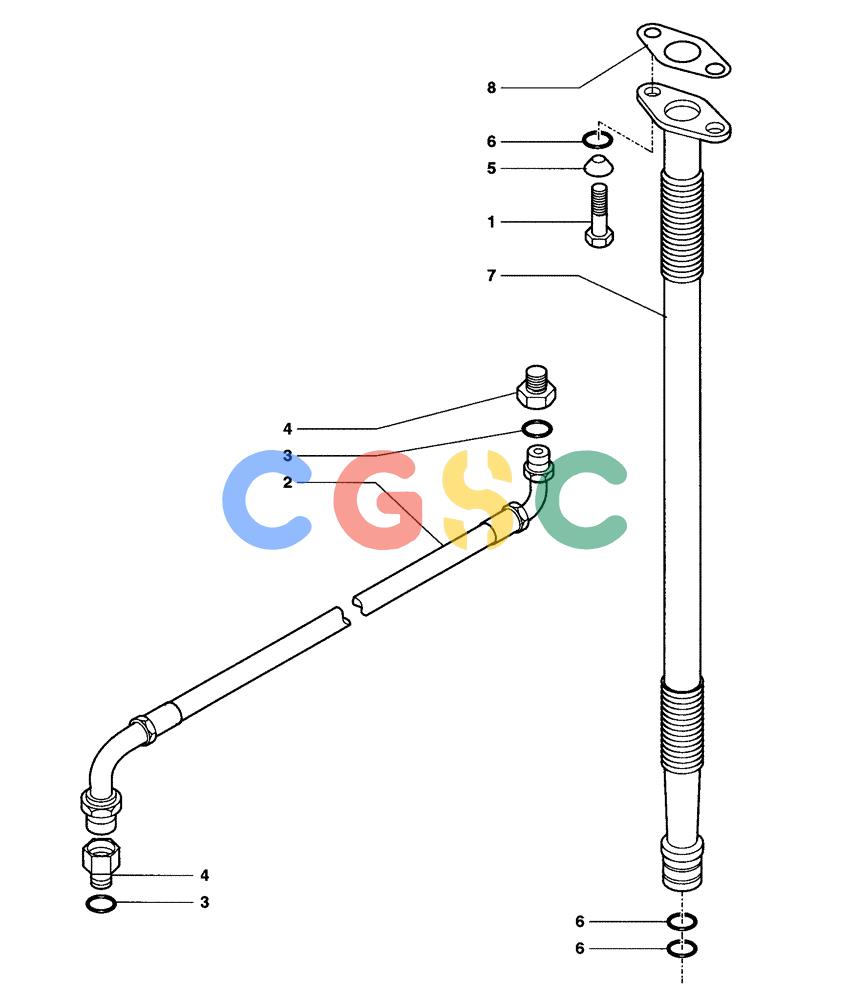

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 75208153 | [2] | SCREW | LEC Superseded by part number: 845-8020 |
| 2. | 76191820 | [1] | FLEXIBLE HOSE | TORNo Longer Available, Order J909545 Superseded by part number: J909545 |
| 2. | J909545 | [1] | HOSE | CAS406 mm, 5/8 Male Thread Both Ends; One End Straight, Other End 120 Degree Bend; Not Shown |
| 3. | 75286174 | [1] | O-RING | LEC |
| 4. | 75286539 | [1] | HYD CONNECTOR | LEC Superseded by part number: J919687 |
| 5. | 3924389 | [2] | WASHER | L Superseded by part number: 75288056 |
| 6. | 76192478 | [2] | O-RING | LEC Superseded by part number: 1483941 |
| 7. | 3934084 | [1] | RIGID TUBE | LECO-R Superseded by part number: 87423080 |
| 8. | 76192706 | [1] | GASKET | LEC Superseded by part number: J937706 |
