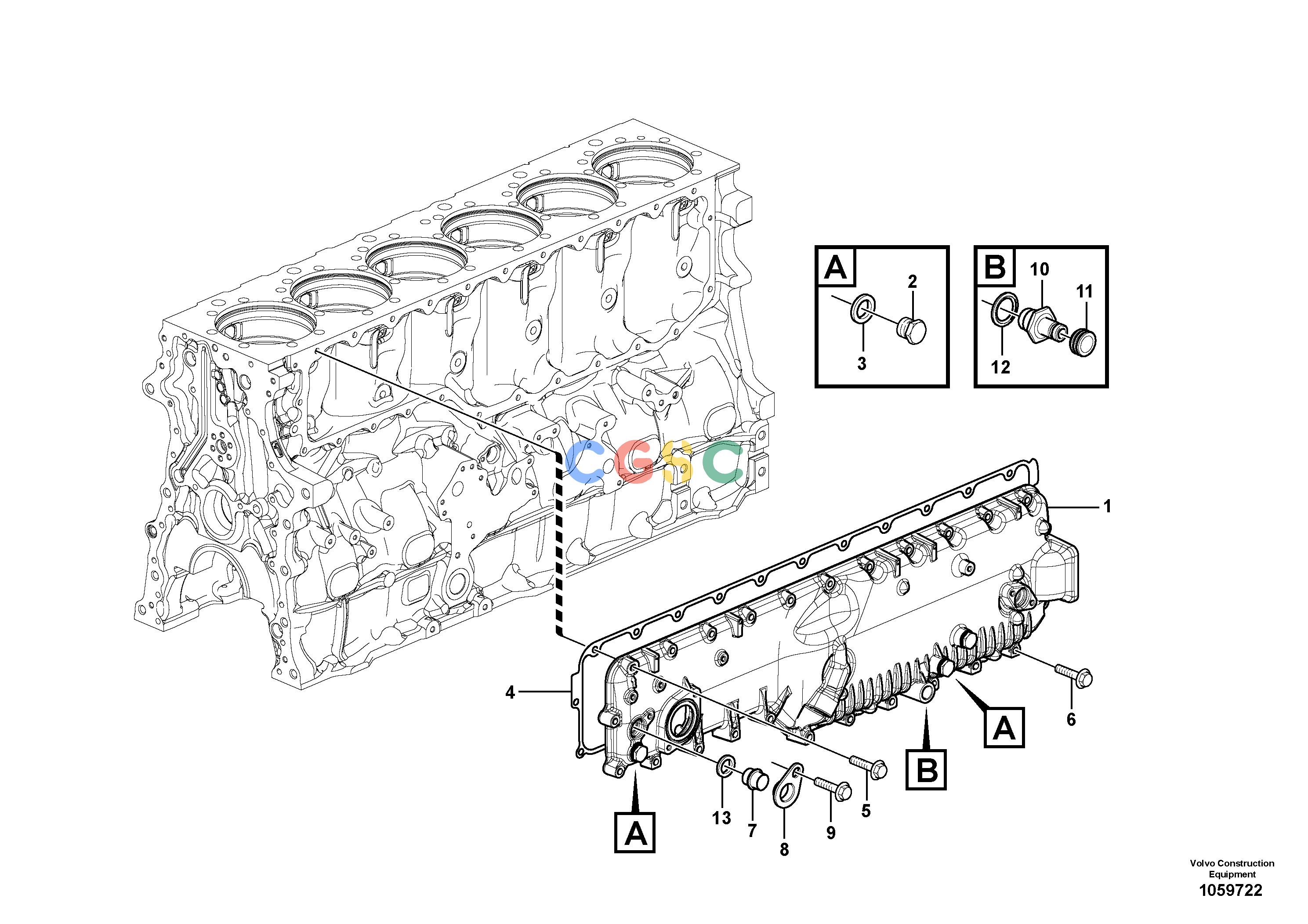

沃尔沃零件查询L250G CoverNone15049437-NoneVOE15049437NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
431 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21677250
|
[1] |
Cover
|
ENG 305646 -
|
| 2. |
VOE21666520
|
[3] |
Plug
|
|
| 3. |
VOE21024032
|
[3] |
Sealing ring
|
|
| 4. |
VOE20979871
|
[1] |
Seal
|
ENG - 268672
|
| 4. |
VOE21294062
|
[1] |
Gasket
|
ENG 268673 -
|
| 5. |
VOE13948217
|
[16] |
Screw
|
M8X45
|
| 6. |
VOE13965180
|
[9] |
Screw
|
M8X60
|
| 7. |
VOE20845995
|
[1] |
Plug
|
|
| 8. |
VOE20718731
|
[1] |
Yoke
|
|
| 9. |
VOE946440
|
[1] |
Flange screw
|
|
| 10. |
VOE1676622
|
[1] |
Nipple
|
|
| 11. |
VOE476279
|
[1] |
Protecting cap
|
|
| 1. |
VOE21121525
|
[1] |
Cover
|
ENG - 268672
|
| 12. |
VOE979099
|
[1] |
Gasket
|
|
| 1. |
VOE21423742
|
[1] |
Cover
|
ENG 268673 - 305645
|
| 13. |
VOE1547252
|
[1] |
Sealing ring
|
|
