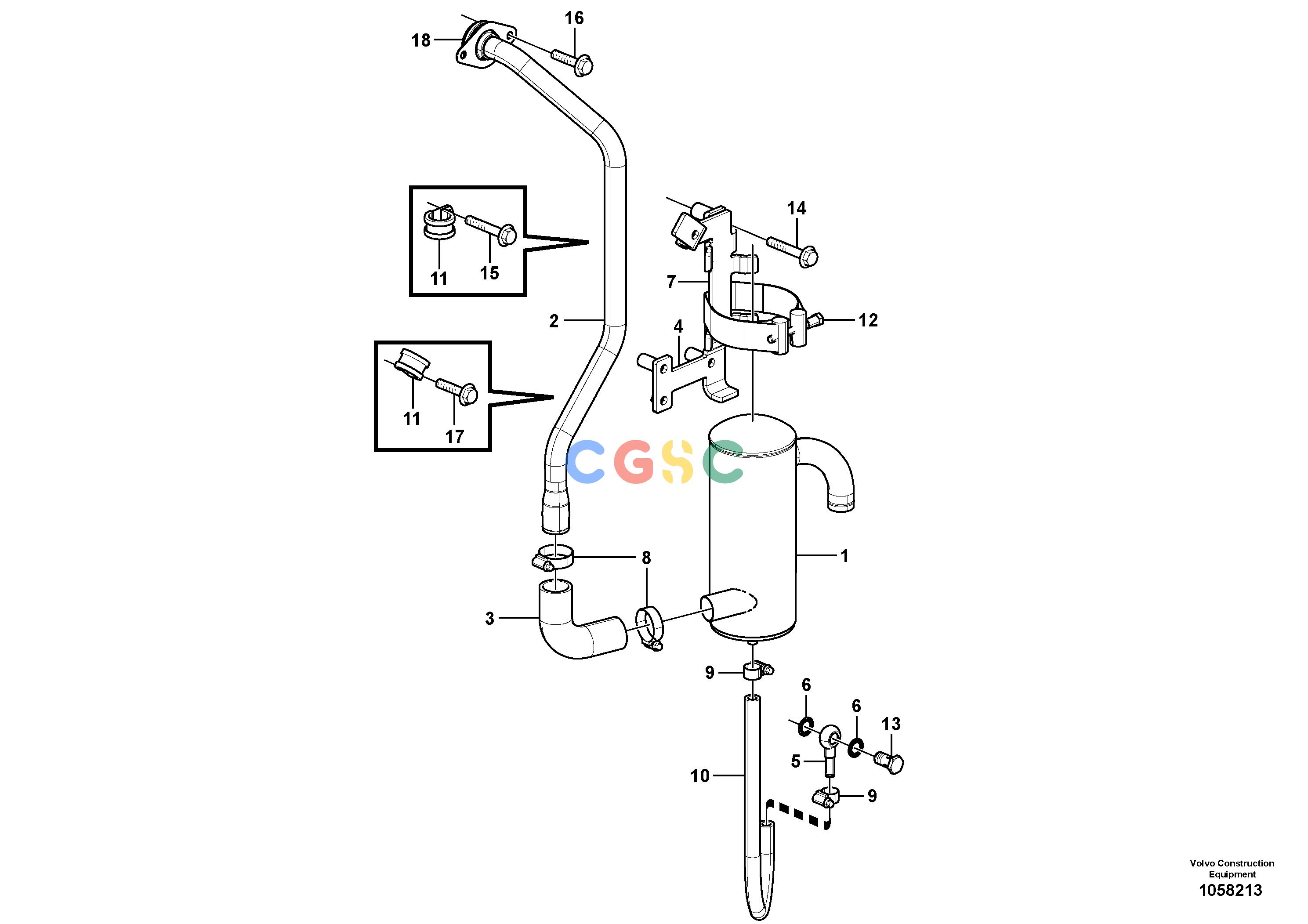

沃尔沃零件查询L250G Crankcase ventilationNone15049437-NoneVOE15049437NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
679 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11033878
|
[1] |
Oil trap
|
|
| 2. |
VOE15122541
|
[1] |
Breather pipe
|
|
| 3. |
VOE11128756
|
[1] |
Hose
|
|
| 4. |
VOE1545256
|
[1] |
Tensioning band
|
|
| 5. |
VOE11423224
|
[1] |
Tube
|
|
| 6. |
VOE20852764
|
[2] |
Sealing ring
|
|
| 7. |
VOE17200460
|
[1] |
Bracket
|
|
| 8. |
VOE994560
|
[2] |
Hose clamp
|
|
| 9. |
VOE994556
|
[2] |
Hose clamp
|
|
| 10. |
VOE983342
|
[REQ] |
Hose
|
L = 465 mm
|
| 11. |
VOE13977600
|
[2] |
Clamp
|
|
| 12. |
VOE1545257
|
[1] |
Screw
|
|
| 13. |
VOE991048
|
[1] |
Hollow screw
|
|
| 14. |
VOE13965179
|
[3] |
Screw
|
|
| 15. |
VOE965180
|
[1] |
Flange screw
|
|
| 16. |
VOE946440
|
[2] |
Flange screw
|
|
| 17. |
VOE13946173
|
[1] |
Screw
|
|
| 18. |
VOE21532258
|
[1] |
Sealing ring
|
|
