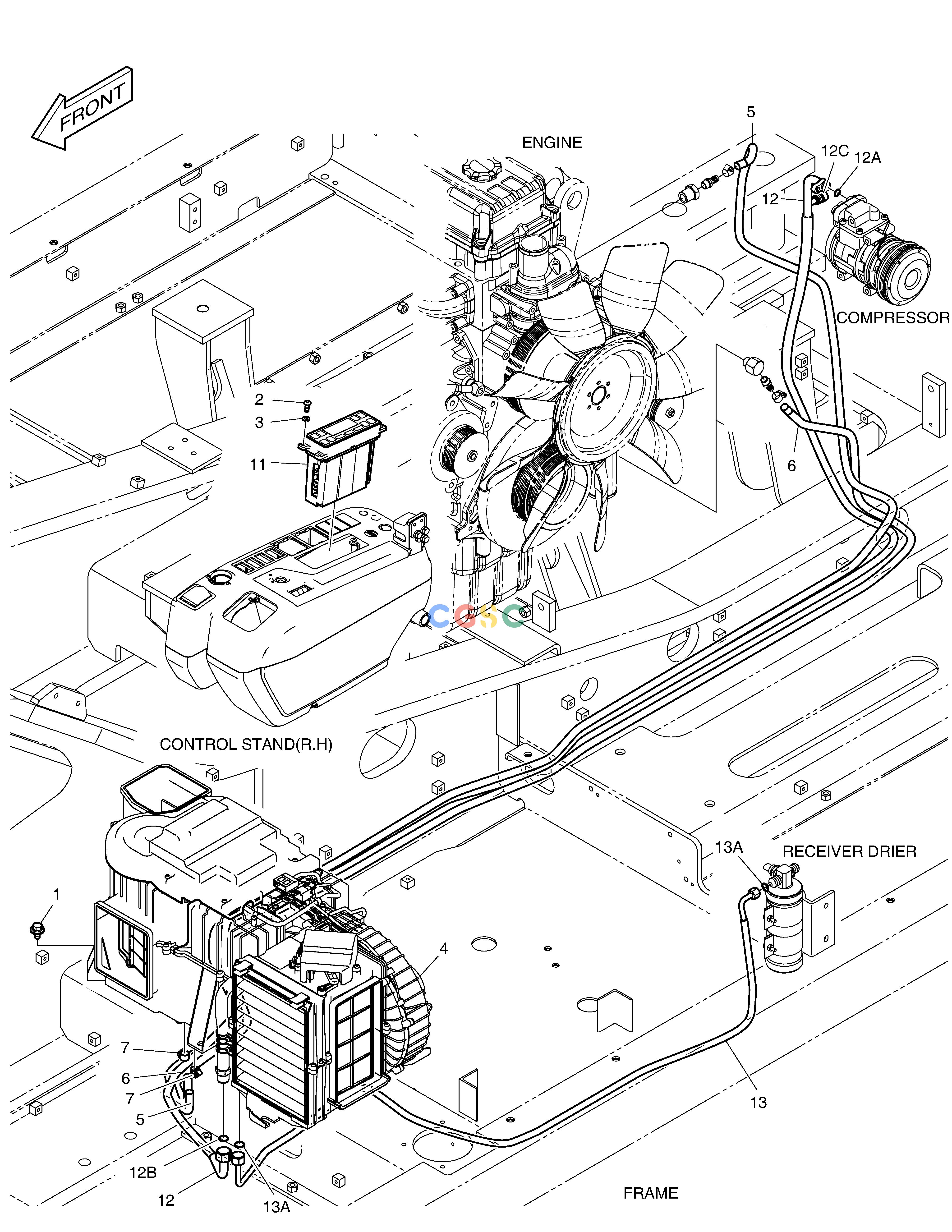

斗山零件查询VENTILATION - ROPS DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
923 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440213-00152E
|
[-] |
|
|
| -. |
440213-00152
|
[-] |
|
|
| 1. |
DS0025033
|
[6] |
BOLT
|
|
| 11. |
543-00107
|
[1] |
CONTROL PANEL,AIR CON
|
|
| 12. |
185-00385B
|
[1] |
HOSE;SUCTION
|
|
| 12A. |
2180-6086
|
[1] |
O-RING(COMP)
|
|
| 12B. |
K1011385
|
[1] |
O-RING(EVAPORATOR)
|
|
| 12C. |
1.161-00019
|
[1] |
CAP;CHECK PORT(L)
|
|
| 13. |
185-00387A
|
[1] |
HOSE;LIQUID(2)
|
|
| 13A. |
K1011388
|
[2] |
O-RING
|
|
| 2. |
S3450833
|
[4] |
BOLT
|
|
| 3. |
S5000213
|
[4] |
. WASHER
|
|
| 4. |
440205-00033
|
[1] |
|
|
| 5. |
2185-1308D9
|
[1] |
HOSE;RUBBER
|
|
| 5. |
2185-1308D7
|
[1] |
HOSE;RUBBER
|
|
| 6. |
2185-1308D6
|
[1] |
HOSE;RUBBER
|
|
| 7. |
S8450016
|
[2] |
. CLAMP
|
DS2809008
|
| 7. |
DS2809008
|
[2] |
CLIP
|
|
