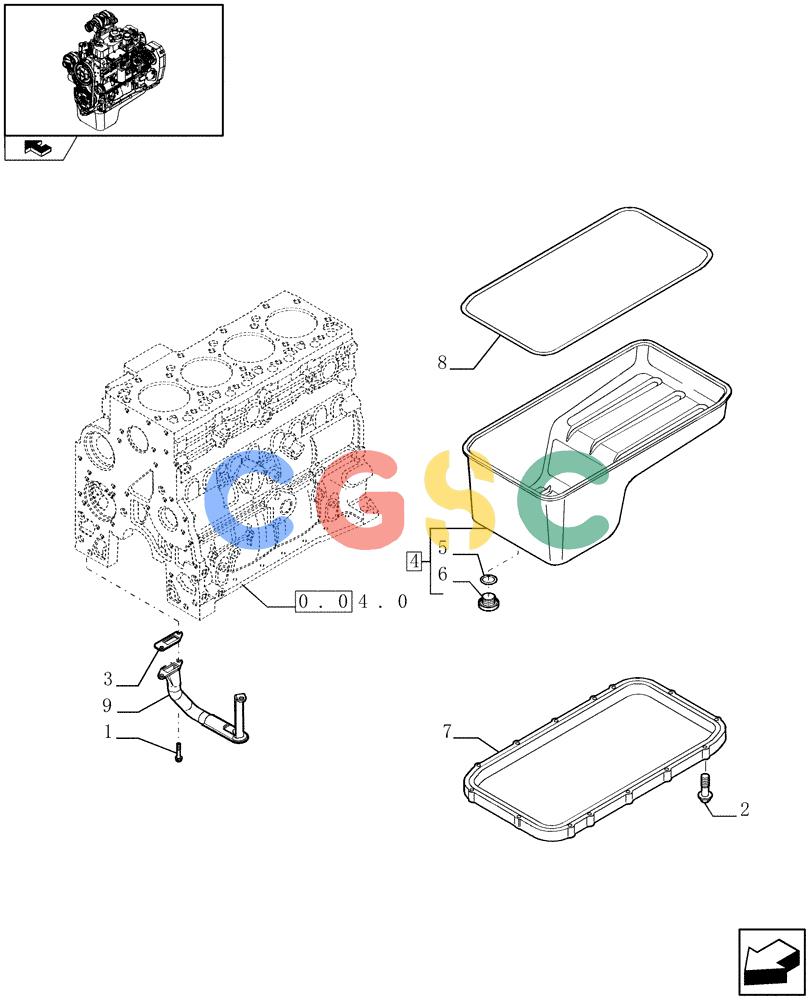

神钢零件查询(F4GE9484A J601) - ENGINE - 504103783 - 920019898 (1/13-) (0.04.2) - ENGINE OIL SUMP (504114347) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
954 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852234 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TOR Superseded by part number: 16673635 |
| 2. | 4899091 | [14] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BAS |
| 3. | 4898301 | [1] | GASKET,0.42mm Thk | TOR |
| 5. | 4895584 | [1] | O-RING,0.924mm ID x 0.103mm Width | TOR Superseded by part number: 17282280 |
| 6. | 4894139 | [1] | PLUG,Hex Soc, M22 x 1.5 | TOR |
| 7. | 4897876 | [1] | SPACER | TOR |
| 8. | 4897877 | [1] | OIL PAN GASKET SET | TOR |
