| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 300619-02746 | [-] | ||

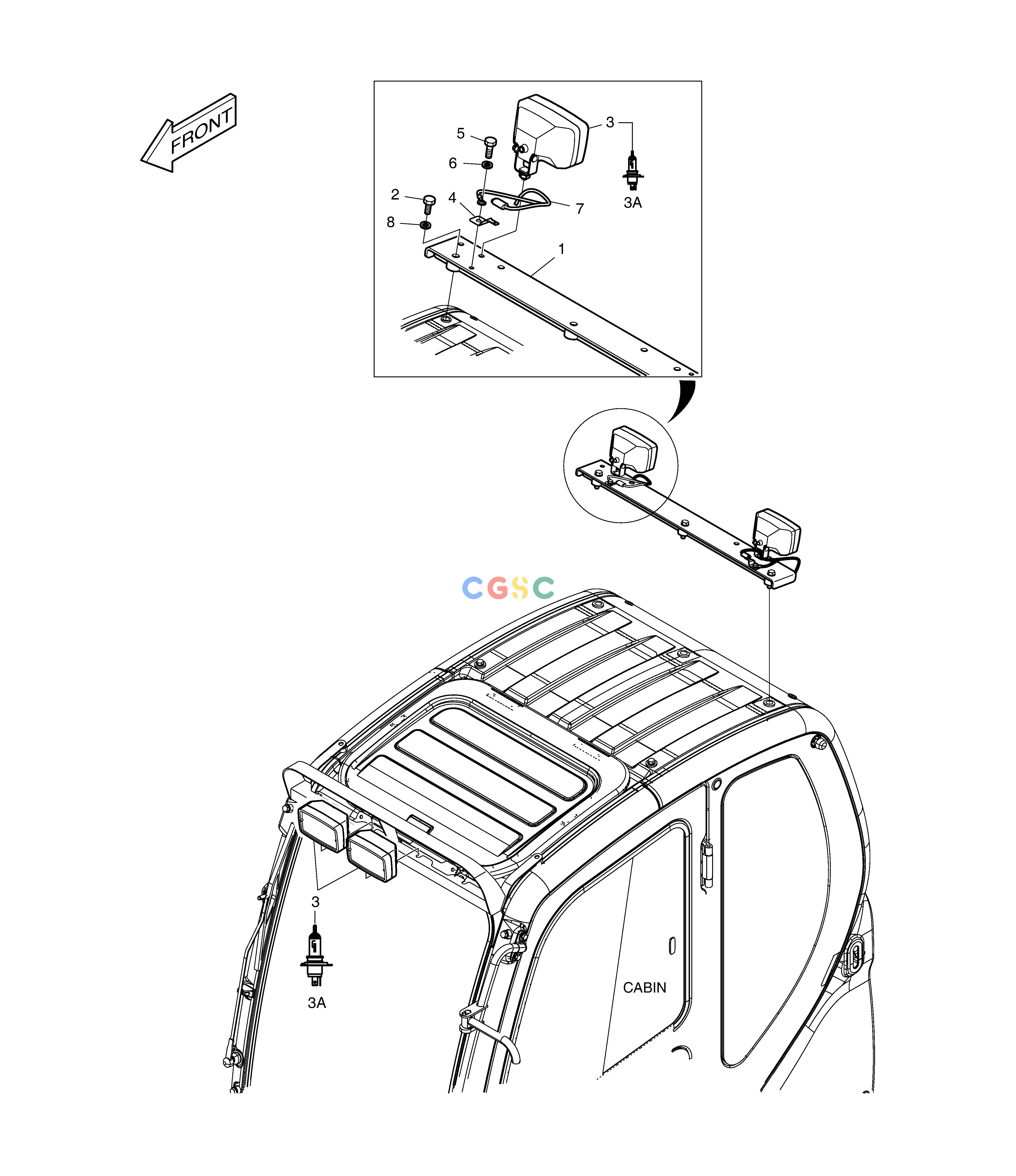

| -. | K1009403 | [-] | WORKING LAMP | |
| 1. | 195-02910C | [1] | BRACKET | |
| 2. | S0515653 | [3] | BOLT M12X1.75X50 | |
| 3. | 534-00085 | [4] | LAMP | |
| 3A. | 2515-1016D4 | [1] | . BULB,HALOGEN | |
| 4. | 2197-1661 | [2] | BRACKET | |
| 5. | S0508853 | [2] | . BOLT | |
| 6. | S5102503 | [2] | . WASHER | |
| 7. | 530-00463A | [2] | HARNESS | |
| 7. | 310207-02565 | [2] | ||
| 8. | S5010713 | [3] | WASHER;PLAIN |
