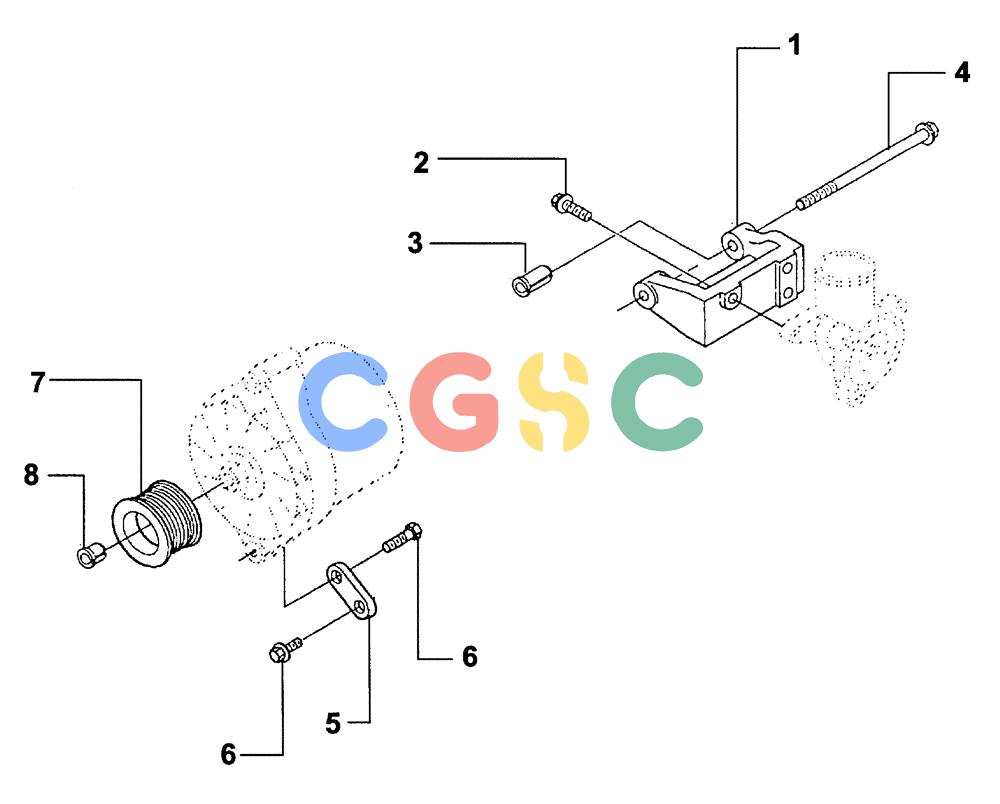

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (0.400[02]) - ALTERNATOR DC70 - DC80 - DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
843 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76192029 | [1] | SUPPORT | TOR Superseded by part number: REFERENCE |
| 2. | 75208953 | [3] | SCREW | BHB8X1,25X25 Superseded by part number: 845-8025 |
| 3. | 76191752 | [1] | SPACER | TOR Superseded by part number: 87448092 |
| 4. | 3908226 | [1] | SCREW,M10 x 1.5 x 95mm | L10X1,50X95 Superseded by part number: J908226 |
| 5. | 76191907 | [1] | TIE-ROD | TOR Superseded by part number: J903089 |
| 6. | 75208153 | [2] | SCREW | LEC8X1,25X20 Superseded by part number: 845-8020 |
| 7. | 76191628 | [1] | PULLEY | CMI Superseded by part number: 84538542 |
| 8. | 76191629 | [1] | RETAINER | CMI Superseded by part number: J908563AM |
