神钢零件查询(F4GE9484A J601) - ENGINE - 504103783 - 920019898 (1/13-) (0.08.2) - PISTON - ENGINE (504264407) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
256 次

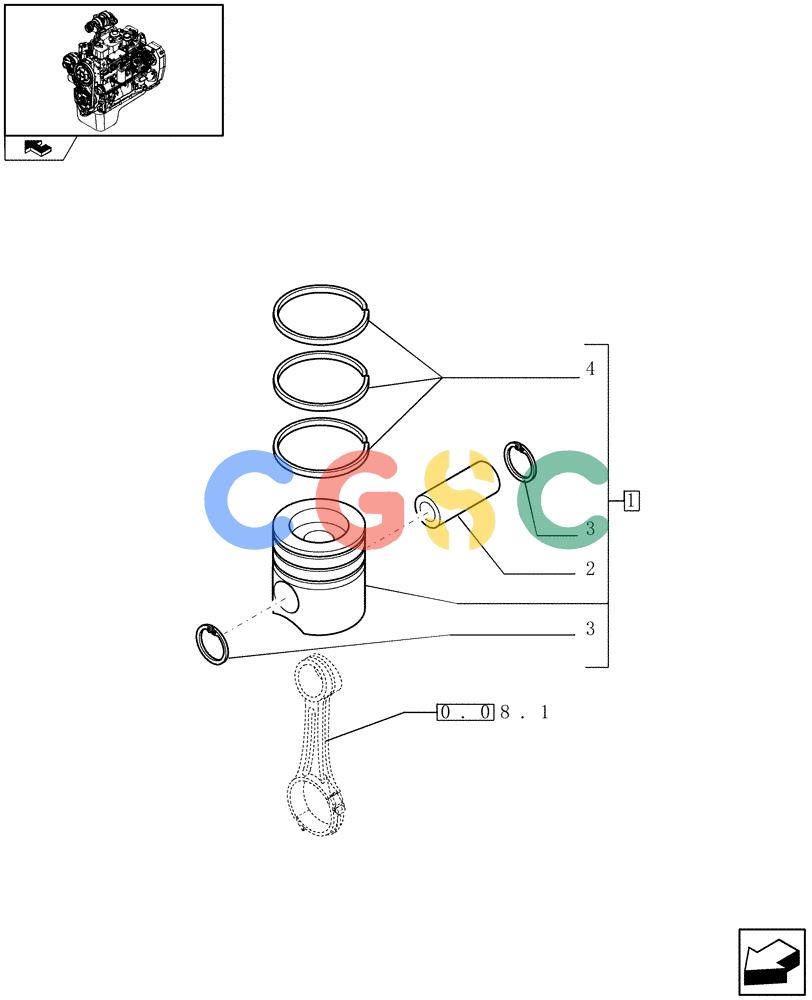

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8094740 | [4] | PISTON & RINGS KIT | TOR(STD) |
| 1. | 87317252 | [4] | PISTON & RINGS KIT,0.4mm Oversize | TOR(+ 0,4) |
| 2. | 4892712 | [1] | PISTON PIN,38mm OD x 82mm L | TOR |
| 3. | 2854030 | [2] | SNAP RING,M40.8 OD | TOR Superseded by part number: 504093651 |
| 4. | 8094739 | [1] | PISTON RINGS KIT | TOR(STD) Superseded by part number: 8094845 |
| 4. | 87316944 | [1] | SET,PISTON RINGS+0.4 | TORSET OF PISTON RINGS +0.4 |
