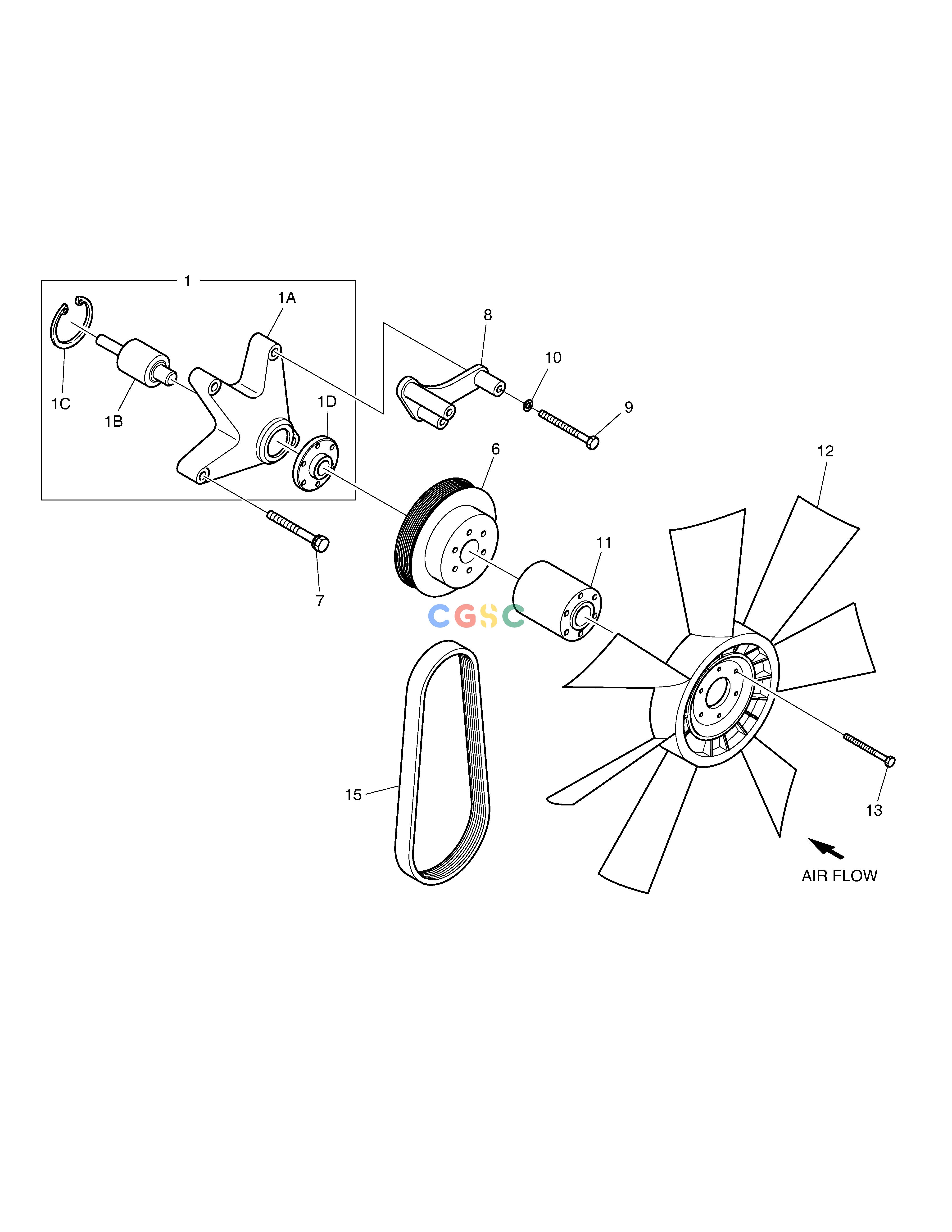

斗山零件查询COOLING FAN DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
710 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
210101-00083
|
[1] |
|
|
| 10. |
06.16731-2108
|
[2] |
WASHER;SPRING
|
|
| 11. |
430215-00024
|
[1] |
|
|
| 12. |
65.06601-5067
|
[1] |
FAN;COOLING
|
|
| 13. |
120106-00538
|
[6] |
|
|
| 15. |
130205-00420
|
[1] |
|
|
| 1A. |
65.06651-0005
|
[1] |
HOUSING;FAN DRIVE
|
|
| 1B. |
65.93410-0087
|
[1] |
. BEARING
|
|
| 1C. |
06.29020-0132
|
[1] |
. SNAP RING
|
|
| 1D. |
65.06504-0013
|
[1] |
HUB;FAN DRIVE
|
|
| 6. |
65.06606-0022A
|
[1] |
PULLEY;FAN
|
|
| 7. |
06.01943-3332
|
[2] |
BOLT ASS'Y M12X1.5X110
|
|
| 8. |
65.19103-5035
|
[1] |
BRACKET
|
|
| 9. |
06.01013-9226
|
[2] |
BOLT;HEX. M10X1.5X110
|
|
