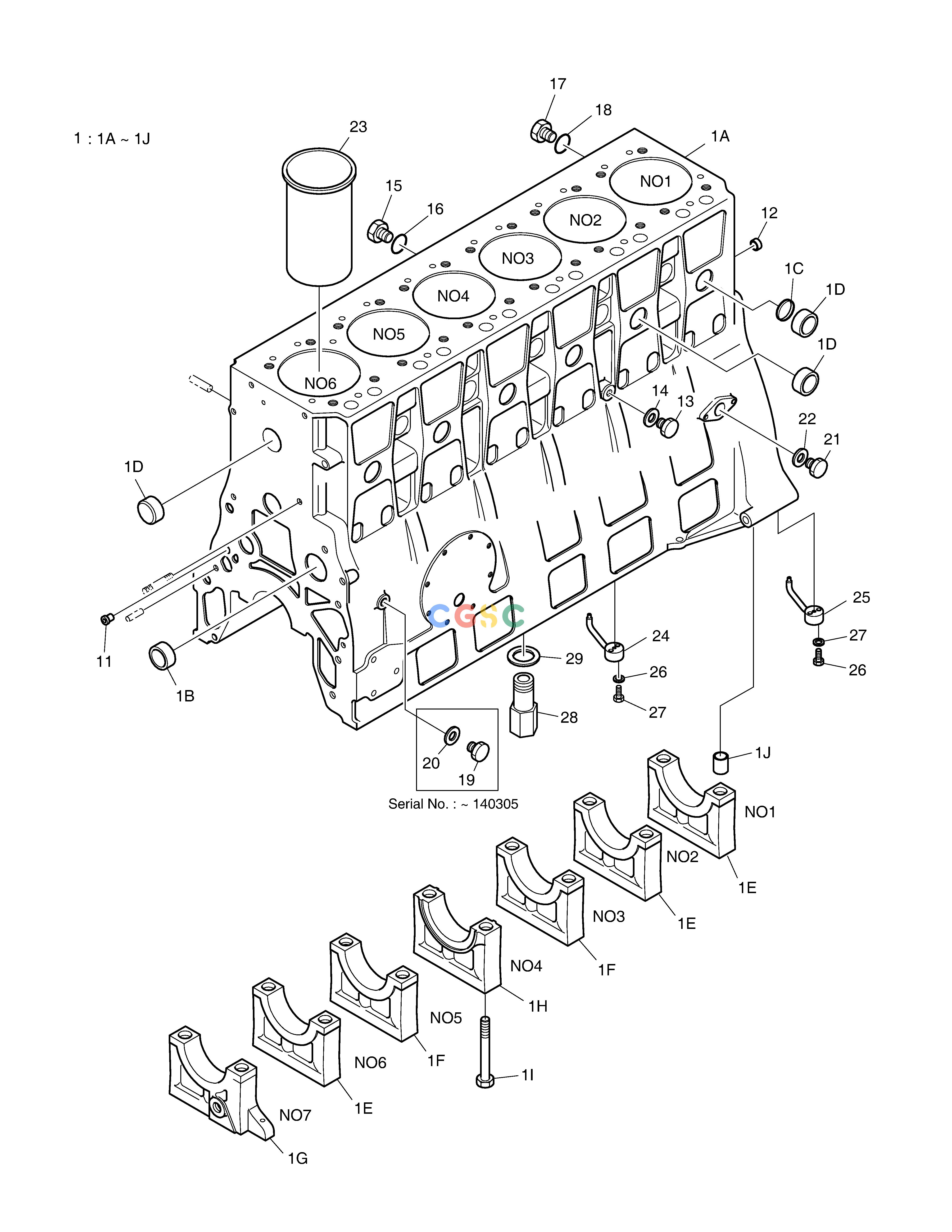

斗山零件查询CYLINDER BLOCK DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
231 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150102-00538C
|
[1] |
|
|
| 1. |
150102-00538D
|
[1] |
|
|
| 1. |
150102-00538B
|
[1] |
|
150102-00538C
|
| 11. |
65.01601-0008
|
[1] |
NOZZLE;SPRAY
|
|
| 12. |
65.91606-0041
|
[1] |
. PLUG;CORE
|
|
| 13. |
65.90310-0137
|
[1] |
SCREW;PLUG M16X1.5X20
|
|
| 14. |
06.56190-0708
|
[1] |
RING;SEAL
|
|
| 15. |
06.08041-2207
|
[1] |
|
|
| 16. |
06.56190-0718
|
[1] |
RING;SEAL
|
|
| 17. |
06.08092-2403
|
[1] |
. SCREW;PLUG M12X1.5
|
|
| 18. |
06.56190-0703
|
[1] |
RING;SEAL
|
|
| 19. |
06.08041-2205
|
[1] |
|
|
| 1A. |
150102-00536C
|
[1] |
|
|
| 1A. |
150102-00536B
|
[1] |
|
|
| 1B. |
131002-00969
|
[4] |
|
|
| 1B. |
65.04410-0016
|
[4] |
BUSH;CAM SHAFT
|
|
| 1C. |
65.90302-0048
|
[6] |
. PLUG,CORE
|
|
| 1D. |
65.91606-0037
|
[15] |
PLUG;CORE
|
|
| 1E. |
140202-00205
|
[3] |
|
|
| 1E. |
140202-00298
|
[3] |
|
|
| 1F. |
140202-00207
|
[2] |
|
|
| 1F. |
140202-00207A
|
[2] |
|
|
| 1G. |
140202-00173A
|
[1] |
|
|
| 1G. |
140202-00173B
|
[1] |
|
|
| 1H. |
140202-00206
|
[1] |
|
|
| 1H. |
140202-00206A
|
[1] |
|
|
| 1I. |
65.90020-0036B
|
[14] |
BOLT;BEARING CAP
|
|
| 1I. |
120106-00824
|
[14] |
|
|
| 1J. |
65.91710-0035B
|
[14] |
RING;LOCATING
|
|
| 1J. |
120501-03649
|
[14] |
|
|
| 20. |
06.56190-0712
|
[1] |
RING;SEAL
|
|
| 21. |
120705-00865
|
[1] |
|
|
| 22. |
06.56190-0726
|
[1] |
. SEAL;RING
|
|
| 23. |
150117-00046A
|
[6] |
|
|
| 24. |
65.01601-6006
|
[3] |
OIL SPRAY NOZZLE(NO.1. 4. 5)
|
|
| 25. |
65.01601-6007
|
[3] |
OIL SPRAY NOZZLE(NO.2. 3. 6)
|
|
| 26. |
65.90001-0126
|
[12] |
BOLT;HEX.
|
|
| 27. |
06.16044-0208
|
[12] |
WASHER;SPRING
|
|
| 28. |
65.05405-7021
|
[1] |
RELIEF VALVE ASS'Y
|
410127-00293
|
| 28. |
410127-00293
|
[1] |
|
|
| 29. |
06.56190-0704
|
[1] |
. RING;SEAL
|
|
| 29. |
06.56190-0720
|
[1] |
|
|
