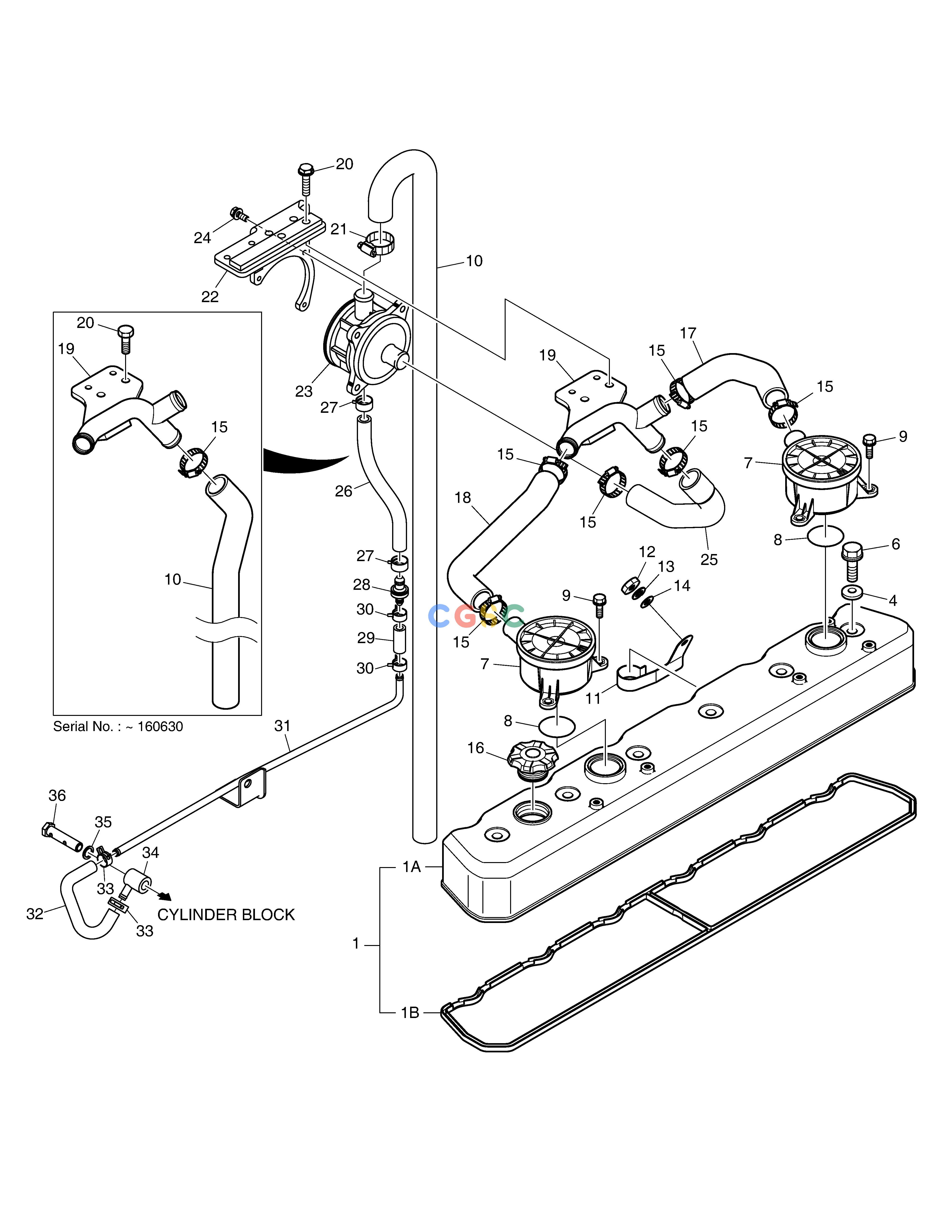

斗山零件查询CYLINDER HEAD COVER DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
147 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150106-00155
|
[1] |
|
|
| 10. |
420101-00847
|
[1] |
|
|
| 10. |
420101-01321
|
[1] |
|
|
| 11. |
65.97401-0164
|
[1] |
CLIP;BREATHER HOSE
|
|
| 12. |
06.11063-8214
|
[1] |
. NUT
|
|
| 13. |
06.15010-2311
|
[1] |
WASHER
|
|
| 14. |
06.16731-2107
|
[1] |
WASHER
|
|
| 15. |
06.67020-0105
|
[5] |
CLAMP
|
|
| 15. |
120202-00232
|
[6] |
CLAMP,HOSE
|
|
| 16. |
65.01810-5011
|
[1] |
CAP;OIL FILLER
|
|
| 17. |
420101-00828
|
[1] |
|
|
| 18. |
420101-00829
|
[1] |
|
|
| 19. |
420210-01406A
|
[1] |
|
|
| 1A. |
150106-00156
|
[1] |
|
|
| 1B. |
65.03905-0020
|
[1] |
PACKING
|
|
| 20. |
65.90020-0095
|
[4] |
BOLT;COLLARED HEX
|
|
| 20. |
06.01923-3215
|
[2] |
BOLT ASS`Y M10X25
|
|
| 21. |
120202-00233
|
[1] |
CLAMP,HOSE
|
|
| 22. |
110440-00021
|
[1] |
|
|
| 23. |
65.01801-5100
|
[1] |
. HOUSING;BREATHER
|
|
| 24. |
06.01923-3114
|
[3] |
BOLT ASS`Y M8X22
|
|
| 25. |
420101-01322
|
[1] |
|
|
| 26. |
420101-01323
|
[1] |
|
|
| 27. |
65.97402-0025
|
[2] |
CLAMP
|
|
| 28. |
410104-00025
|
[1] |
CHECK VALVE ASS'Y
|
|
| 29. |
420108-01409
|
[1] |
|
|
| 30. |
65.97402-0015
|
[2] |
CLIP;HOSE
|
|
| 31. |
420210-02430
|
[1] |
|
|
| 32. |
420101-01445
|
[1] |
|
|
| 33. |
65.97402-0015
|
[2] |
CLIP;HOSE
|
|
| 34. |
420215-00010
|
[1] |
|
|
| 35. |
06.56190-0706
|
[1] |
SEAL RING
|
|
| 36. |
120703-00006
|
[1] |
|
|
| 4. |
400603-00049
|
[6] |
GASKET;CYL. HEAD COVER
|
|
| 6. |
65.90020-0074
|
[6] |
BOLT;COLLARED HEX.
|
|
| 7. |
65.01801-5099C
|
[2] |
BREATHER HOUSING ASS'Y
|
|
| 8. |
65.96501-0033B
|
[2] |
O-RING
|
|
| 9. |
06.01923-3113
|
[6] |
BOLT ASS`Y M8X20
|
|
