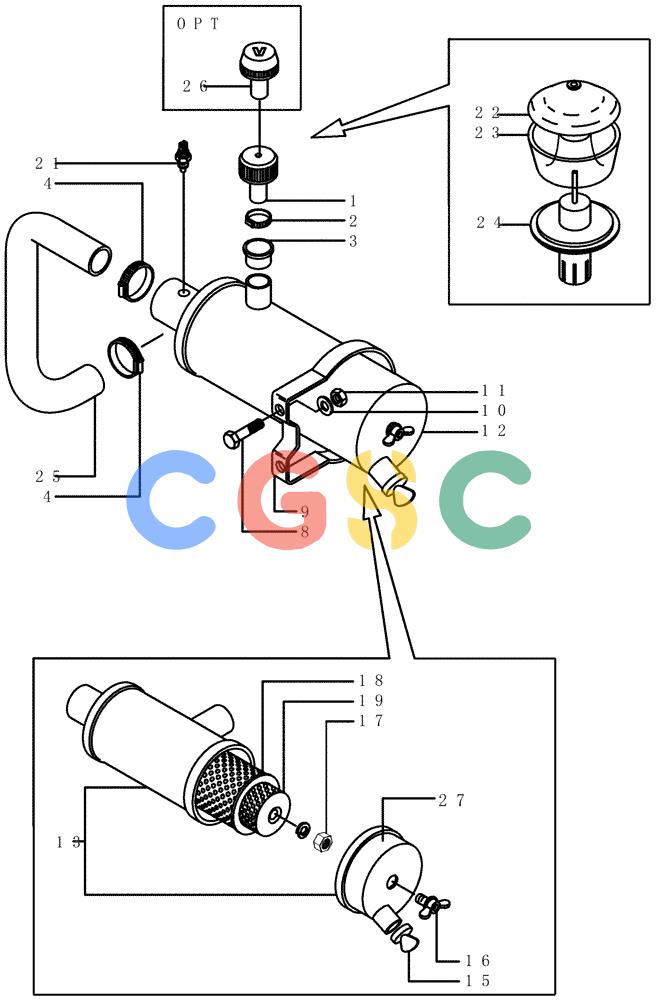

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (0.540[01C]) - AIR CLEANER DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
597 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76592878 | [1] | AIR PRE-CLEANER ASSY | MACFILTER, PRE-CLEANER |
| 2. | 76590839 | [1] | CLAMP | MACHOSE |
| 3. | 76592879 | [1] | HOSE CLIP | MACCOLLAR, RUBBER |
| 4. | 76590841 | [2] | CLAMP | MACHOSE |
| 8. | 76590845 | [4] | SCREW | MAC |
| 9. | 76592881 | [2] | CLAMP | MACBRACKET |
| 10. | 76590847 | [4] | WASHER | MAC Superseded by part number: 10519624 |
| 11. | 76590848 | [4] | NUT | MAC Superseded by part number: 15503611 |
| 12. | 76590840 | [1] | AIR CLEANER | MACASSY. |
| 13. | 76590850 | [1] | CONTAINER | MAC- ORDER 76590840 Superseded by part number: 76590840 |
| 15. | 76590851 | [1] | HYDRAULIC VALVE | MACVALVE Superseded by part number: 87033038 |
| 16. | 76590852 | [1] | SCREW | MAC Superseded by part number: 151849513 |
| 17. | 76590853 | [1] | NUT | MAC Superseded by part number: 151849510 |
| 18. | 76590854 | [1] | ELEMENT | MACFILTER, AIR - OUTER Superseded by part number: 87720629 |
| 19. | 76590855 | [1] | AIR FILTER | MACFILTER, AIR - INNER |
| 21. | 76605882 | [1] | HYDRAULIC VALVE | MACVALVE |
| 22. | 76595965 | [1] | COVER | MACCAP, PRE-CLEANER FILTER |
| 23. | 76595966 | [1] | BODY | MACPRE-CLEANER FILTER Superseded by part number: 594075 |
| 24. | 76595967 | [1] | SUPPORT | MACPRE-CLEANER FILTER |
| 25. | 76594899 | [1] | SLEEVE | MAC |
| 26. | 76605881 | [1] | AIR PRE-CLEANER ASSY | MACFILTER, PRE-CLEANER |
| 27. | 47323102 | [1] | COVER | MAC |
