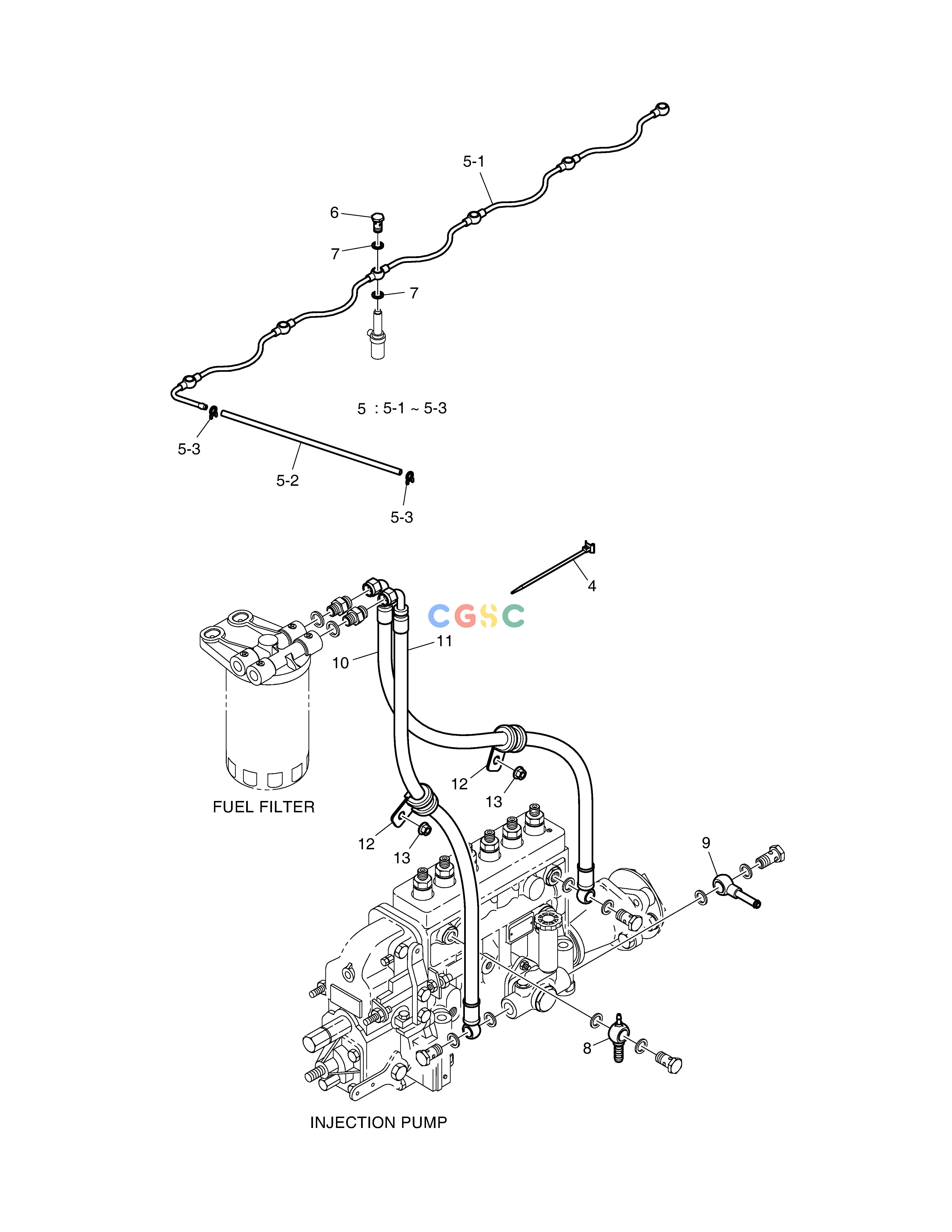

斗山零件查询FUEL PIPE DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
416 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
420103-00199
|
[1] |
|
|
| 11. |
420103-00200
|
[1] |
|
|
| 12. |
65.97401-0184
|
[2] |
CLIP;PIPE
|
|
| 13. |
65.90535-0003
|
[2] |
NUT
|
|
| 4. |
65.97460-0001
|
[1] |
BAND;TENSION
|
|
| 5. |
420204-00495
|
[1] |
|
|
| 5-1. |
65.12301-5165A
|
[1] |
FUEL PIPE ASS'Y
|
|
| 5-2. |
420103-00225
|
[1] |
|
|
| 5-3. |
65.97401-0089
|
[2] |
CLIP
|
|
| 6. |
65.98150-0042A
|
[6] |
SCREW;HOLLOW
|
|
| 7. |
06.56180-0712
|
[12] |
RING;SEAL
|
|
| 8. |
430228-00023
|
[1] |
|
|
| 9. |
65.12301-5022
|
[1] |
PIPE;FUEL(RETURN)
|
|
