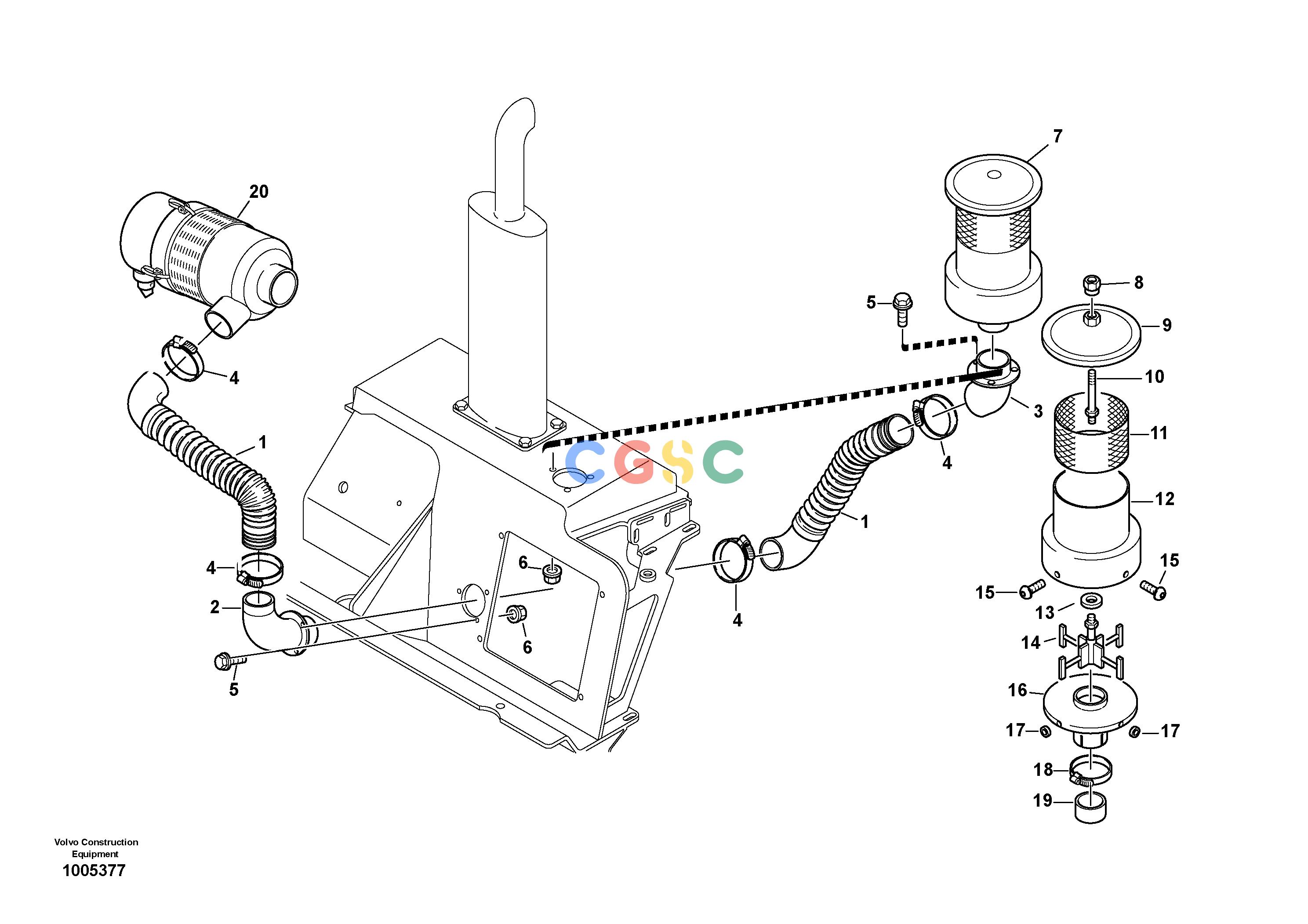

沃尔沃零件查询L25B Pre-filter - Turbo IITYPE 175 SER NO - 0499 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
202 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2806244
|
[2] |
Hose
|
|
| 2. |
VOE11305629
|
[1] |
Pipe end
|
|
| 3. |
VOE11305634
|
[1] |
Pipe end
|
|
| 4. |
VOE943481
|
[4] |
Hose clamp
|
|
| 5. |
VOE13946544
|
[6] |
Screw
|
|
| 6. |
VOE13949278
|
[6] |
Flange lock nut
|
|
| 7. |
ZM2811088
|
[1] |
Filter
|
|
| 8. |
ZM2908021
|
[1] |
Nut
|
|
| 9. |
ZM2908012
|
[1] |
Cap
|
|
| 10. |
ZM2908013
|
[1] |
Rod
|
|
| 11. |
ZM2908014
|
[1] |
Inlet filter
|
|
| 12. |
ZM2908015
|
[1] |
Housing
|
|
| 13. |
ZM2908016
|
[1] |
Washer
|
|
| 14. |
ZM2908017
|
[1] |
Spinner
|
|
| 15. |
ZM2908018
|
[4] |
Bolt
|
|
| 16. |
ZM2908019
|
[1] |
Floor
|
|
| 17. |
ZM2908020
|
[4] |
Screw
|
|
| 18. |
ZM2908022
|
[1] |
Clip
|
|
| 19. |
ZM2908023
|
[1] |
Ring
|
|
| 20. |
|
[1] |
Air filter, cpl.
|
|
