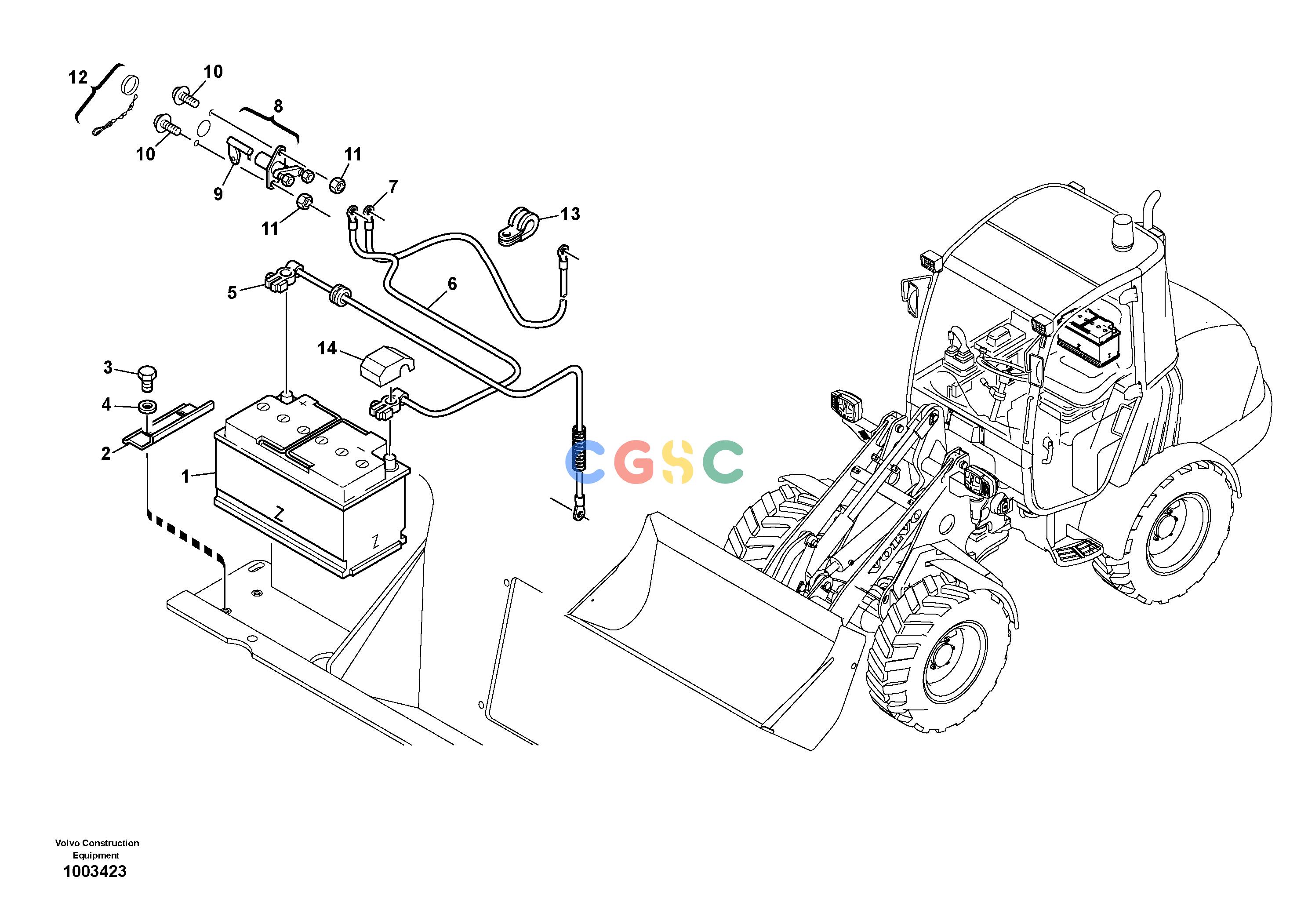

沃尔沃零件查询L25B BatteryTYPE 175 SER NO - 0499 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
369 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM7057445
|
[1] |
Battery
|
|
| 2. |
ZM2811053
|
[1] |
Battery holder
|
|
| 3. |
VOE997434
|
[2] |
Hexagon screw
|
|
| 4. |
ZM949523
|
[2] |
Washer
|
|
| 5. |
VOE11305448
|
[1] |
Electrical Cable
|
|
| 6. |
VOE11305449
|
[1] |
Electrical Cable
|
|
| 7. |
VOE11305450
|
[1] |
Electrical Cable
|
|
| 8. |
VOE3987034
|
[1] |
Main switch
|
|
| 9. |
ZM2906786
|
[1] |
Lever
|
|
| 10. |
VOE13946544
|
[2] |
Screw
|
|
| 11. |
VOE993868
|
[2] |
Hexagon nut
|
|
| 12. |
ZM2807696
|
[1] |
Chain
|
|
| 13. |
VOE11305475
|
[5] |
Clip
|
|
| 14. |
VOE14260472
|
[1] |
Terminal casing
|
|
