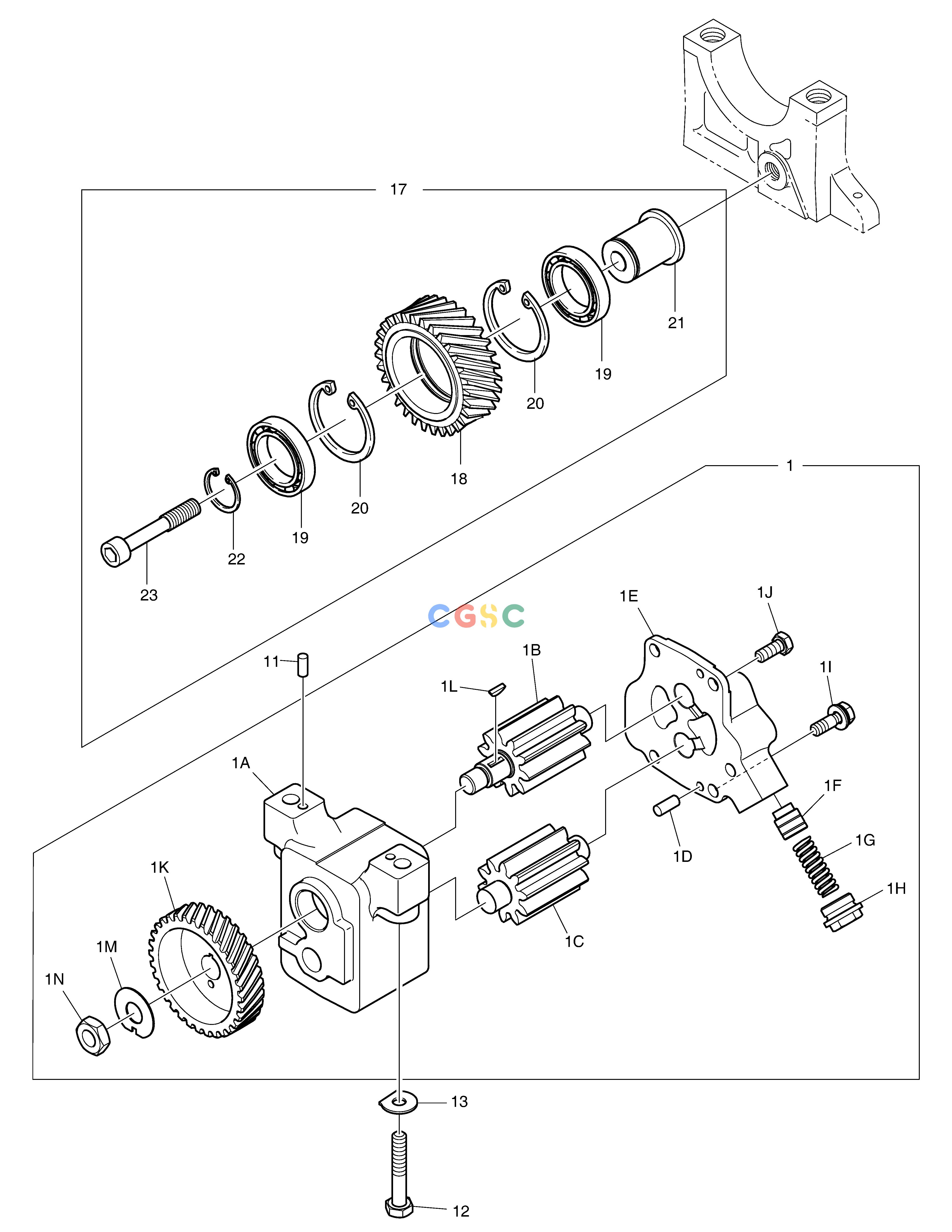

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
400915-00021A
|
[1] |
|
|
| 11. |
06.22022-0907
|
[2] |
. PIN;DOWEL
|
|
| 12. |
06.01013-9217
|
[2] |
|
|
| 13. |
65.90801-0018
|
[2] |
WASHER;LOCK
|
|
| 17. |
65.05200-6004A
|
[1] |
IDLE GEAR MOUNTING
|
|
| 18. |
65.05204-0003A
|
[1] |
GEAR;OIL PUMP IDLE
|
|
| 19. |
06.31420-0314
|
[2] |
BEARING;BALL
|
|
| 1A. |
400923-00013A
|
[1] |
|
|
| 1B. |
65.05104-5007
|
[1] |
GEAR;OIL PUMP
|
|
| 1C. |
65.05104-5006
|
[1] |
GEAR;OIL PUMP
|
|
| 1D. |
06.22022-0909
|
[2] |
PIN;DOWEL 6M6X14
|
|
| 1E. |
110508-00295
|
[1] |
|
|
| 1F. |
65.05410-0007
|
[1] |
PLUNGER;VALVE
|
|
| 1G. |
65.97601-0105
|
[1] |
SPRING;COMP.
|
|
| 1H. |
65.90310-0104
|
[1] |
SCREW;PLUG
|
|
| 1I. |
06.01923-3115
|
[2] |
BOLT ASS`Y M8X25
|
|
| 1J. |
06.01013-9107
|
[2] |
BOLT;HEX. M8X50
|
|
| 1K. |
65.05201-0008A
|
[1] |
GEAR;DRIVE
|
|
| 1L. |
06.29141-0207
|
[1] |
KEY;WOODRUFF
|
|
| 1M. |
06.16050-0311
|
[1] |
WASHER;LOCK
|
|
| 1N. |
06.11053-9217
|
[1] |
NUT;HEX.
|
|
| 20. |
06.29020-0132
|
[2] |
. SNAP RING
|
|
| 21. |
65.05205-0018
|
[1] |
PIN;IDLE GEAR
|
|
| 22. |
06.29010-0125
|
[1] |
RING;SNAP 30X2
|
|
| 23. |
65.90030-0009
|
[1] |
BOLT;SOCKET HEAD M10X60
|
|
