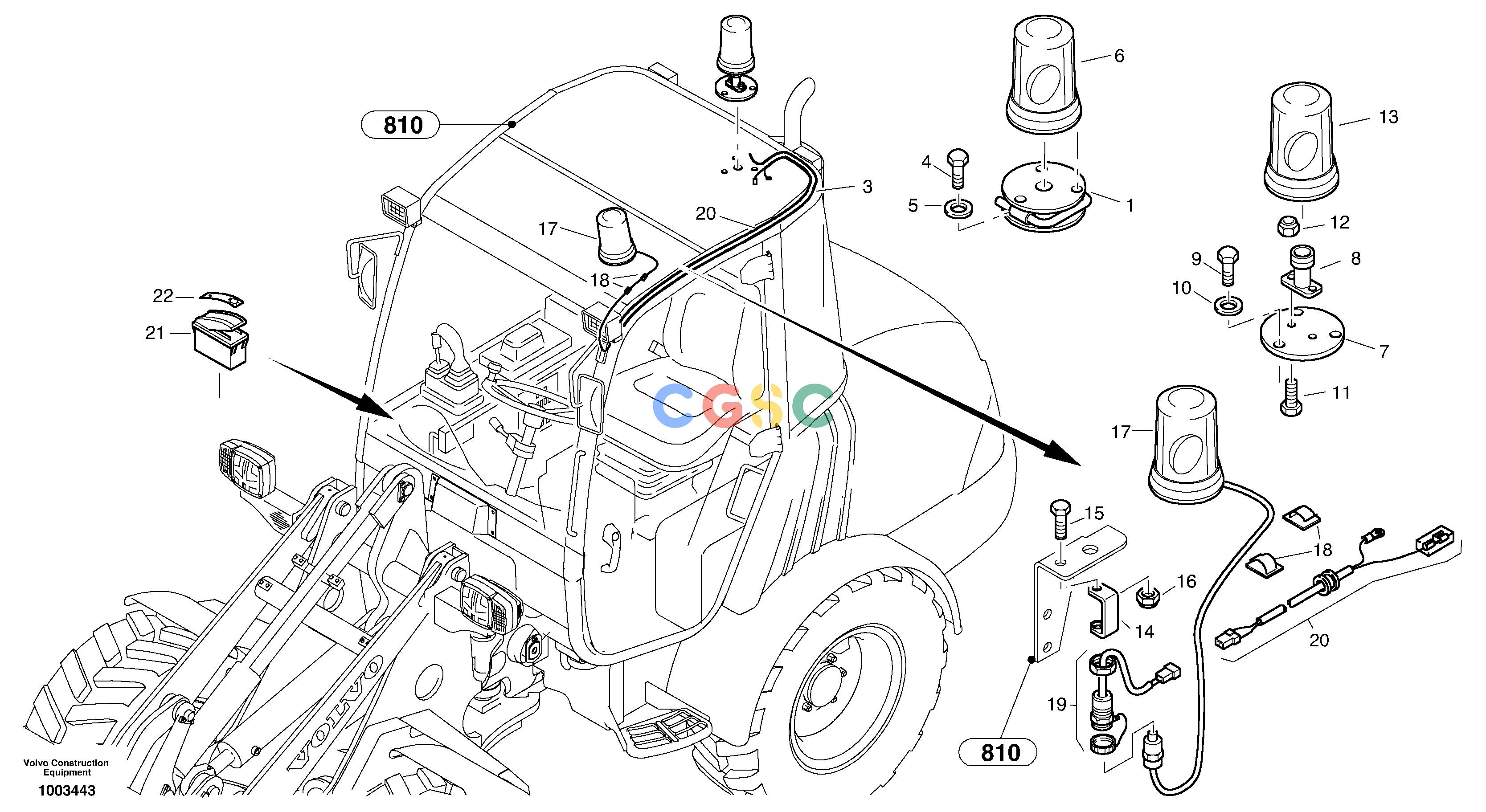

沃尔沃零件查询L25B All-round side lampTYPE 175 SER NO - 0499 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
156 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE4763789
|
[1] |
Anchorage
|
|
| 3. |
VOE11370289
|
[1] |
Electrical Cable
|
|
| 4. |
VOE955269
|
[3] |
Hexagon screw
|
|
| 5. |
VOE20460345
|
[3] |
Washer
|
|
| 6. |
VOE11170102
|
[1] |
Rotating beacon
|
|
| 7. |
ZM2907508
|
[1] |
Plate
|
|
| 8. |
VOE11370288
|
[1] |
Pipe flange
|
|
| 9. |
VOE955269
|
[3] |
Hexagon screw
|
|
| 10. |
VOE20460345
|
[3] |
Washer
|
|
| 11. |
ZM7095321
|
[2] |
Screw
|
|
| 12. |
ZM5241125
|
[2] |
Nut
|
|
| 13. |
VOE11170103
|
[1] |
Rotating beacon
|
|
| 14. |
VOE11305976
|
[1] |
Retainer
|
|
| 15. |
ZM7095321
|
[3] |
Screw
|
|
| 16. |
ZM5241125
|
[3] |
Nut
|
|
| 17. |
ZM2813711
|
[1] |
Rotating Beacon
|
|
| 18. |
VOE11305436
|
[2] |
Clip
|
|
| 19. |
VOE11305995
|
[1] |
Socket
|
|
| 20. |
VOE11305973
|
[1] |
El Cable
|
|
| 21. |
VOE11882865
|
[1] |
Rocker Switch
|
|
| 22. |
VOE11890076
|
[1] |
Symbol
|
|
