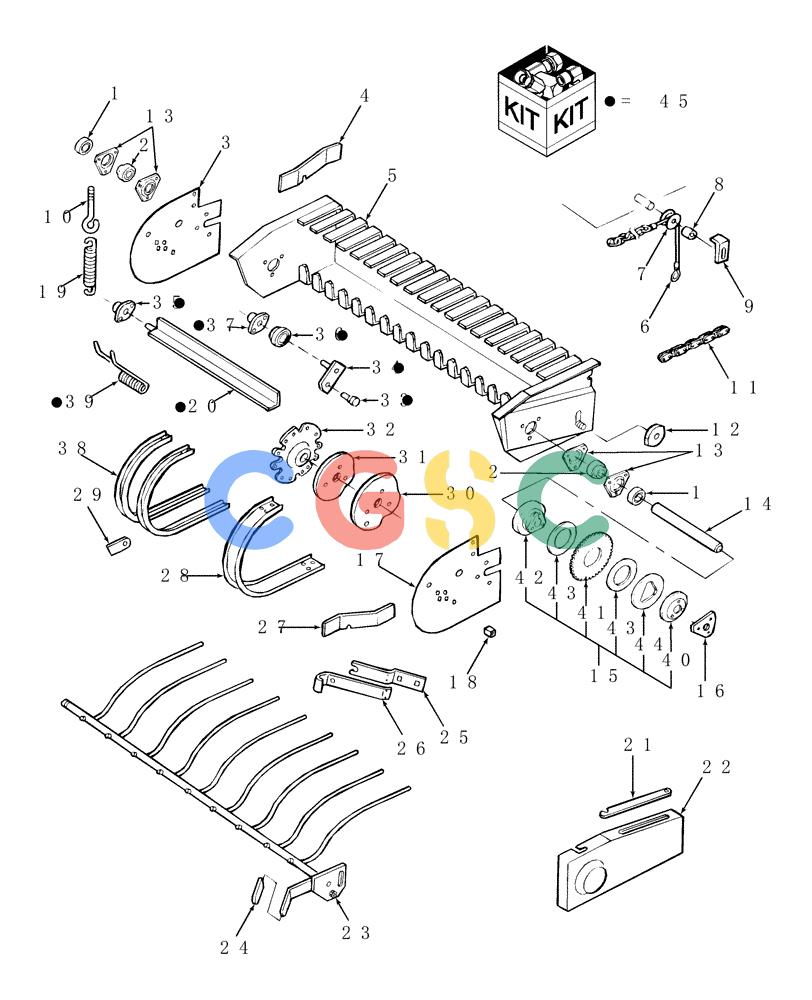

| 1. |
557115R11
|
[2] |
COLLAR
|
IH
Superseded by part number: 45876
|
| 2. |
455959R92
|
[2] |
BEARING ASSY,28.57mm ID x 62mm OD x 18mm W
|
CAS
Superseded by part number: 47577195
|
| 3. |
86635416
|
[1] |
SIDE PLATE
|
NH
RH
|
| 4. |
86635052
|
[1] |
DEFLECTOR
|
NH
RH
|
| . . |
811-6016
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 86512439
|
| . . |
322357
|
[2] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| . . |
825-1406
|
[2] |
NUT,M6, Cl 8
|
CAS
Superseded by part number: 86500688
|
| 5. |
86635350
|
[1] |
HEAD ASSY.
|
NH
|
| . . |
614-12030
|
[4] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| . . |
832-46412
|
[4] |
NUT,M12 x 1.75, Cl 8
|
CAS
Superseded by part number: 100038
|
| 6. |
9619092
|
[1] |
CABLE
|
NH
|
| . . |
614-10030
|
[1] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 43140
|
| . . |
495-21044
|
[1] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| . . |
832-46410
|
[1] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 7. |
382898
|
[1] |
PULLEY
|
NH
|
| 8. |
285394
|
[1] |
SPACER,10.32mm ID x 15.88mm OD x 14.29mm L
|
NH
|
| 9. |
86635064
|
[2] |
ANGLE
|
NH
|
| . . |
814-10120
|
[1] |
BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8
|
CAS
Superseded by part number: 86508574
|
| 10. |
45314
|
[1] |
EYEBOLT
|
NH
G2, 3/8"-16 x 7"
|
| . . |
825-1410
|
[4] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 11. |
225813
|
[1] |
CHAIN
|
NH
Conveyor Drive, #A-2050 Roller Chain, 49 Pitches (47 Regular Links) Superseded by part number: 569089R91X
|
| . . |
25810
|
[1] |
LINK CHAIN
|
GI
Offset Superseded by part number: 242-1110
|
| . . |
80025193
|
[1] |
CONNECTING LINK
|
ZED
Coupler Superseded by part number: 242-1310
|
| 12. |
86584050
|
[1] |
IDLER
|
NH
Superseded by part number: 87030996
|
| . . |
495-21056
|
[2] |
WASHER,1/2"
|
CAS
Superseded by part number: 72187265, 80700
|
| . . |
280517
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 2 3/4", Gr 5
|
NH
|
| . . |
232-4148
|
[1] |
NUT,1/2"-13, GC
|
CAS
Superseded by part number: 86992215
|
| 13. |
662649R1
|
[4] |
RETAINER
|
IH
Superseded by part number: 84320112
|
| . . |
905-10020
|
[6] |
BOLT,Hex Flg, M10 x 20mm
|
CAS
Superseded by part number: 274249
|
| 14. |
9603749
|
[1] |
SHAFT
|
NH
Pickup
|
| . . |
673
|
[6] |
WASHER,29mm ID x 41mm OD x 1.52mm Thk
|
NH
|
| . . |
733-5040
|
[1] |
COTTER PIN,M5 x 40
|
CAS
Superseded by part number: 130011
|
| . . |
126-24
|
[1] |
WOODRUFF KEY,#15, 1/4" x 1"
|
CAS
Superseded by part number: 47471
|
| 15. |
86635138
|
[1] |
SLIP CLUTCH
|
NH
|
| 16. |
86636168
|
[1] |
BRACKET
|
NH
|
| 17. |
86635414
|
[1] |
SIDE PLATE
|
NH
LH
|
| 18. |
44612
|
[2] |
SPACER
|
NH
|
| 19. |
86529708
|
[1] |
SPRING
|
NH
|
| 20. |
86635045
|
[4] |
ANGLE
|
NH
|
| 21. |
9617379
|
[1] |
STRIP-GASKET
|
NH
|
| . . |
322358
|
[1] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| . . |
614-8016
|
[1] |
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 16043224
|
| . . |
832-46408
|
[1] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| . . |
495-11034
|
[1] |
WASHER,5/16", SAE
|
CAS
Superseded by part number: 83918746, 72187257
|
| 22. |
86618993
|
[1] |
SHIELD
|
NH
Pickup
|
| 23. |
86635048
|
[1] |
SUPPORT ASSY.
|
NH
|
| . . |
811-10030
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| . . |
140045
|
[2] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 24. |
791502
|
[1] |
HANDLE GRIP
|
NH
Vinyl
|
| 25. |
86635044
|
[2] |
BRACKET
|
NH
|
| . . |
811-10020
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86512422
|
| 26. |
86635041
|
[2] |
LATCH
|
NH
|
| . . |
614-6016
|
[4] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86508568
|
| 27. |
86635050
|
[1] |
DEFLECTOR
|
NH
LH
|
| 28. |
86635007
|
[2] |
GUARD
|
NH
Pickup
|
| . . |
412093
|
[80] |
SELF-TAP SCREW
|
NH
M6 x 1 x 12
|
| 29. |
86635010
|
[2] |
BRACKET
|
NH
|
| . . |
840-1616
|
[2] |
SCREW,Pan, M6 x 16mm, Cl 4.8
|
CAS
Cylinder Hd Superseded by part number: 190003820005
|
| 30. |
86635046
|
[1] |
CAM
|
NH
Outer
|
| 31. |
86635043
|
[1] |
CAM
|
NH
Inner
|
| . . |
836-80110
|
[2] |
WOODRUFF KEY,M8 x8 11 x 27.35
|
CAS
Superseded by part number: 87038548
|
| . . |
825-51410
|
[2] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 32. |
86635065
|
[2] |
DISC
|
NH
Finger
|
| . . |
120071
|
[2] |
BOLT,Hex, M10 x 65, 8.8
|
NH
|
| 33. |
84350126
|
[4] |
CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L
|
NH
|
| . . |
495-11053
|
[8] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
| . . |
88130
|
[4] |
NUT,1/2"-20, GC
|
NH
|
| 34. |
86635216
|
[4] |
ARM
|
NH
|
| . . |
814-10050
|
[16] |
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 120069, 47110242
|
| 35. |
638025
|
[4] |
FLANGE
|
NH
|
| 36. |
54770
|
[4] |
BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm
|
NH
Superseded by part number: 84330047
|
| . . |
136521
|
[4] |
COTTER PIN,5.7mm OD x 44.45mm L
|
NH
Hardened, 1/4" x 1-3/4"
|
| 37. |
54695
|
[4] |
BEARING HOUSING
|
NH
|
| 38. |
86619049
|
[17] |
GUARD ASSY.
|
NH
Pickup, 43.9"
|
| 39. |
87394242
|
[36] |
TORSION SPRING,Coiled, 2 Prong, 186.5mm L
|
NH
Pickup, Curved, Premium, Standard
|
| 39. |
87607074
|
[36] |
TINE
|
NH
Pickup, Curved, Economy, Optional
|
| . . |
814-10060
|
[4] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 120070
|
| . . |
9618968
|
[36] |
WASHER,0.41" ID x 0.78" OD x 0.1" Thk
|
NH
Heat-Treated
|
| 40. |
121092
|
[1] |
BELLEVILLE WASHER,35mm ID x 117.5mm OD x 3.5mm Thk
|
NH
|
| 41. |
86637250
|
[1] |
DRIVEN SPROCKET
|
NH
Includes 49686 Bushing
|
| 42. |
86635141
|
[1] |
HUB
|
NH
Clutch
|
| . . |
413-620
|
[3] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187207, 88011
|
| 43. |
127434
|
[2] |
DISC,77.7mm ID x 146mm OD x 3.56mm Thk
|
NH
Friction
|
| 44. |
86627129
|
[1] |
CLUTCH PLATE
|
NH
|
| 45. |
86643779
|
[1] |
DIA KIT, HARVESTER
|
NH
Tine Bar Conversion, Refer to Fig. 023
|
