纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (3.434[01E]) - HYDRAULIC SYSTEM PIPING - DC100 STD. S/N 13111093 & DOWN; LGP S/N 13115016 & DOWN New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
661 次

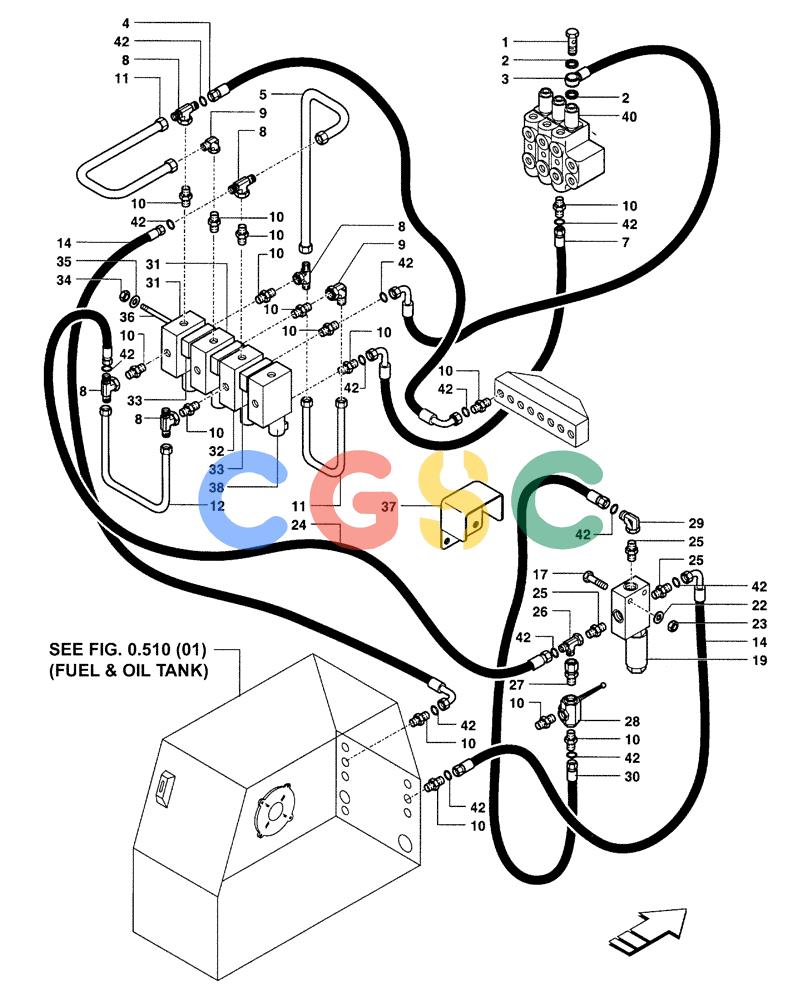

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76591049 | [1] | HYD CONNECTOR | MAC |
| 2. | 76591034 | [2] | GASKET | MAC |
| 3. | 76591051 | [1] | HOSE | MAC |
| 4. | 76591052 | [1] | HOSE | MAC |
| 5. | 76591053 | [1] | HYD. TUBE | MAC |
| 7. | 76591054 | [1] | HOSE | MAC |
| 8. | 76591038 | [4] | HYD CONNECTOR | MAC |
| 9. | 76591029 | [2] | HYD CONNECTOR | MAC |
| 10. | 76591032 | [14] | HYD CONNECTOR | MAC |
| 11. | 76591058 | [2] | HYD. TUBE | MAC |
| 12. | 76591059 | [1] | HYD. TUBE | MAC |
| 14. | 76591061 | [2] | HOSE | MAC |
| 17. | 76591064 | [2] | SCREW | MAC |
| 19. | 76591066 | [1] | HYDRAULIC VALVE | MACASSY. - SEE FIG. 2.332 (04) |
| 23. | 76590848 | [2] | NUT | MACLOCK Superseded by part number: 15503611 |
| 24. | 76593062 | [1] | HOSE | MAC |
| 25. | 76593063 | [3] | HYD CONNECTOR | MAC |
| 26. | 76591028 | [1] | HYD CONNECTOR | MAC |
| 27. | 76591073 | [1] | HYD CONNECTOR | MAC |
| 28. | 76593064 | [1] | DRAINCOCK/TAP SUPPLY | MAC |
| 30. | 76591076 | [1] | HOSE | MAC |
| 31. | 76595045 | [2] | HYDRAULIC VALVE | MACASSY. - SEE FIG. 2.332 (02) |
| 32. | 76595044 | [1] | HYDRAULIC VALVE | MACASSY. - SEE FIG. 2.332 (01) |
| 33. | 76591079 | [2] | SPACER | MAC |
| 34. | 76590934 | [4] | NUT | MAC Superseded by part number: 12574221 |
| 35. | 76590873 | [4] | WASHER | MAC Superseded by part number: 10519404 |
| 36. | 76591082 | [2] | TIE-ROD | MAC |
| 37. | 76591083 | [1] | GUARD | MAC |
| 38. | 76594900 | [1] | ELECTRO-VALVE | MACASSY. - SEE FIG. 2.332 (03) |
| 40. | 76591114 | [1] | CONTROL VALVE | MACASSY. - SEE FIG. 3.436 (01) |
| 42. | 76596047 | [18] | SEAL | MACO-RING |
