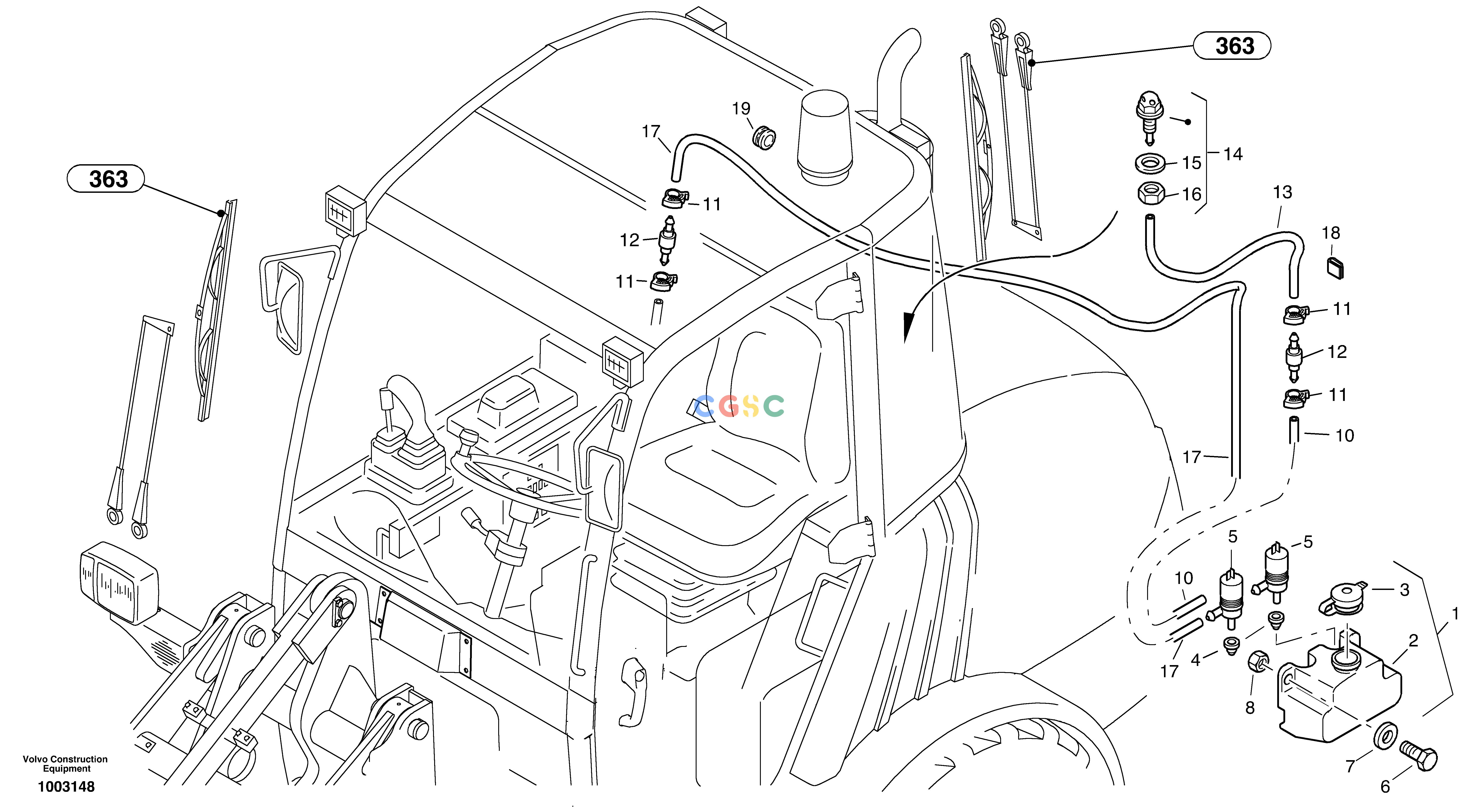

沃尔沃零件查询L25B Windscreen washer systemTYPE 175 SER NO - 0499 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
370 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2802116
|
[1] |
Tank
|
|
| 2. |
ZM2801189
|
[1] |
Tank
|
|
| 3. |
ZM2801190
|
[1] |
Cover
|
|
| 4. |
ZM2801191
|
[1] |
Gasket
|
|
| 5. |
VOE11305471
|
[1] |
Pump
|
|
| 6. |
VOE13946173
|
[2] |
Screw
|
|
| 7. |
VOE11117464
|
[2] |
Plain washer
|
|
| 8. |
VOE13945408
|
[2] |
Nut
|
|
| 10. |
ZM2806693
|
[1] |
Hose
|
|
| 11. |
ZM2811426
|
[5] |
Hose clamp
|
|
| 12. |
ZM4385703
|
[2] |
Valve
|
|
| 13. |
ZM4383092
|
[1] |
Hose
|
L = 2000MM
|
| 14. |
ZM2802123
|
[1] |
Nozzle
|
|
| 15. |
VOE13955894
|
[1] |
Washer
|
|
| 16. |
ZM7098010
|
[1] |
Nut
|
|
| 17. |
ZM4383092
|
[1] |
Hose
|
L = 1000MM
|
| 18. |
VOE11305436
|
[7] |
Clip
|
|
| 19. |
VOE11305425
|
[1] |
Grommet
|
|
