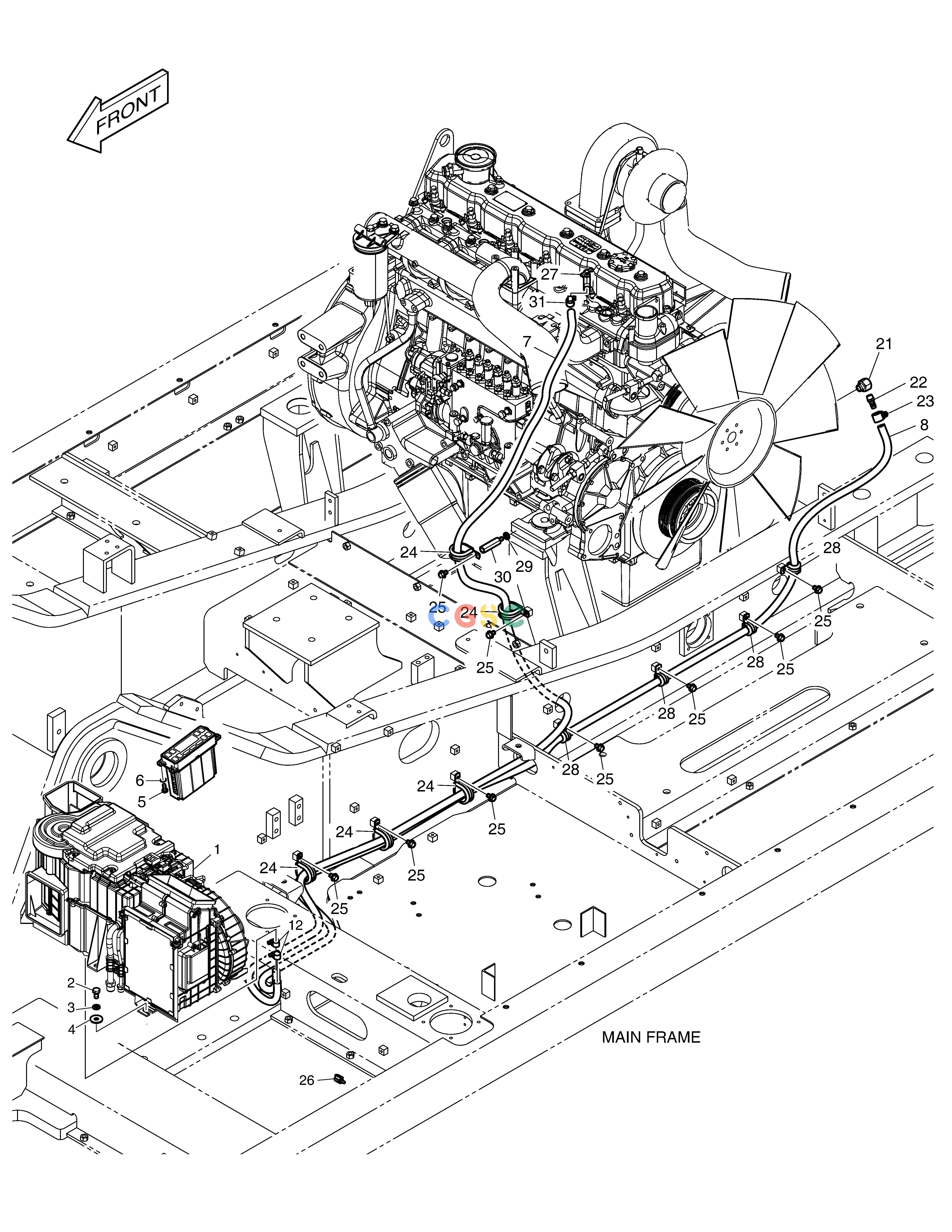

斗山零件查询AIRCONDITIONER(1) DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
196 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440213-00239
|
[-] |
|
|
| -. |
440213-00239E
|
[-] |
|
|
| 1. |
920-00127A
|
[1] |
AIRCON UNIT
|
|
| 12. |
DS2809008
|
[2] |
CLIP
|
|
| 2. |
S0508653
|
[6] |
BOLT
|
|
| 21. |
K1048095
|
[1] |
REDUCER
|
|
| 22. |
2181-2774
|
[1] |
NIPPLE;HOSE
|
DS2228012
|
| 22. |
DS2228012
|
[1] |
ADAPTER
|
|
| 23. |
DS2809008
|
[1] |
CLIP
|
|
| 24. |
124-00208D7
|
[5] |
CLIP
|
|
| 25. |
K1001029
|
[9] |
BOLT
|
|
| 26. |
547-00024A
|
[1] |
SENSOR
|
|
| 27. |
2186-9005
|
[1] |
COCK
|
|
| 28. |
124-00208D3
|
[4] |
CLIP
|
|
| 29. |
S5102603
|
[1] |
. WASHER
|
|
| 3. |
S5102503
|
[6] |
. WASHER
|
|
| 30. |
DS0026006
|
[1] |
|
|
| 31. |
S8470020
|
[1] |
CLAMP
|
|
| 4. |
2114-1058D29
|
[6] |
WASHER
|
|
| 5. |
S3450833
|
[4] |
BOLT
|
|
| 6. |
S5000213
|
[4] |
. WASHER
|
|
| 7. |
2185-1308D7
|
[1] |
HOSE;RUBBER
|
|
| 8. |
2185-1308D6
|
[1] |
HOSE;RUBBER
|
|
