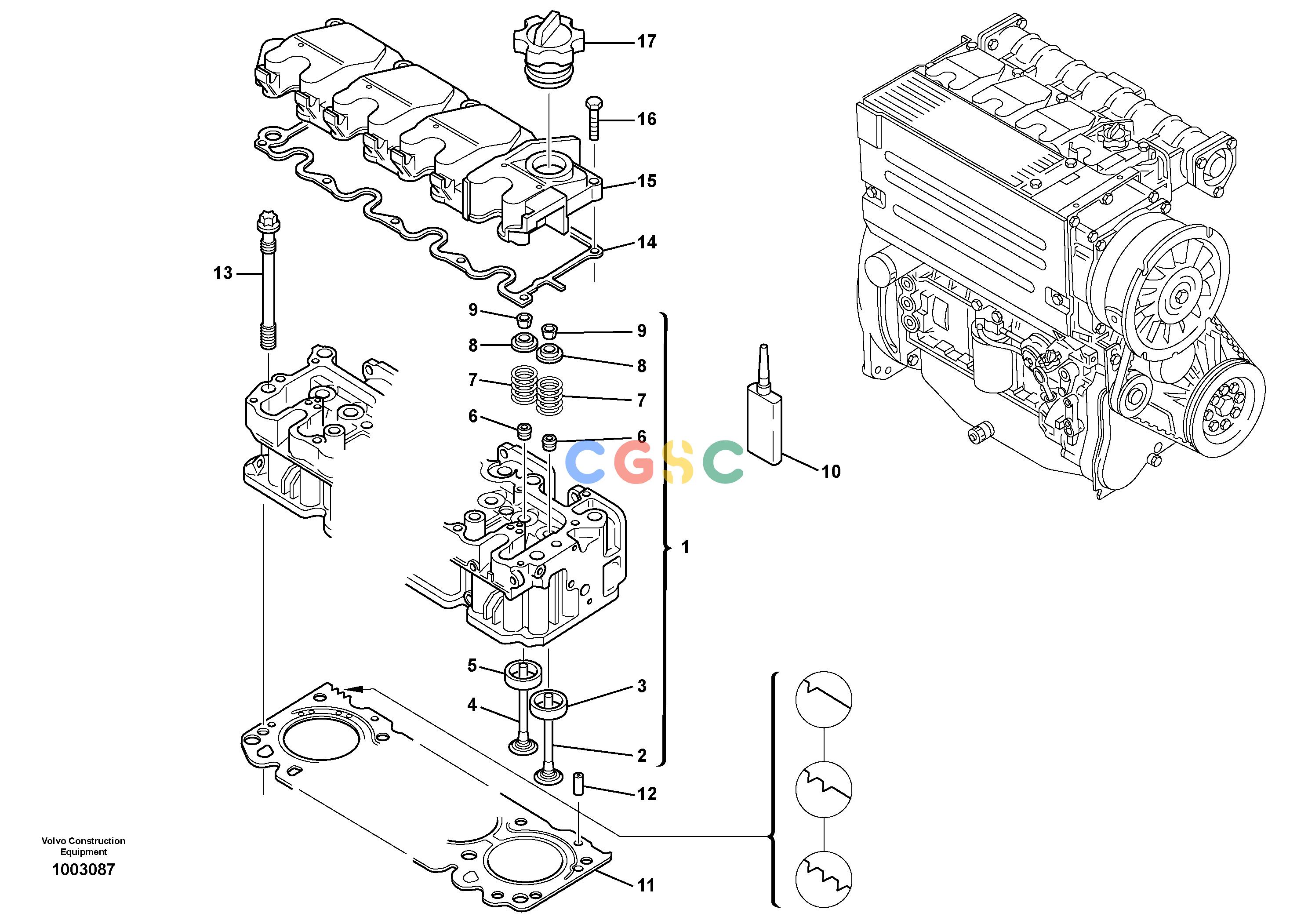

沃尔沃零件查询L25B Cylinder headTYPE 175, S/N 0500 - TYPE 176, S/N 0001 -ENGINE 11306226-ENGINE 11308622NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
522 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11370182
|
[1] |
Cylinder head
|
|
| 1. |
VOE15052804
|
|
Cylinder head
|
|
| 2. |
ZM2908491
|
[4] |
Inlet valve
|
|
| 3. |
VOE15052903
|
[4] |
Valve seat
|
42,67 MM
|
| 3. |
VOE11370185
|
[REQ] |
Valve seat ring
|
42,87 MM
|
| 3. |
VOE15052903
|
|
Valve seat
|
|
| 4. |
ZM2908492
|
[4] |
Exhaust Valve
|
|
| 5. |
VOE11370184
|
[4] |
Valve seat ring
|
37,07 MM
|
| 5. |
ZM2290500
|
[REQ] |
Valve seat ring
|
37,27 MM
|
| 5. |
VOE15052901
|
|
Valve seat
|
|
| 6. |
VOE20459855
|
[8] |
Valve seal
|
|
| 7. |
ZM2904091
|
[8] |
Pressure spring
|
|
| 8. |
VOE15053220
|
[8] |
Washer
|
|
| 8. |
VOE15053220
|
|
Washer
|
|
| 9. |
VOE20459857
|
[16] |
Valve sleeve
|
|
| 10. |
ZM2903912
|
[REQ] |
Locking agent
|
|
| 11. |
VOE15052907
|
[REQ] |
Cylinder head gasket
|
|
| 11. |
VOE15052909
|
[REQ] |
Cylinder head gasket
|
|
| 11. |
VOE15052909
|
[REQ] |
Cylinder head gasket
|
|
| 11. |
VOE15052907
|
|
Cylinder head gasket
|
|
| 11. |
VOE15052909
|
|
Cylinder head gasket
|
|
| 11. |
VOE15052899
|
|
Cylinder head gasket
|
|
| 12. |
VOE21033924
|
[2] |
Guide pin
|
|
| 13. |
ZM2904092
|
[10] |
Cylinder head screw
|
|
| 14. |
ZM2904098
|
[1] |
Gasket
|
|
| 15. |
VOE11370139
|
[1] |
Valve cover
|
|
| 16. |
ZM2908485
|
[10] |
Screw
|
M6X30
|
| 17. |
ZM2904064
|
[1] |
Filler cap
|
|
