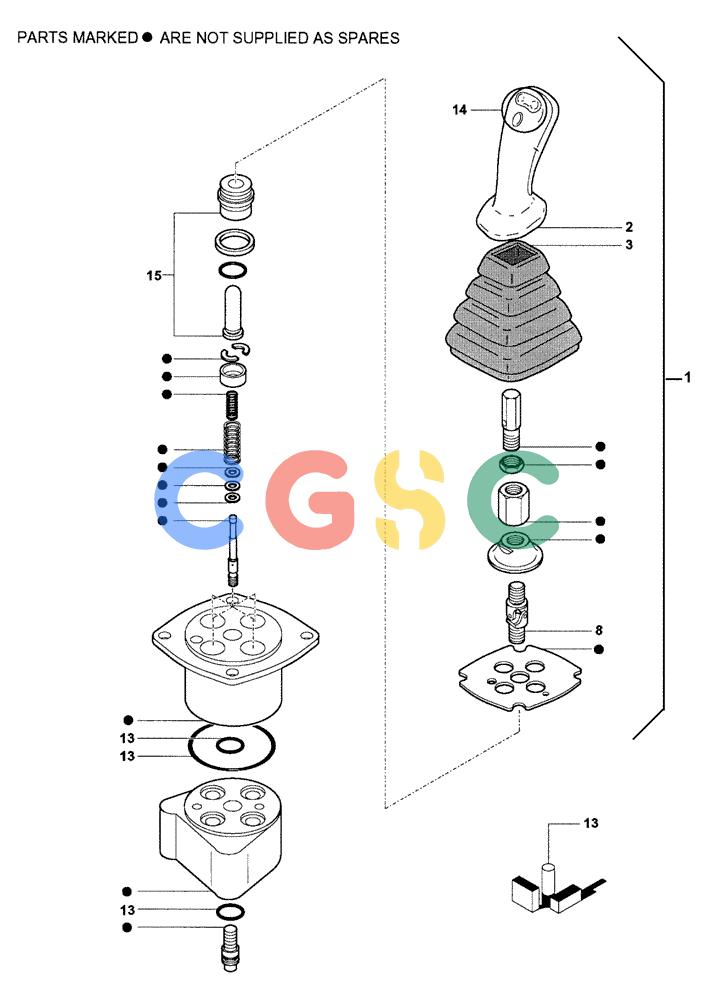

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (3.437[02E]) - CONTROL VALVE LINKAGE - DC100 STD. S/N 13111093 & DOWN; LGP S/N 13115016 & DOWN New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
522 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76593120 | [1] | HANDLE | MACMANIPULATOR ASSY. - INCLUDES REFS. 2 - 15 Superseded by part number: 76615878 |
| 2. | 76593121 | [1] | HANDLE | MAC |
| 3. | 76593116 | [1] | BOOT | MAC Superseded by part number: 72115637 |
| 8. | 76593117 | [1] | ARTICULATION | MAC Superseded by part number: 76604128 |
| 13. | 47323109 | [1] | SERVICE KIT | TOR- SEALS Superseded by part number: 87548848 |
| 14. | 71436610 | [1] | KIT | TOR- BUTTON Superseded by part number: 76066716 |
| 15. | 47323110 | [1] | PISTON | TOR Superseded by part number: 87614023 |
