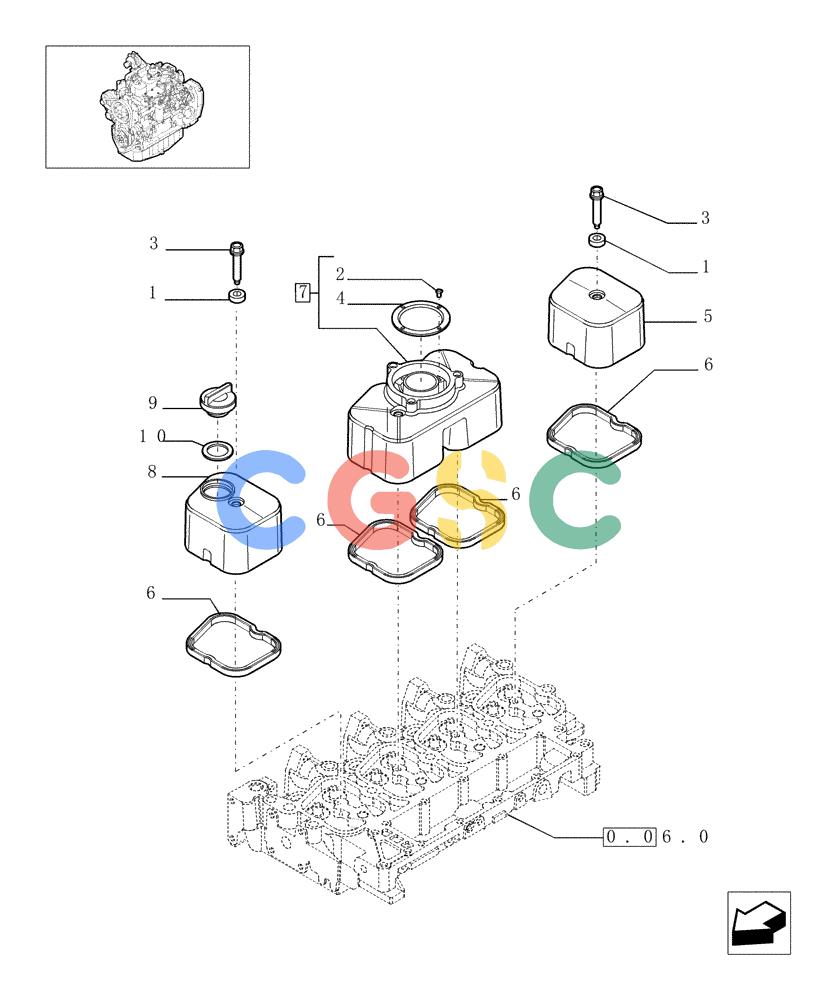

神钢零件查询(F4GE9484A J602) - ENGINE 504209732 - 87527545 (1/07-12/10) (0.06.3[01]) - CYLINDER HEAD COVERS (504063159) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
422 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | J935449 | [4] | ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L | CAS Superseded by part number: 4895360 |
| 2. | 2830281 | [4] | SELF-TAP SCREW,M2.9 x 6.5 | TOR Superseded by part number: 16784504 |
| 3. | 4895214 | [4] | SCREW,Flng, M8 x 1.25 x 34.549mm, Cl 8.8 | TOR |
| 4. | 2830775 | [1] | BAFFLE | TOR |
| 5. | 2852032 | [1] | VALVE COVER | TOR Superseded by part number: 504065040 |
| 6. | 2852033 | [4] | GASKET,7mm Thk | TOR Superseded by part number: 504053522 |
| 7. | 2830784 | [1] | VALVE COVER | TOR- ASSY |
| 8. | 2852894 | [1] | VALVE COVER | TOR Superseded by part number: 504065039 |
| 9. | 4895202 | [1] | FILLER CAP | TOR |
| 10. | 4895296 | [1] | SEALING RING,30mm ID x 48mm OD x 3mm Thk | TOR |
