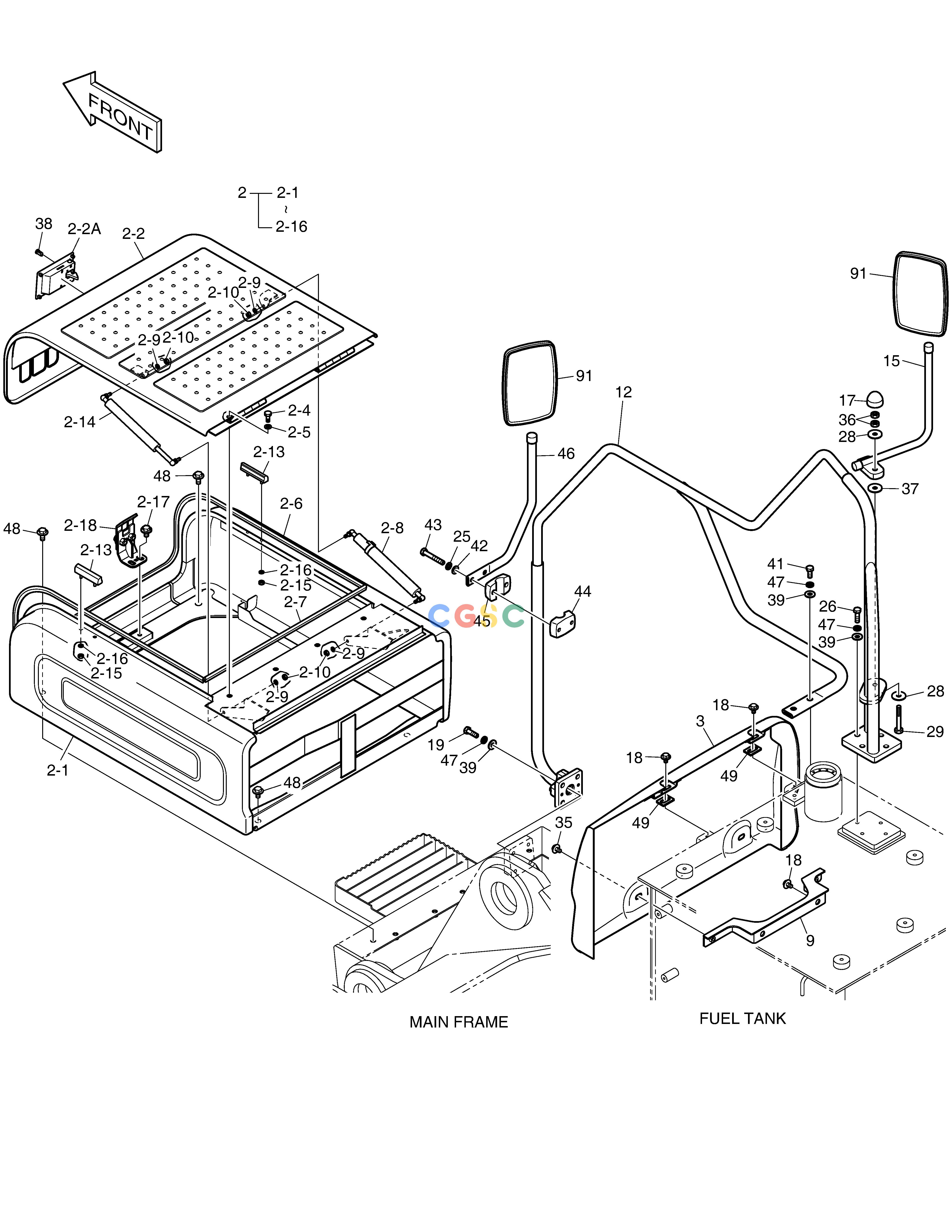

斗山零件查询BATTERY COVER DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
606 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-04345
|
[-] |
|
|
| 12. |
101582-00266A
|
[1] |
|
|
| 15. |
K1038107A
|
[1] |
STAY,MIRROR
|
|
| 17. |
161-00580
|
[1] |
CAP,RUBBER
|
|
| 18. |
DS0025015
|
[4] |
BOLT
|
|
| 19. |
S0560666
|
[4] |
BOLT
|
|
| 2. |
110503-00009H
|
[1] |
|
|
| 2-1. |
NA00394
|
[1] |
COVER
|
|
| 2-10. |
S4012533
|
[4] |
NUT
|
|
| 2-13. |
K1005305A
|
[2] |
. STOPPER;RUBBER
|
|
| 2-14. |
DS1001060
|
[1] |
SPRING;GAS
|
|
| 2-15. |
S4012333
|
[4] |
NUT
|
|
| 2-16. |
S5102303
|
[4] |
. WASHER
|
|
| 2-17. |
DS0025015
|
[2] |
BOLT
|
|
| 2-18. |
110406-01255
|
[1] |
. BRACKET,CATCH
|
|
| 2-2. |
110503-00007A
|
[1] |
|
|
| 2-2A. |
125-00071B
|
[1] |
LATCH;FRONT
|
|
| 2-4. |
S0512066
|
[4] |
. BOLT
|
|
| 2-5. |
S5010613
|
[4] |
WASHER
|
|
| 2-6. |
NA01025
|
[1] |
|
|
| 2-7. |
NA01025
|
[1] |
|
|
| 2-8. |
400315-00026
|
[1] |
. CYLINDER,GAS
|
|
| 2-9. |
S5102503
|
[4] |
. WASHER
|
|
| 25. |
S5102703
|
[2] |
WASHER
|
|
| 26. |
S0560566
|
[4] |
BOLT
|
|
| 28. |
2114-1058D68
|
[2] |
WASHER
|
|
| 29. |
S0561066
|
[1] |
BOLT
|
|
| 3. |
110508-18008
|
[1] |
|
|
| 35. |
DS0025014
|
[2] |
BOLT
|
|
| 36. |
S4012733
|
[2] |
NUT
|
|
| 37. |
2114-1058D54
|
[1] |
WASHER
|
|
| 38. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
| 39. |
DS0401239
|
[10] |
|
|
| 41. |
S0515366
|
[2] |
BOLT
|
|
| 42. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 43. |
S0561353
|
[2] |
BOLT M12X1.75X80
|
|
| 44. |
120203-00403
|
[1] |
|
|
| 45. |
120203-00402
|
[1] |
|
|
| 46. |
101582-00406
|
[1] |
|
|
| 47. |
S5102705
|
[10] |
WASHER,SPRING
|
|
| 48. |
DS0025027
|
[4] |
BOLT
|
|
| 49. |
130702-00165
|
[2] |
|
|
| 9. |
K1002613A
|
[1] |
BRACKET
|
|
| 91. |
K1040606
|
[2] |
MIRROR,SIDE
|
|
