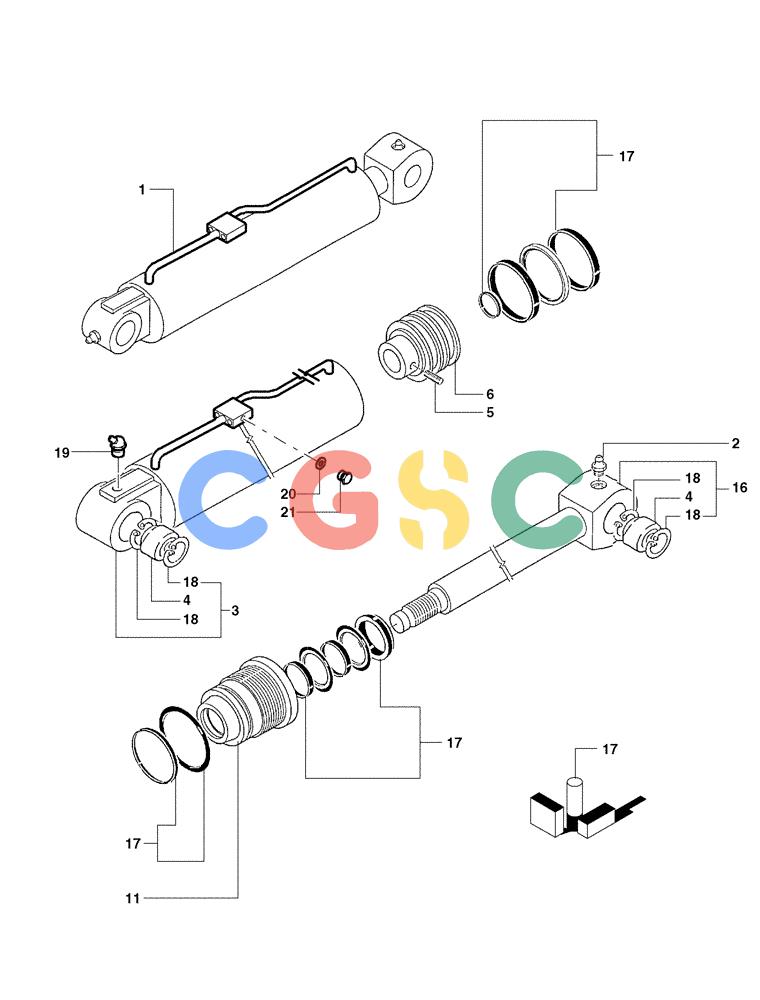

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (3.445[02E]) - ANGLE CYLINDERS DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
939 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76605935 | [2] | CYLINDER | MACYLINDER |
| 2. | 76591112 | [1] | LUBE NIPPLE | MACGREASE FITTING |
| 3. | 76605938 | [1] | CYLINDER | MACCYL. TUBE |
| 4. | ARTICULATIO | [2] | ARTICULATION | NHBEARING Superseded by part number: 76592911 |
| 5. | 76591222 | [1] | SCREW | MAC |
| 6. | 76591223 | [1] | PISTON | MAC |
| 11. | 76591228 | [1] | BASE PLATE | MACBUSHING GUIDE |
| 16. | 76592860 | [1] | ROD | MACCYL. ROD |
| 17. | 76591234 | [1] | SEAL KIT | MAC Superseded by part number: V282183, U282182, 8210196, 8207696, 8207016, 8204583, 8204581, 1422270 |
| 18. | 76591125 | [4] | LOCKING RING | MACSNAP RING Superseded by part number: 11061376 |
| 19. | 76598253 | [1] | LUBE NIPPLE | MACGREASE FITTING Superseded by part number: 13408411 |
| 20. | 76591034 | [1] | GASKET | MAC |
| 21. | 76591033 | [1] | PLUG | MAC |
