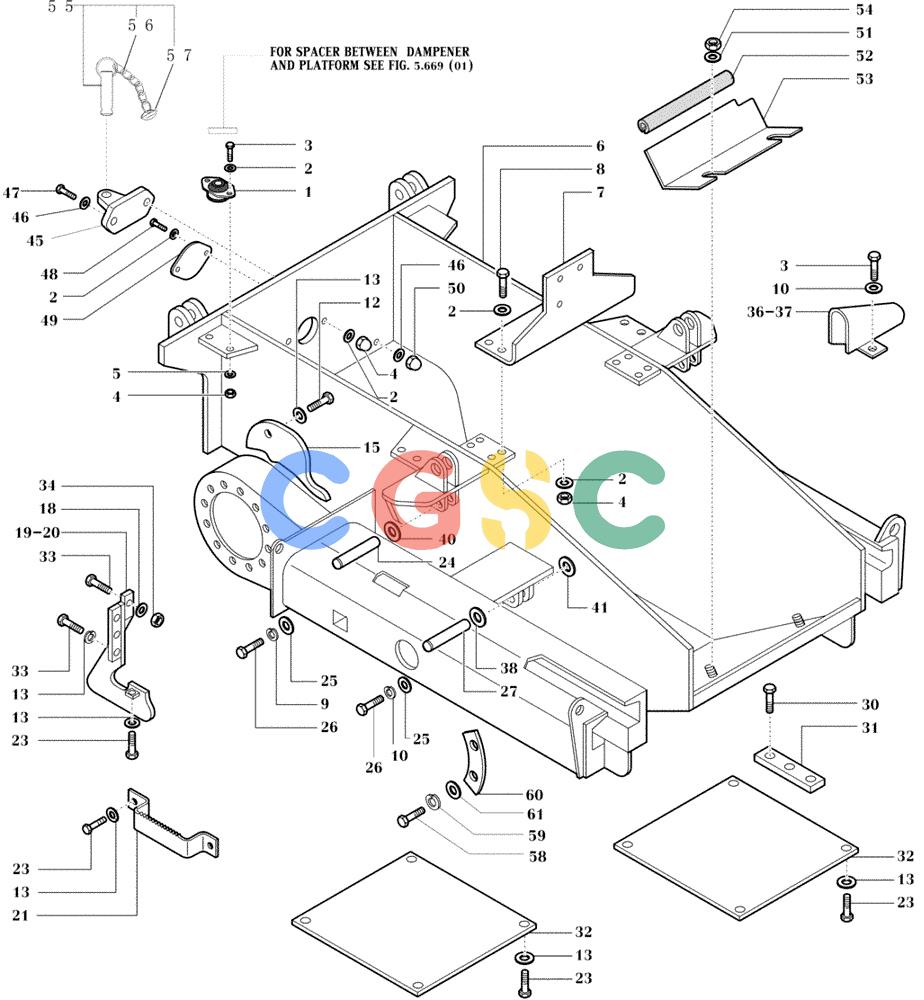

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (9.200[01C]) - MAIN FRAME - DC100 LGP New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
696 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76605335 | [4] | INSULATOR BLOCK | CMIDAMPENER |
| 2. | 76590713 | [20] | WASHER | MAC Superseded by part number: 14496621 |
| 3. | 76590949 | [12] | SCREW | MAC Superseded by part number: 120112 |
| 4. | 76590715 | [14] | NUT | MAC |
| 5. | 76590716 | [8] | WASHER | MAC |
| 6. | 76606075 | [1] | FRAME | MACMAIN |
| 7. | 76605342 | [1] | SUPPORT | MAC |
| 8. | 76592867 | [4] | SCREW | MAC Superseded by part number: 83931335 |
| 9. | 76598212 | [2] | LOCK WASHER | MAC Superseded by part number: 11190679 |
| 10. | 76598239 | [6] | LOCK WASHER | MAC Superseded by part number: 76605521 |
| 12. | 76590722 | [8] | SCREW | MAC Superseded by part number: 43167 |
| 13. | 76590723 | [21] | LOCK WASHER | MAC Superseded by part number: 10517274 |
| 15. | 76605948 | [2] | COVER | MAC |
| 18. | 76590724 | [8] | WASHER | MAC Superseded by part number: |
| 19. | 76605949 | [1] | SLIDE GUIDE | MAC- RH |
| 20. | 76605950 | [1] | SLIDE GUIDE | MAC- LH |
| 21. | 76609826 | [2] | FOOT BOARD | MAC |
| 23. | 76598277 | [14] | SCREW | MAC |
| 24. | 76590734 | [2] | PIN | MAC |
| 25. | 76593068 | [4] | WASHER | MAC |
| 26. | 76591115 | [4] | SCREW | MAC Superseded by part number: 11112224 |
| 27. | 76598278 | [2] | PIN | MAC |
| 30. | 76590740 | [24] | SCREW | MAC Superseded by part number: 30604 |
| 31. | 76590741 | [8] | SLIDING PAD | MAC |
| 32. | 76598780 | [2] | COVER | MAC |
| 33. | 76605951 | [4] | SCREW | MAC Superseded by part number: 120093 |
| 34. | 76591294 | [8] | NUT | MAC Superseded by part number: 12577411 |
| 36. | 76606752 | [1] | SHIELD | MAC- LH |
| 37. | 76606753 | [1] | SHIELD | TOR- RH |
| 38. | 76592991 | [2] | WASHER | MAC |
| 40. | 76590735 | [2] | WASHER | MAC |
| 41. | 76592992 | [4] | WASHER | MAC |
| 45. | 76595954 | [1] | TOW HOOK | MAC- BRACKET |
| 46. | 76595955 | [4] | WASHER | MAC Superseded by part number: 86511327 |
| 47. | 76595956 | [2] | SCREW | MAC |
| 48. | 76595957 | [2] | SCREW | MAC |
| 49. | 76595958 | [1] | COVER | MAC |
| 50. | 76595959 | [2] | NUT | MAC Superseded by part number: 12577721 |
| 51. | 76590895 | [2] | WASHER | MAC Superseded by part number: 86639313 |
| 52. | 76595960 | [1] | RUBBER SEAL | MACTRIM |
| 53. | 76605952 | [1] | GUARD | MAC |
| 54. | 76590848 | [1] | NUT | MAC Superseded by part number: 15503611 |
| 55. | 76605994 | [1] | TOW HOOK | MAC- PIN |
| 56. | 76593325 | [1] | LINK CHAIN | MAC |
| 57. | 76595890 | [1] | CLIP | MAC |
| 58. | 76592989 | [4] | SCREW | MAC Superseded by part number: 120090 |
| 59. | 76605593 | [4] | LOCK WASHER | MAC Superseded by part number: 10517274 |
| 60. | 76609857 | [2] | SLIDING PAD | MACPAD |
| 61. | 76606133 | [4] | LOCK WASHER | MAC |
