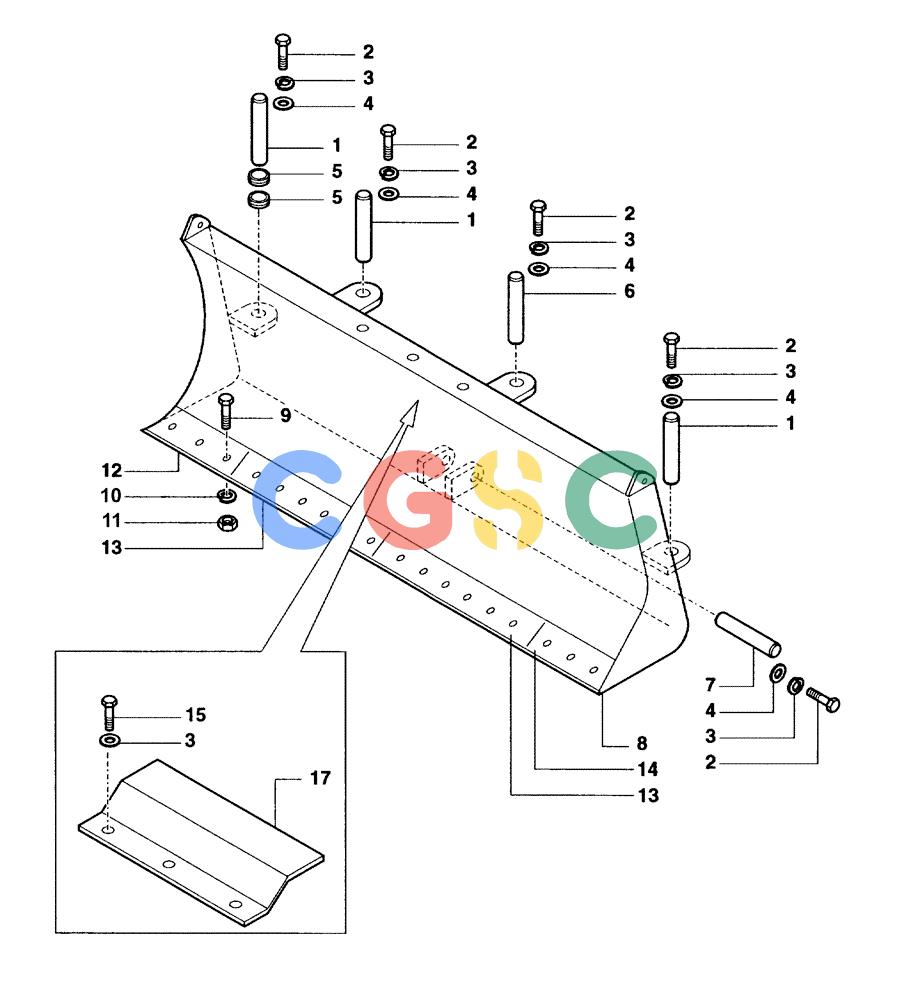

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (9.260[01E]) - DOZER BLADE OPTIONAL - 3300 MM - DC100 LGP S/N 13115000 & DOWN New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
234 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76591133 | [3] | PIN | MAC |
| 2. | 76591134 | [5] | SCREW | MAC Superseded by part number: 11112124 |
| 3. | 76595963 | [8] | GASKET | MAC Superseded by part number: 76590727 |
| 4. | 76591117 | [5] | WASHER | CMI |
| 5. | 76591137 | [8] | SPACER | MAC |
| 6. | 76590734 | [1] | PIN | MAC |
| 7. | 76598264 | [1] | PIN | MAC |
| 8. | 76606067 | [1] | DOZER BLADE | MAC |
| 9. | 76591141 | [22] | SCREW | MAC Superseded by part number: 12164121, 8283258 |
| 10. | 76590723 | [22] | LOCK WASHER | MAC Superseded by part number: 10517274 |
| 11. | 76591143 | [22] | NUT | MAC Superseded by part number: 12164121, 8283258 |
| 12. | 76598267 | [1] | CUTTING EDGE | MAC- RH |
| 13. | 76606068 | [2] | CUTTING EDGE | MAC- MIDDLE |
| 14. | 76598270 | [1] | CUTTING EDGE | MAC- LH |
| 15. | 76590733 | [3] | SCREW | MAC Superseded by part number: 11112424 |
| 17. | 76598271 | [1] | SHIELD | MAC |
