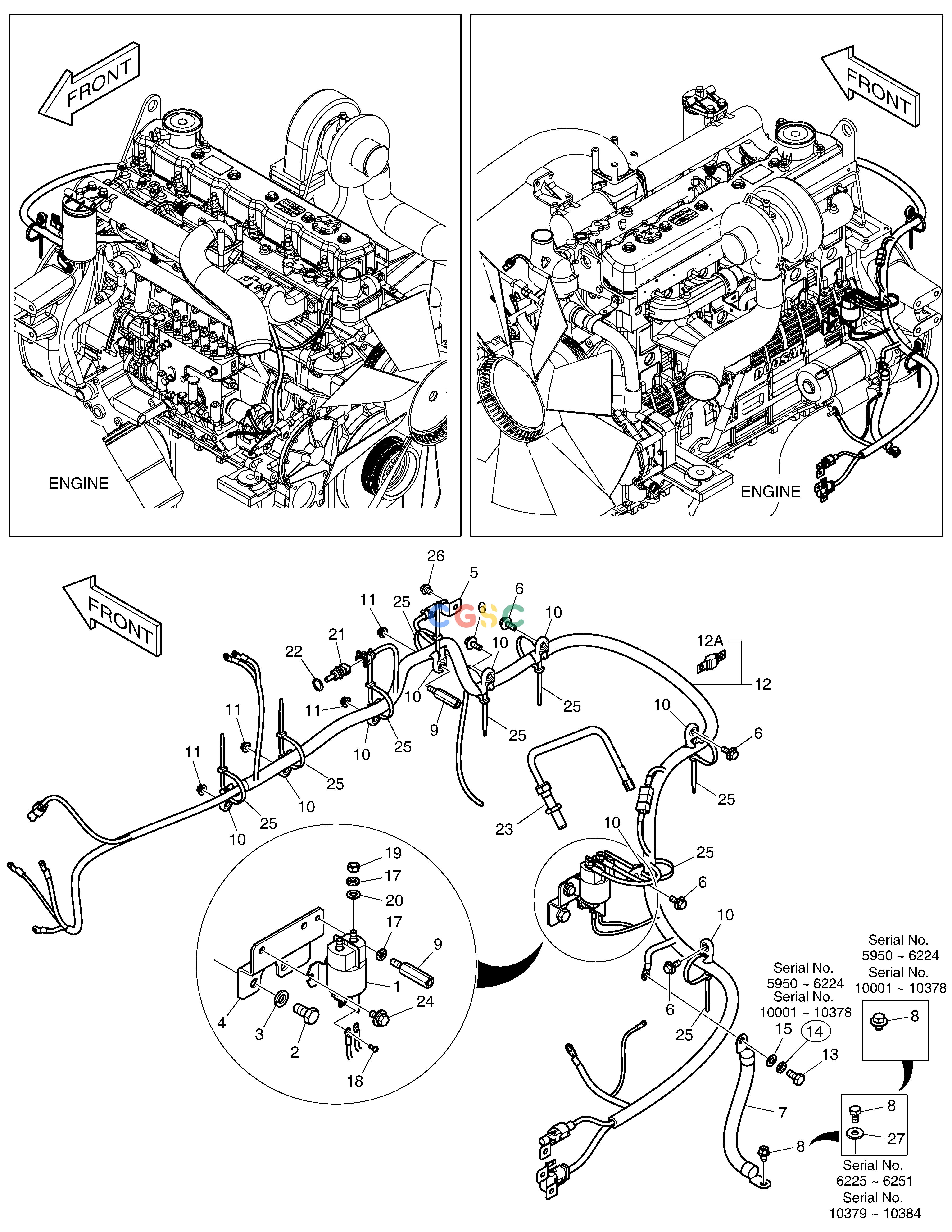

斗山零件查询ELECTRIC PARTS - ENGINE DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
456 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-01186
|
[-] |
|
|
| 1. |
301202-00067
|
[1] |
RELAY,PRE HEATER
|
|
| 10. |
110420-00330
|
[9] |
BRACKET
|
|
| 11. |
2121-1305
|
[4] |
NUT
|
|
| 12. |
310207-02770A
|
[1] |
|
|
| 12A. |
300803-00086
|
[1] |
|
|
| 13. |
S0511753
|
[1] |
BOLT M10X1.5X18
|
|
| 13. |
S0511953
|
[1] |
BOLT
|
|
| 14. |
S5102603
|
[1] |
. WASHER
|
|
| 15. |
120804-00076
|
[1] |
WASHER
|
|
| 15. |
S5010613
|
[1] |
WASHER
|
|
| 17. |
S5102503
|
[3] |
. WASHER
|
|
| 18. |
S3450573
|
[2] |
SCREW
|
|
| 19. |
S4012533
|
[2] |
NUT
|
|
| 2. |
S0686151
|
[2] |
BOLT M12X1.5X25
|
|
| 20. |
S5010513
|
[2] |
WASHER
|
|
| 21. |
2547-9038B
|
[1] |
SENSOR,WATER TEMP
|
|
| 22. |
S8180251
|
[1] |
PACKING
|
|
| 23. |
2547-1015
|
[1] |
SENSOR;ENG SPEED
|
|
| 24. |
DS0025033
|
[2] |
BOLT
|
|
| 25. |
310101-00035
|
[9] |
TIE,CABLE
|
|
| 26. |
K1001029
|
[1] |
BOLT
|
|
| 27. |
120804-00078
|
[1] |
WASHER
|
|
| 3. |
S5102703
|
[2] |
WASHER
|
|
| 4. |
110406-01246
|
[1] |
|
|
| 5. |
2197-1661
|
[1] |
BRACKET
|
|
| 6. |
DS0025049
|
[5] |
BOLT M8x1.25x25
|
|
| 7. |
553-00001D2
|
[1] |
CABLE;ENGINE EARTH
|
|
| 8. |
120106-00701
|
[1] |
BOLT
|
|
| 8. |
2120-2196D1
|
[1] |
BOLT;SET M10X1.5X20
|
|
| 8. |
S0511866
|
[1] |
BOLT
|
|
| 9. |
120117-00073
|
[2] |
|
|
