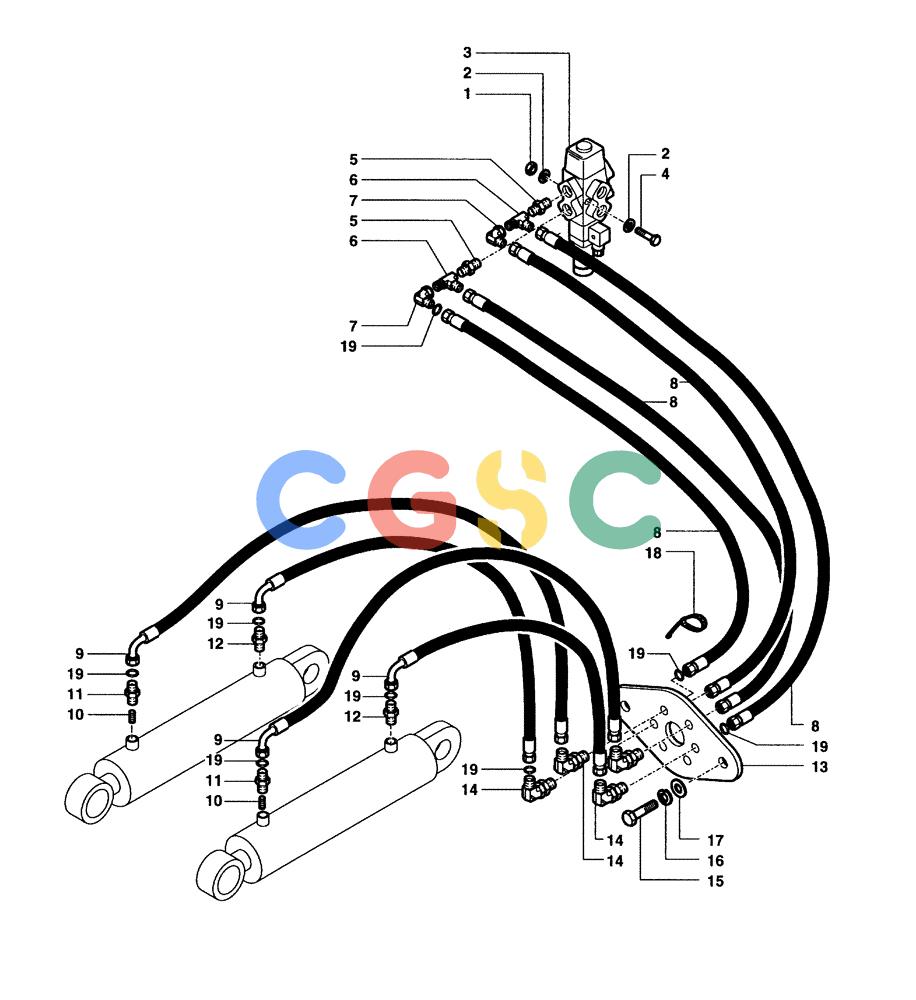

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (9.500[03E]) - RIPPER CIRCUIT (DC100 STD S/N 13111162 & DOWN; LGP S/N 13115028 & DOWN) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
737 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76590934 | [2] | NUT | MAC Superseded by part number: 12574221 |
| 2. | 76590873 | [4] | WASHER | MAC Superseded by part number: 10519404 |
| 3. | 76595905 | [1] | HYDRAULIC VALVE | MAC- DIVERTER VALVE |
| 4. | 76595906 | [1] | SCREW | MAC |
| 5. | 76591181 | [2] | HYD CONNECTOR | MAC |
| 6. | 76595707 | [2] | PISTON SWIVEL HEAD | TORSWIVEL HEAD PISTON Superseded by part number: 76595907 |
| 7. | 76591193 | [2] | HYD CONNECTOR | MAC |
| 8. | 76595909 | [4] | FLEXIBLE HOSE | MAC |
| 9. | 76595908 | [4] | FLEXIBLE HOSE | MAC |
| 10. | 76595910 | [2] | SCREW | MAC |
| 11. | 76595911 | [2] | HYD CONNECTOR | MAC |
| 12. | 76590982 | [2] | HYD CONNECTOR | MAC |
| 13. | 76595912 | [1] | COVER | MAC |
| 14. | 76595913 | [4] | HYD CONNECTOR | MAC |
| 15. | 76590845 | [2] | SCREW | MAC |
| 16. | 76590721 | [2] | LOCK WASHER | MAC |
| 17. | 76590713 | [2] | WASHER | MAC Superseded by part number: 14496621 |
| 18. | 76595914 | [2] | CLAMP | MAC |
| 19. | 76596045 | [16] | SEAL | MACO'RING |
