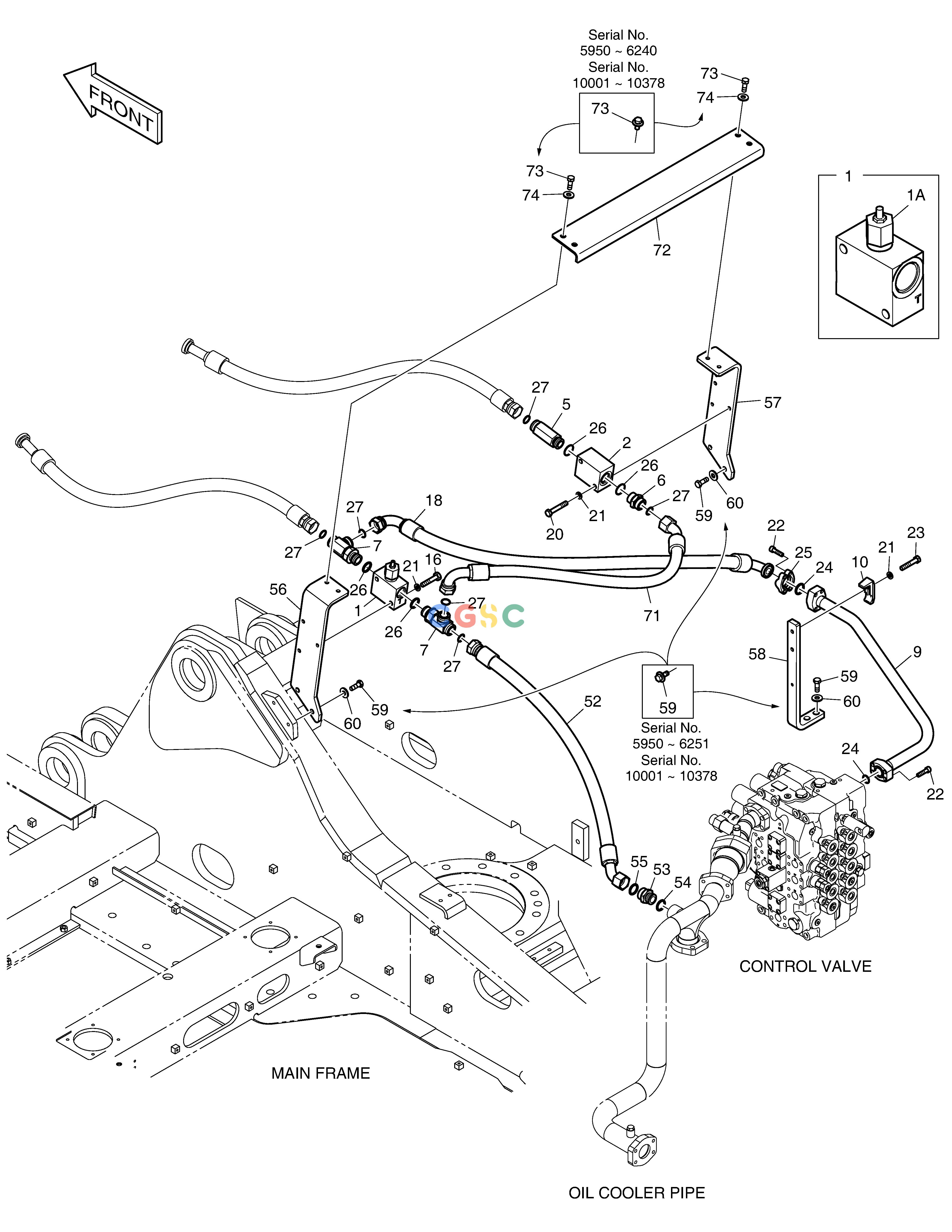

斗山零件查询MAIN PIPING - ONE WAY DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
793 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-00341
|
[-] |
|
|
| 1. |
426-00267B
|
[1] |
VALVE,RELIEF
|
|
| 10. |
2124-1026D3
|
[1] |
CLAMP;PIPE
|
|
| 16. |
S0561066
|
[2] |
BOLT
|
|
| 18. |
DS2026123
|
[1] |
HOSE
|
|
| 1A. |
410127-00078
|
[1] |
|
|
| 2. |
423-00193B
|
[1] |
BLOCK
|
|
| 20. |
S0561266
|
[2] |
BOLT
|
|
| 21. |
S5102703
|
[5] |
WASHER
|
|
| 22. |
S2212466
|
[8] |
BOLT
|
|
| 23. |
S0561066
|
[1] |
BOLT
|
|
| 24. |
2180-1026D19
|
[2] |
O-RING
|
DS2856003
|
| 24. |
DS2856003
|
[2] |
O-RING
|
|
| 25. |
2181-9078
|
[2] |
FLANGE;SPLIT
|
|
| 26. |
S8000291
|
[4] |
O-RING
|
|
| 27. |
S8030161
|
[6] |
O-RING
|
|
| 5. |
DS2232107
|
[1] |
ADAPTER
|
|
| 52. |
DS2012253
|
[1] |
HOSE
|
|
| 53. |
2181-4133D6
|
[1] |
ADAPTER
|
|
| 54. |
S8000291
|
[1] |
O-RING
|
|
| 55. |
S8030161
|
[1] |
O-RING
|
|
| 56. |
195-03435B
|
[1] |
BRACKET
|
|
| 57. |
195-03436B
|
[1] |
BRACKET
|
|
| 58. |
K1004829B
|
[1] |
|
|
| 59. |
DS0025020
|
[6] |
BOLT
|
|
| 59. |
S0515366
|
[6] |
BOLT
|
|
| 6. |
2181-4133D6
|
[1] |
ADAPTER
|
|
| 60. |
120804-00079
|
[6] |
WASHER
|
|
| 7. |
181-00121D8
|
[2] |
TEE
|
|
| 71. |
DS2021252
|
[1] |
|
|
| 72. |
K1006393B
|
[1] |
|
|
| 73. |
DS0025018
|
[4] |
BOLT
|
|
| 73. |
S0515066
|
[4] |
BOLT
|
|
| 74. |
120804-00079
|
[4] |
WASHER
|
|
| 9. |
K1004828A
|
[1] |
PIPE
|
|
| 9. |
420207-03851
|
[1] |
|
|
