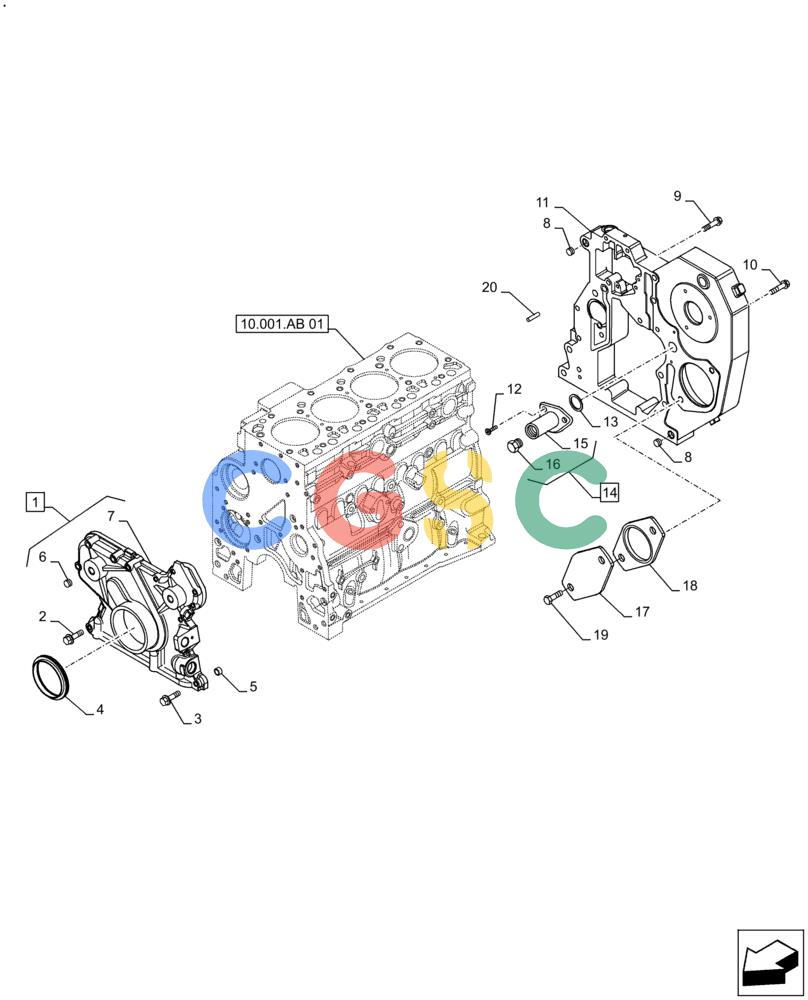

神钢零件查询(F4GE9484A J613) - ENGINE 5801920069 - 47681264 (1/14-12/14) (10.102.AK) - CRANKCASE, COVERS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
606 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4897026 | [1] | COVER | TORASSY, Incl 6, 7 |
| 2. | 4899078 | [5] | SCREW,Hex Flg, M8 x 1.25 x 45 | TOR |
| 3. | 4899063 | [8] | SCREW,Hex Flg, M8 x 1.25 x 30 | TOR |
| 5. | 4891209 | [2] | DOWEL,M13 x 8 L | TOR |
| 6. | 2852208 | [2] | INSERT | TOR Superseded by part number: |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONCover, Incl in 1 |
| 8. | 4899026 | [2] | DOWEL,M18 x 10 | TOR |
| 9. | 4899091 | [4] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BAS |
| 10. | 4899093 | [5] | BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC | BAS Superseded by part number: 87778358 |
| 10. | 4899073 | [1] | SCREW,Hex Flg, M12 x 1.75 x 30 | TOR |
| 12. | 4895355 | [2] | SCREW,M5 x 0.8 x 17mm, Cl 8.8 | TOR |
| 13. | 2852519 | [1] | O-RING,M21.95 ID x 1.78 Thk | TOR Superseded by part number: 17278781 |
| 14. | 2855287 | [1] | HOUSING | TORASSY, Incl 15, 16 |
| 17. | 2852175 | [1] | COVER | TOR Superseded by part number: 504049033 |
| 18. | 4896897 | [1] | GASKET,1.35mm Thk | TOR |
| 19. | 4899037 | [2] | SCREW | TOR Superseded by part number: 16677735 |
| 20. | 4899126 | [2] | THREADED INSERT | SM Superseded by part number: 17873571 |
